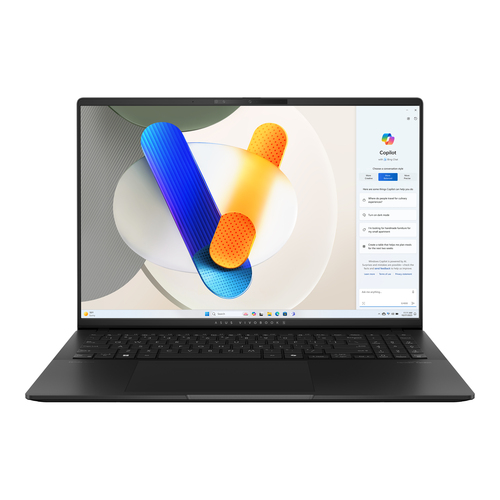

ASUS Vivobook S16 OLED S5606MA-MX163X laptop Intel Core Ultra 9 185H

Vivobook S16 OLED S5606MA-MX163X laptop Intel Core Ultra 9 185H

40.6 cm (16") 3.2K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Black Ge

Model S5606MA-MX163XEAN 4711387602737

108 specifications Checked today

Display40.6 cm (16")
Resolution3200 x 2000 pixels
ProcessorIntel Core Ultra 9
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3200 x 2000 pixels
Processor: Intel Core Ultra 9
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5606MA-MX163X
Part number: S5606MA-MX163X
EAN / UPC: 4711387602737
Also known as: ASUS Vivobook S16 OLED S5606MA-MX163X laptop Intel Core Ultra 9 185H 40.6 cm (16") 3.2K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Black Ge

Specifications

108 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3200 x 2000 pixels
HD type	3.2K
Panel type	OLED
Native aspect ratio	16:10
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	133%
Display diagonal (metric)	40.6 cm
RGB colour space	sRGB
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor model	185H
Processor cores	16
Processor threads	22
Processor boost frequency	5.1 GHz
Processor frequency	2.3 GHz
Performance cores	8
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.3 GHz
Efficient-core base frequency	1.8 GHz
Low Power Efficient-core Base Frequency	1 MHz
Processor cache	24 MB
Processor cache type	Smart Cache

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy cover

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Headphone outputs	1
Combo headphone/mic port	Yes

Performance

Specification	Value
Repairability index	8.1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Trial software	McAfee, Microsoft 365

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter output current	4.5 A
AC adapter output voltage	20 V

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH, RoHS
Certification	US MIL-STD 810H

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	353.6 mm
Depth	246.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging data

Specification	Value
Package width	65 mm
Package depth	488 mm
Package height	310 mm
Package weight	1.75 kg
