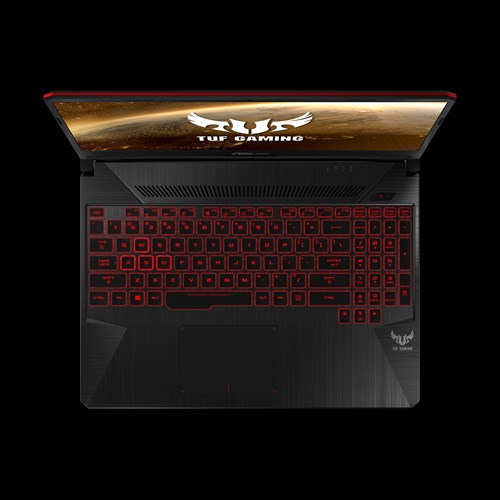

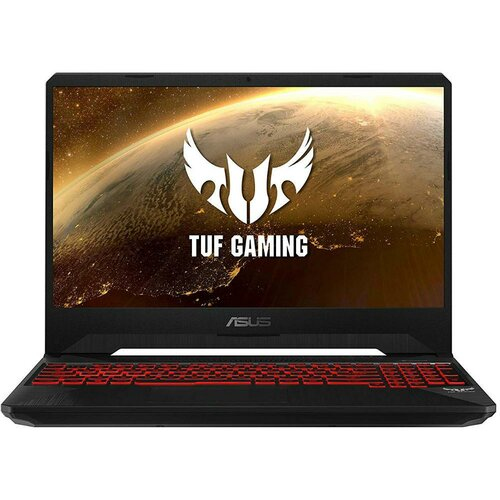

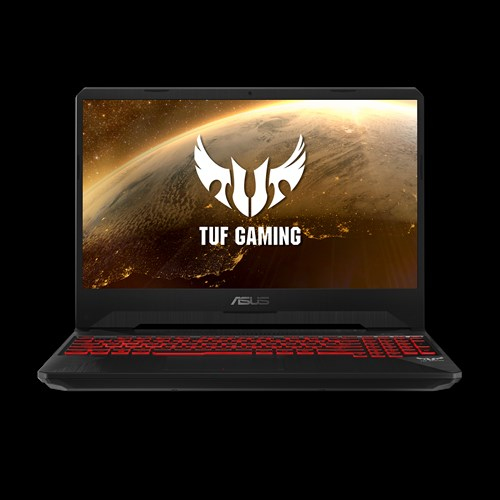

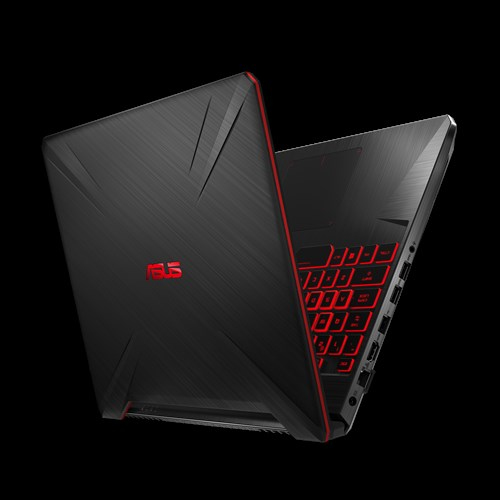

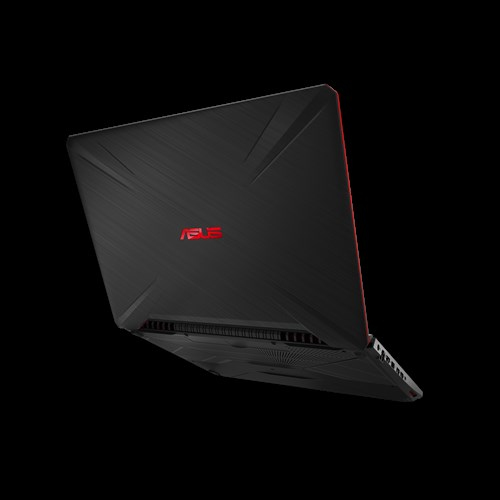

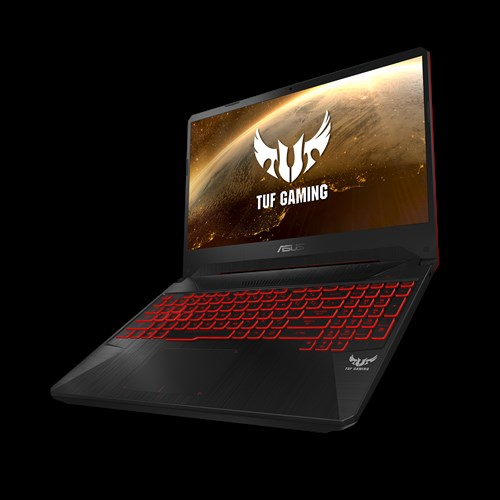

ASUS TUF Gaming FX505DY-AL025 laptop AMD Ryzen™ 5 3550H

TUF Gaming FX505DY-AL025 laptop AMD Ryzen™ 5 3550H

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1 TB HDD AMD Radeon RX 560X Wi-Fi 5 (802.11ac) Black

Model FX505DY-AL025EAN 4718017224208

101 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage1 TB
GraphicsAMD Radeon RX 560X

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon RX 560X

Brand: ASUS
Category: Laptop
Model: FX505DY-AL025
Part number: FX505DY-AL025
EAN / UPC: 4718017224208
Also known as: ASUS TUF Gaming FX505DY-AL025 laptop AMD Ryzen™ 5 3550H 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1 TB HDD AMD Radeon RX 560X Wi-Fi 5 (802.11ac) Black

Specifications

101 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Dual-screen	No
NTSC coverage (typical)	45%

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 3000 Series
Processor model	3550H
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor lithography	12 nm
Thermal Design Power (TDP)	35 W
Tjunction	105 °C

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon RX 560X
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	AMD Radeon Vega Graphics
On-board graphics card model	AMD Radeon Vega 8
On-board graphics card base frequency	1200 MHz
AMD FreeSync	Yes

Audio

Specification	Value
Audio system	DTS Headphone: X
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
ExpressCard slot	No

Performance

Specification	Value
Repairability index	5.2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Various
Full-size keyboard	Yes
Windows keys	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	48 Wh

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.32 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Certification	UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, CB, JATE

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	360.4 mm
Depth	262 mm
Height (front)	2.58 cm
Height (rear)	2.68 cm
