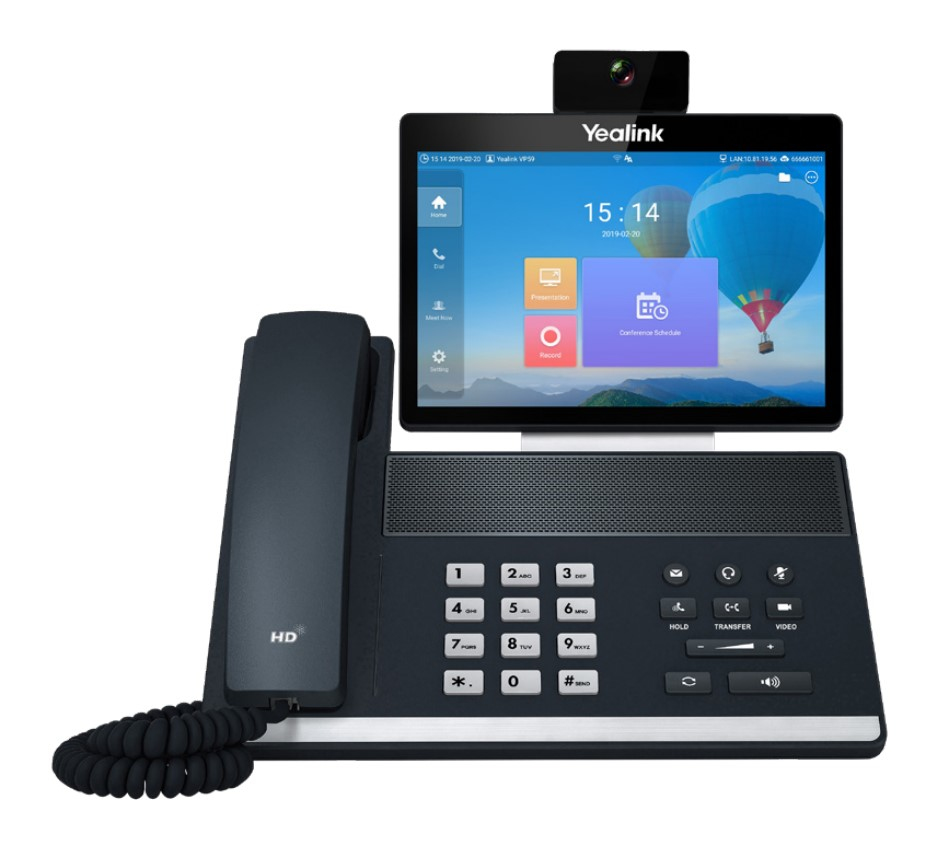

VP59-VCS Edition
Model VP59-VCS EditionPart no. YLN0012AEAN 6938818303638
76 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- TypeIP Phone
- OSAndroid
- ColourBlack
- Answering machineYes
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Type
- IP Phone
- OS
- Android
- Colour
- Black
- Answering machine
- Yes
- Brand
- Yealink
- Category
- IP Phone
- Model
- VP59-VCS Edition
- Part number
- YLN0012A
- EAN / UPC
- 6938818303638
- Also known as
- Yealink VP59-VCS Edition IP phone Black IPS Wi-Fi
Specifications
76 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Backlight keypad | Yes |
| Keypad illumination | Yes |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | Android 7.1 |
Phone features
| Specification | Value |
|---|---|
| Answering machine | Yes |
| Call log entries | 500 |
| Synchronized call logs | Yes |
| Call history | Yes |
| Call waiting | Yes |
| Do not disturb function | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
| Volume control | Buttons |
| Base station keys | Headset, mute, video, redial, speakerphone |
| Plug and Play | Yes |
Display
| Specification | Value |
|---|---|
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Number of simultaneous touchpoints | 10 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Horizontal field of view | 84° |
| Vertical field of view | 54° |
| Camera privacy shutter | Yes |
| Picture-in-Picture | Yes |
Audio
| Specification | Value |
|---|---|
| Microphone mute | Yes |
| Automatic gain control | Yes |
| Comfort noise generation (CNG) | Yes |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice codecs | AGC, AJB, CNG, G.711, G.722.1, G.722.1C, OPUS, PLC |
Video
| Specification | Value |
|---|---|
| Video call | Yes |
| Video resolutions | 1920 x 1080 pixels |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| DHCP client | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Security algorithms | 256-bit AES, HTTPS, SRTP, TLS |
| VoIP protocols | H.323/SIP • Dual stream protocol: H.239 (H.323)/BFCP (SIP) • FECC: H.224/H.281, Sony VISCA and PELCO D/P • H.323 protocol suite: H.245, H.225, H.235, H.241 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Cable lock slot | Yes |
| HDMI ports quantity | 1 |
| RJ-9 ports quantity | 2 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Sustainability compliance | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| USB output current | 0.5 A |
| Power consumption (typical) | 9 W |
| Power consumption (Power over Ethernet (PoE)) | 10.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 273 mm |
| Depth | 226 mm |
| Height | 285 mm |
| Package width | 336 mm |
| Package depth | 364 mm |
| Package height | 112 mm |
Packaging content
| Specification | Value |
|---|---|
| Ethernet cable | Yes |
| Handset | Yes |
| Number of handles included | 1 pc(s) |
| Quick start guide | Yes |
| Stand included | Yes |
