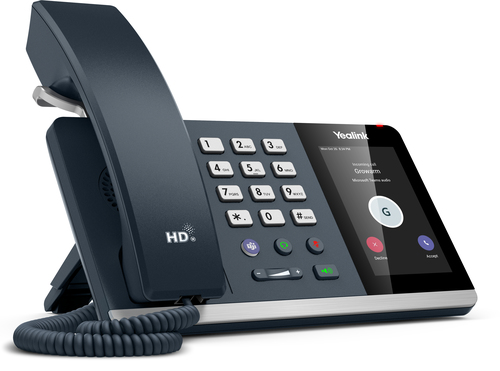

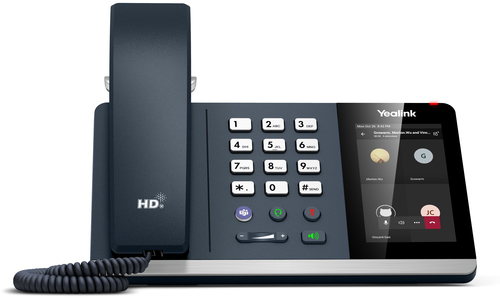

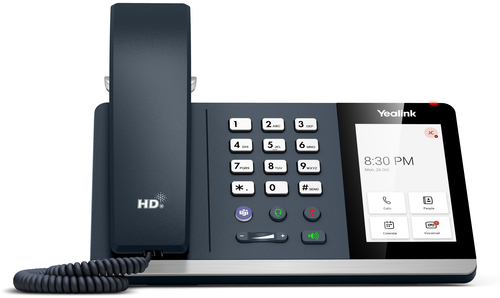

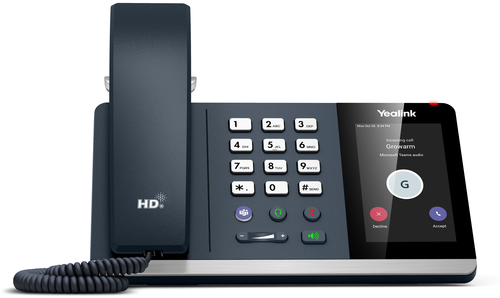

MP54 Skype for Business Edition
Model MP54 Skype for Business EditionPart no. 1301206EAN 841885103512
76 specifications
- Display10.2 cm (4")
- Resolution800 x 480 pixels
- TypeIP Phone
- OSAndroid
- ColourGrey
- Common area phone (CAP)Yes
Overview
- Display
- 10.2 cm (4")
- Resolution
- 800 x 480 pixels
- Type
- IP Phone
- OS
- Android
- Colour
- Grey
- Common area phone (CAP)
- Yes
- Brand
- Yealink
- Category
- IP Phone
- Model
- MP54 Skype for Business Edition
- Part number
- 1301206
- EAN / UPC
- 841885103512, 6938818307780
- Also known as
- Yealink MP54 Skype for Business Edition
Specifications
76 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Grey |
| Device lock | Yes |
| Mounting | Desk |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 9.0 |
| Hearing aid compatibility | Yes |
| Compatible products | Skype for Business |
Phone features
| Specification | Value |
|---|---|
| Common area phone (CAP) | Yes |
| Hot desking | Yes |
| Call forwarding | Yes |
| Call hold | Yes |
| Call transfer | Yes |
| Emergency call | Yes |
| Full duplex | Yes |
| Message-waiting indicator (MWI) | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
| Firmware upgradeable | Yes |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Display diagonal | 10.2 cm (4") |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Number of simultaneous touchpoints | 5 |
| Graphical user interface (GUI) language | Multi |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Microphone mute | Yes |
| Comfort noise generation (CNG) | Yes |
| Echo cancellation | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice codecs | AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, OPUS, PLC, Silk, VAD, iLBC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| DHCP client | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, TLS |
| Supported network protocols | IPv4/IPv6, SNTP |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Cable lock slot | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, ISO 9001, CCC, REACH |
| Skype | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| USB output current | 0.5 A |
| Power consumption (typical) | 5.3 W |
| Power consumption (Power over Ethernet (PoE)) | 6.8 W |
| Energy saving mode | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 159 mm |
| Height | 127 mm |
| Package width | 188 mm |
| Package depth | 529 mm |
| Package height | 261 mm |
Packaging content
| Specification | Value |
|---|---|
| Base station | Yes |
| Cables included | LAN (RJ-45) |
| Number of handles included | 1 pc(s) |
| Stand included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
| Master (outer) case gross weight | 5.3 kg |
| Master (outer) case height | 529 mm |
| Master (outer) case length | 261 mm |
| Master (outer) case net weight | 4.8 kg |
| Master (outer) case width | 188 mm |
| Products per master (outer) case | 5 pc(s) |
