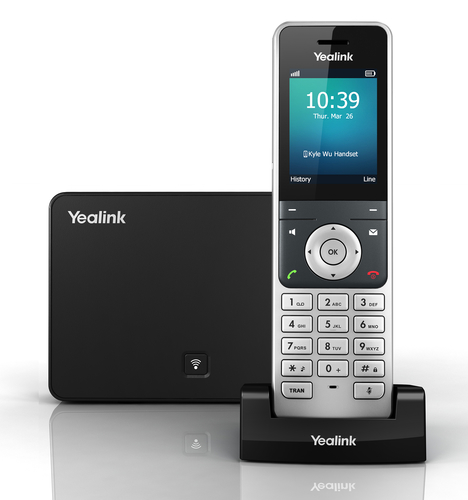

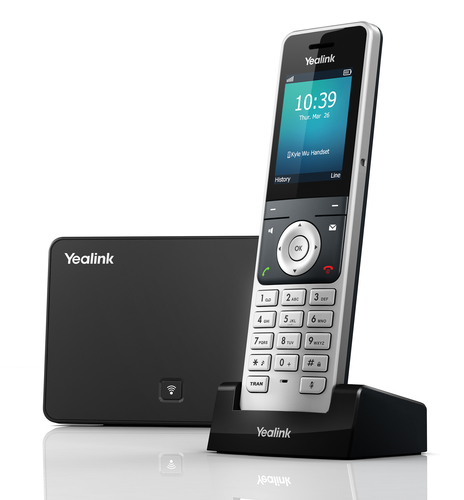

SIP-W56P IP phone Black, Silver 5 lines LCD
Model SIP-W56PPart no. 1302003EAN 688474341005
74 specifications
- Display6.1 cm (2.4")
- Resolution240 x 320 pixels
- TypeIP Phone
- Weight7.8 kg
- ColourBlack, Silver
- DECT connectableYes
Overview
- Display
- 6.1 cm (2.4")
- Resolution
- 240 x 320 pixels
- Type
- IP Phone
- Weight
- 7.8 kg
- Colour
- Black, Silver
- DECT connectable
- Yes
- Brand
- Yealink
- Category
- IP Phone
- Model
- SIP-W56P
- Part number
- 1302003
- EAN / UPC
- 688474341005, 841885100306, 6938818301344
- Also known as
- Yealink SIP-W56P IP phone Black, Silver 5 lines LCD
Specifications
74 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wireless handset |
| Product colour | Black, Silver |
| Backlight keypad | Yes |
| Device lock | Yes |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| DECT connectable | Yes |
| Maximum indoor range | 50 m |
| Maximum outdoor range | 300 m |
Phone features
| Specification | Value |
|---|---|
| Lines quantity | 5 lines |
| Answering machine | Yes |
| Anonymous call | Yes |
| Anonymous call rejection | Yes |
| Call forwarding | Yes |
| Call hold | Yes |
| Call transfer | Yes |
| Call waiting | Yes |
| Caller ID | Yes |
| Conference call | Yes |
| Do not disturb function | Yes |
| Full duplex | Yes |
| Intercom | Yes |
| Message-waiting indicator (MWI) | Yes |
| Multi handset capability | 5 |
| Number of VoIP accounts | 5 |
| Phonebook capacity | 500 entries |
| Phonebook sharing | Yes |
| Redialing | Yes |
| Speed dialling | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
| Volume control | Digital |
| Keypad number of keys | 12 |
| Number of function keys | 6 |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Display diagonal | 6.1 cm (2.4") |
| Display resolution | 240 x 320 pixels |
| Touchscreen | No |
| Backlight display | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Microphone mute | Yes |
| Number of melodies | 9 |
| Voice codecs | CNG, G.711, G.711a, G.722, G.723, G.726, G.727, G.729, VAD, iLBC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| DHCP client | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Security algorithms | AES, MD5, SIPS, SRTP, SSL/TLS |
Ports & interfaces
| Specification | Value |
|---|---|
| Headset connectivity | 3.5 mm |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Standby time | 400 h |
| Talk time | 30 h |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.8 kg |
| Handset dimensions (WxDxH) | 175 x 53 x 20.3 mm |
| Base dimensions (WxDxH) | 153.5 x 108.5 x 45 mm |
| Package width | 203 mm |
| Package depth | 196 mm |
| Package height | 95 mm |
| Package weight | 8.7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Charger | Yes |
| Number of DECT wireless handsets | 5 |
| Number of handles included | 1 pc(s) |
