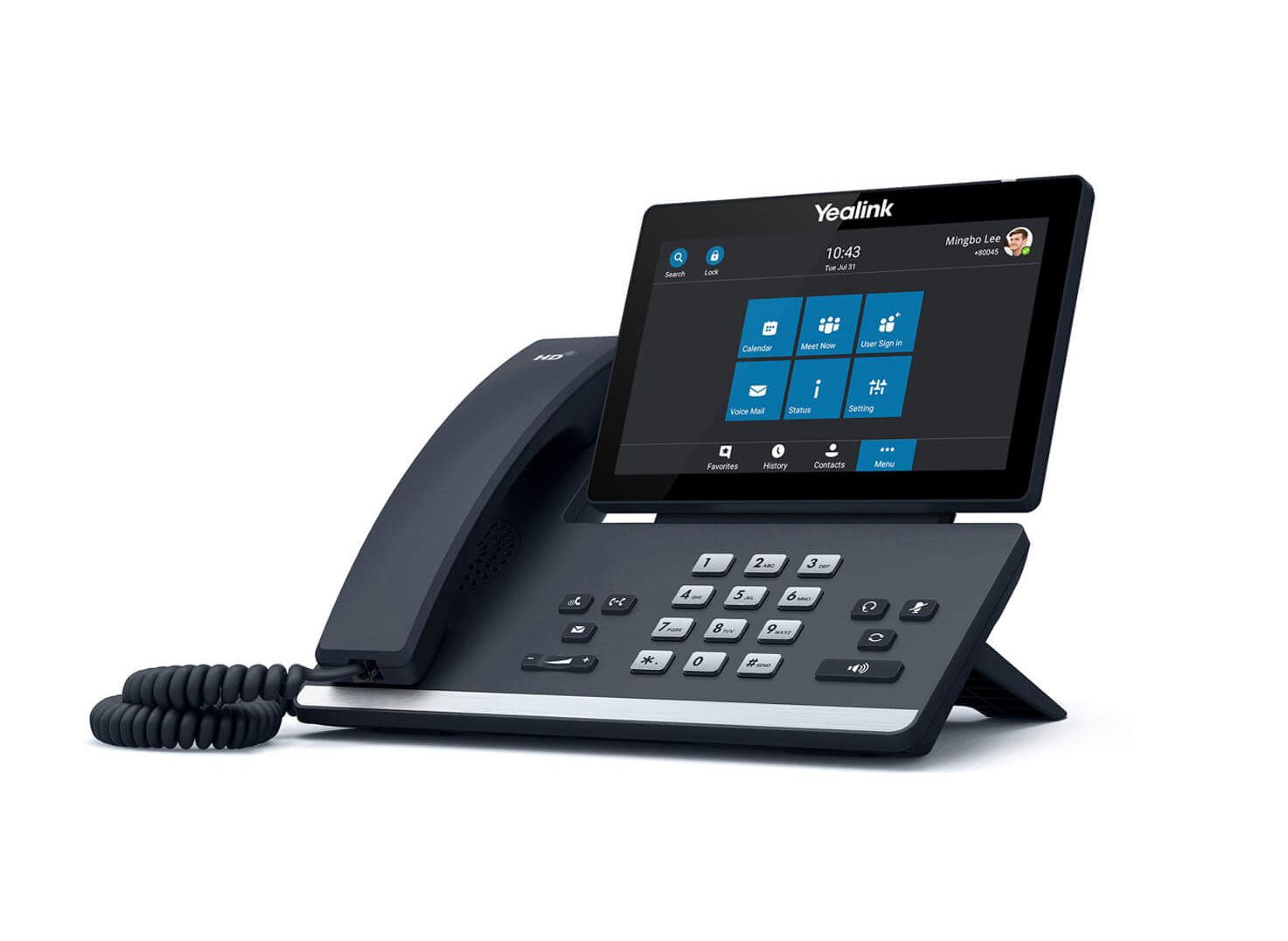

SIP-T56A (SFB)
Model SIP-T56A (SFB)Part no. T56ASFBEAN 6938818303324
57 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- TypeIP Phone
- ColourBlack
- Dual-Tone Multi-Frequency (DTMF) modesIn-band, Out-of band, SIP info
- Call forwardingYes
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Type
- IP Phone
- Colour
- Black
- Dual-Tone Multi-Frequency (DTMF) modes
- In-band, Out-of band, SIP info
- Call forwarding
- Yes
- Brand
- Yealink
- Category
- IP Phone
- Model
- SIP-T56A (SFB)
- Part number
- T56ASFB
- EAN / UPC
- 6938818303324
- Also known as
- Yealink SIP-T56A (SFB) IP phone Black
Specifications
57 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Device lock | Yes |
Performance
| Specification | Value |
|---|---|
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
Phone features
| Specification | Value |
|---|---|
| Call forwarding | Yes |
| Call history | Yes |
| Call hold | Yes |
| Call park | Yes |
| Call pick up | Yes |
| Call transfer | Yes |
| Call waiting | Yes |
| Caller ID | Yes |
| Do not disturb function | Yes |
| Message-waiting indicator (MWI) | Yes |
| Redialing | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Microphone mute | Yes |
| Adaptive jitter buffers | Yes |
| Automatic gain control | Yes |
| Comfort noise generation (CNG) | Yes |
| Noise reduction | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice activity detection | Yes |
| Voice codecs | G.711a, G.722, G.726, G.729A, G.729B, iLBC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Security algorithms | HTTPS, MD5, SIPS, SRTP |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
Certificates
| Specification | Value |
|---|---|
| Skype | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (typical) | 4.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 259.4 mm |
| Depth | 235.2 mm |
| Height | 194.5 mm |
| Package width | 299 mm |
| Package depth | 293 mm |
| Package height | 128 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Number of handles included | 1 pc(s) |
| Quick start guide | Yes |
