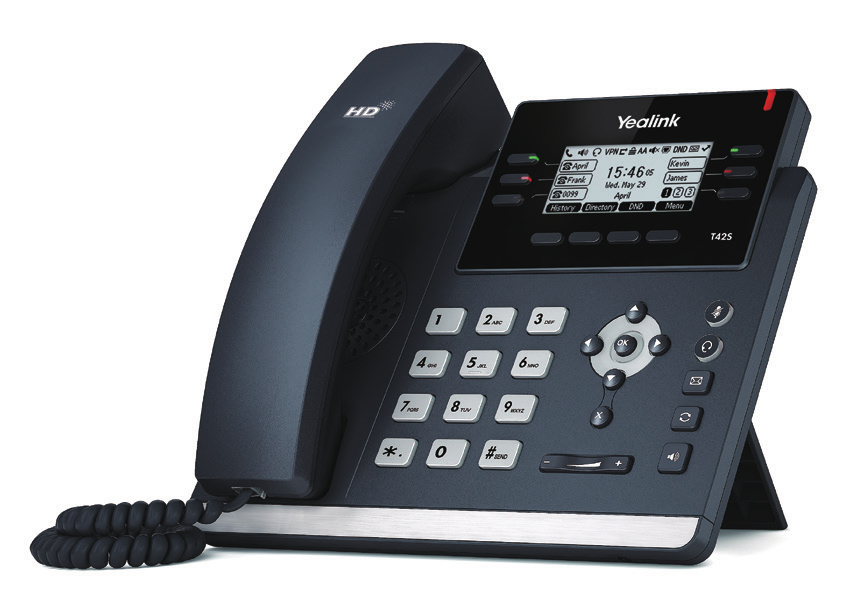

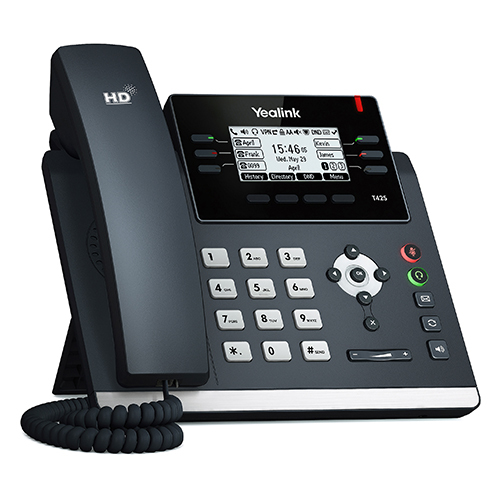

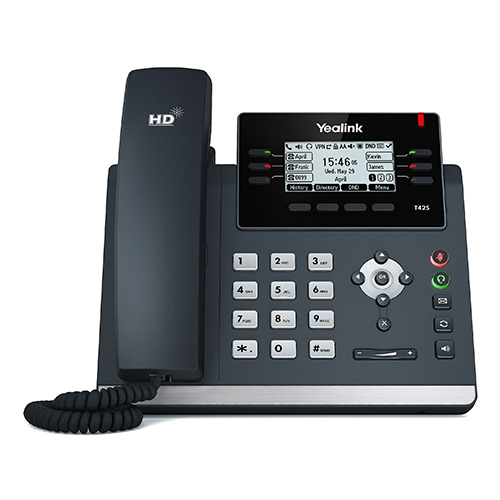

SIP-T42S IP phone Black 12 lines LCD
Model SIP-T42SPart no. T42SEAN 6938818304994
65 specifications
- Display6.86 cm (2.7")
- Resolution192 x 64 pixels
- TypeIP Phone
- ColourBlack
- Dual-Tone Multi-Frequency (DTMF) modesIn-band, Out-of band, SIP info
- Lines quantity12 lines
Overview
- Display
- 6.86 cm (2.7")
- Resolution
- 192 x 64 pixels
- Type
- IP Phone
- Colour
- Black
- Dual-Tone Multi-Frequency (DTMF) modes
- In-band, Out-of band, SIP info
- Lines quantity
- 12 lines
- Brand
- Yealink
- Category
- IP Phone
- Model
- SIP-T42S
- Part number
- T42S
- EAN / UPC
- 6938818304994, 841885100467, 841885104298, 6938818301511 +2 more
- Also known as
- Yealink SIP-T42S IP phone Black 12 lines LCD
Specifications
65 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
Phone features
| Specification | Value |
|---|---|
| Lines quantity | 12 lines |
| Answering machine | Yes |
| Anonymous call | Yes |
| Anonymous call rejection | Yes |
| Call forwarding | Yes |
| Call hold | Yes |
| Call park | Yes |
| Call pick up | Yes |
| Call return | Yes |
| Call transfer | Yes |
| Call waiting | Yes |
| Caller ID | Yes |
| Conference call | Yes |
| Do not disturb function | Yes |
| Full duplex | Yes |
| Number of VoIP accounts | 12 |
| Phonebook capacity | 1000 entries |
| Phonebook sharing | Yes |
| Redialing | Yes |
| SIP registrar server | Yes |
| Speed dialling | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
| Volume control | Digital |
| Number of programmable keys | 6 |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Display diagonal | 6.86 cm (2.7") |
| Display resolution | 192 x 64 pixels |
| Touchscreen | No |
| Backlight display | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Voice codecs | CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1.2 A |
| Energy saving mode | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 189 mm |
| Height | 175 mm |
| Package width | 246 mm |
| Package depth | 223 mm |
| Package height | 120 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Number of handles included | 1 pc(s) |
