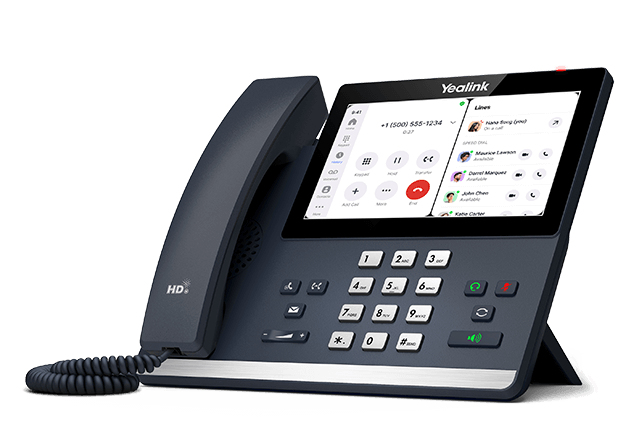

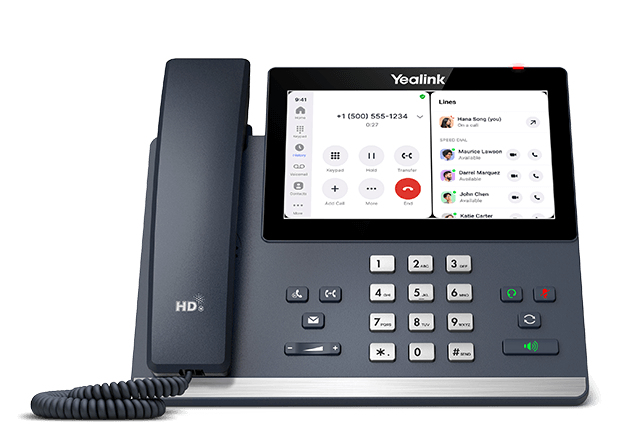

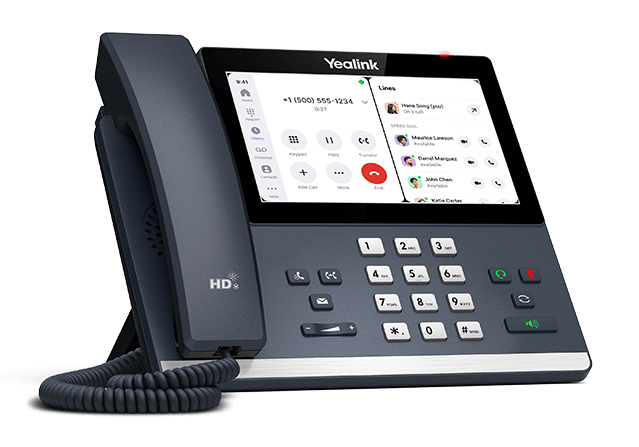

MP56 Zoom Edition
Model MP56 Zoom EditionPart no. ZOOM-MP56
63 specifications
- Display17.8 cm (7")
- TypeIP Phone
- OSAndroid
- ColourBlack
- Common area phone (CAP)Yes
- USB 2.0 ports quantity1
Overview
- Display
- 17.8 cm (7")
- Type
- IP Phone
- OS
- Android
- Colour
- Black
- Common area phone (CAP)
- Yes
- USB 2.0 ports quantity
- 1
- Brand
- Yealink
- Category
- IP Phone
- Model
- MP56 Zoom Edition
- Part number
- ZOOM-MP56
- Also known as
- Yealink MP56 Zoom Edition IP phone Black Wi-Fi
Specifications
63 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 9.0 |
| Hearing aid compatibility | Yes |
| Compatible products | Zoom/Yealink Device Management Platform |
Phone features
| Specification | Value |
|---|---|
| Common area phone (CAP) | Yes |
| Hot desking | Yes |
| Call forwarding | Yes |
| Call hold | Yes |
| Call transfer | Yes |
| Call waiting | Yes |
| Full duplex | Yes |
| Message-waiting indicator (MWI) | Yes |
| SIP registrar server | Yes |
Management features
| Specification | Value |
|---|---|
| Integrated voicemail | Yes |
| Firmware upgradeable | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Number of simultaneous touchpoints | 5 |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Microphone mute | Yes |
| Comfort noise generation (CNG) | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice codecs | AGC, AJB, CNG, G.711a, G.711u, G.722, G.723.1, G.726, G.729A, G.729B, PLC, Silk, VAD, iLBC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| DHCP client | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | HTTPS, TLS |
| Supported network protocols | IPv4/IPv6, SNTP |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Cable lock slot | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| USB output current | 0.5 A |
| Power consumption (typical) | 4.5 W |
| Power consumption (Power over Ethernet (PoE)) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250.4 mm |
| Depth | 168.7 mm |
| Height | 174.4 mm |
| Package width | 278 mm |
| Package depth | 238 mm |
| Package height | 103 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Handset | Yes |
| Number of handles included | 1 pc(s) |
| Quick start guide | Yes |
| Stand included | Yes |
