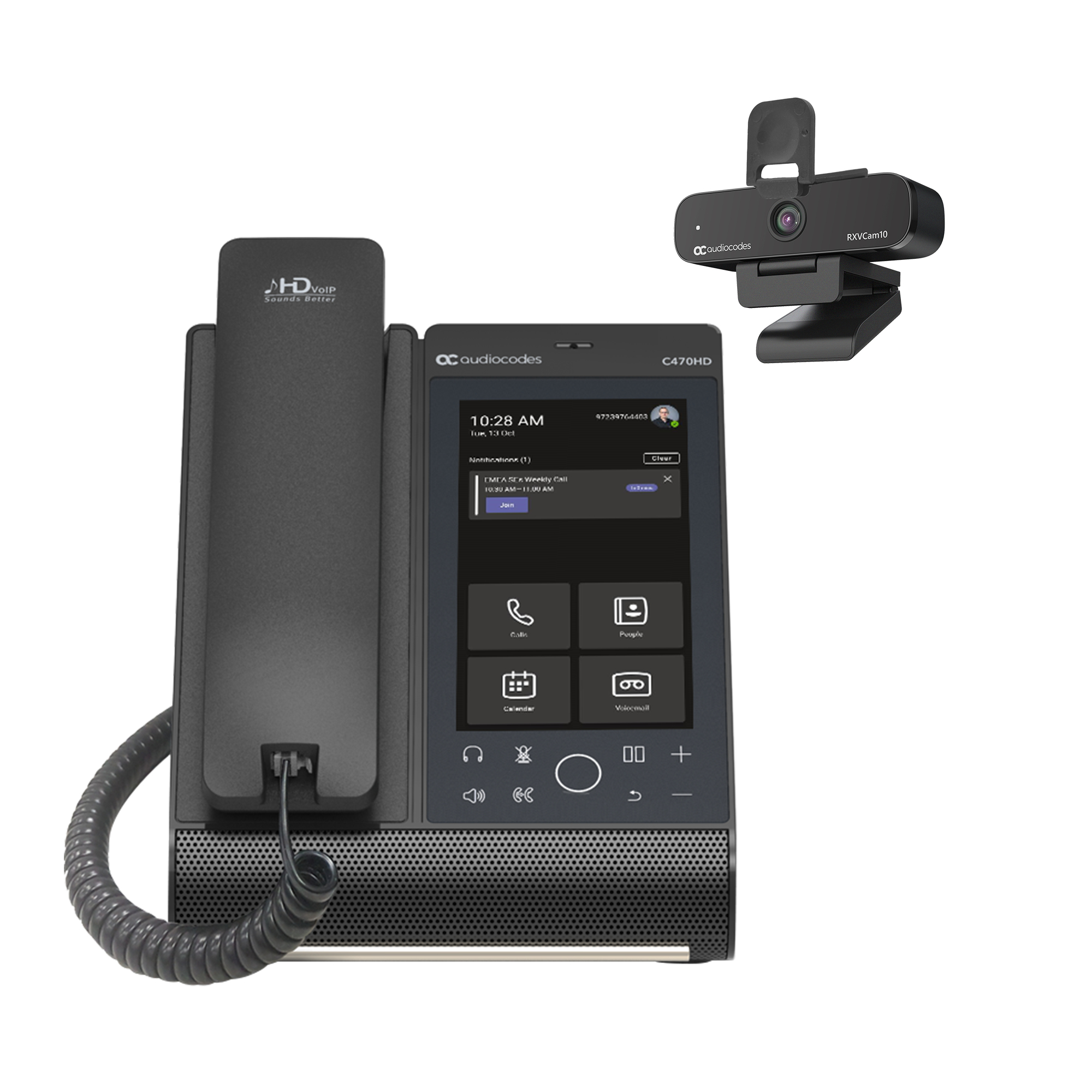

Teams C470HD IP Phone and HD Video USB Camera Bundle 17
Model RXVCAM10-B17
61 specifications
- Display14 cm (5.5")
- Resolution720 x 1280 pixels
- TypeIP Phone
- OSAndroid
- Weight1.2 kg
- ColourBlack
Overview
- Display
- 14 cm (5.5")
- Resolution
- 720 x 1280 pixels
- Type
- IP Phone
- OS
- Android
- Weight
- 1.2 kg
- Colour
- Black
- Brand
- AudioCodes
- Category
- IP Phone
- Model
- RXVCAM10-B17
- Part number
- RXVCAM10-B17
- Also known as
- AudioCodes Teams C470HD IP Phone and HD Video USB Camera Bundle 17
Specifications
61 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Mounting | Desk |
| Wall mountable | No |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 9.0 |
Phone features
| Specification | Value |
|---|---|
| Full duplex | Yes |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Display
| Specification | Value |
|---|---|
| Display | TFT |
| Display diagonal | 14 cm (5.5") |
| Display resolution | 720 x 1280 pixels |
| Touchscreen | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Horizontal field of view | 85° |
| Vertical field of view | 52° |
| Camera privacy shutter | Yes |
Audio
| Specification | Value |
|---|---|
| Speakerphone | Yes |
| Adaptive jitter buffers | Yes |
| Comfort noise generation (CNG) | Yes |
| Echo cancellation | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice activity detection | Yes |
| Voice codecs | G.711, G.722, G.729, Silk |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Security algorithms | 802.1x RADIUS, HTTPS, TLS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Cable lock slot | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 1 |
| WAN connection type | RJ-45 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 165 mm |
| Height | 230 mm |
| Weight | 1.2 kg |
| Package width | 238 mm |
| Package depth | 275 mm |
| Package height | 174 mm |
| Package weight | 1.74 kg |
Packaging content
| Specification | Value |
|---|---|
| Base station | Yes |
| Cables included | LAN (RJ-45) |
| Handset | Yes |
| Number of handles included | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 308 mm |
| Master (outer) case length | 540 mm |
| Master (outer) case net weight | 12.3 kg |
| Master (outer) case width | 490 mm |
