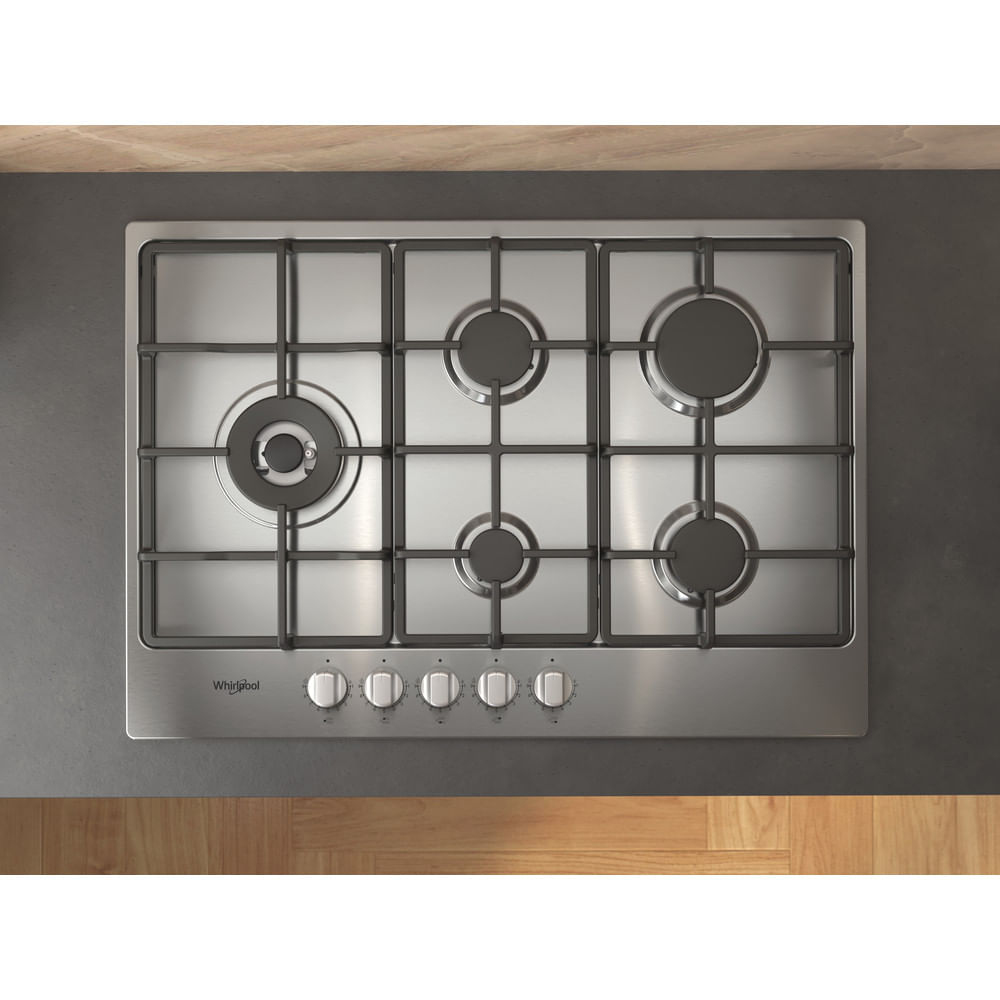

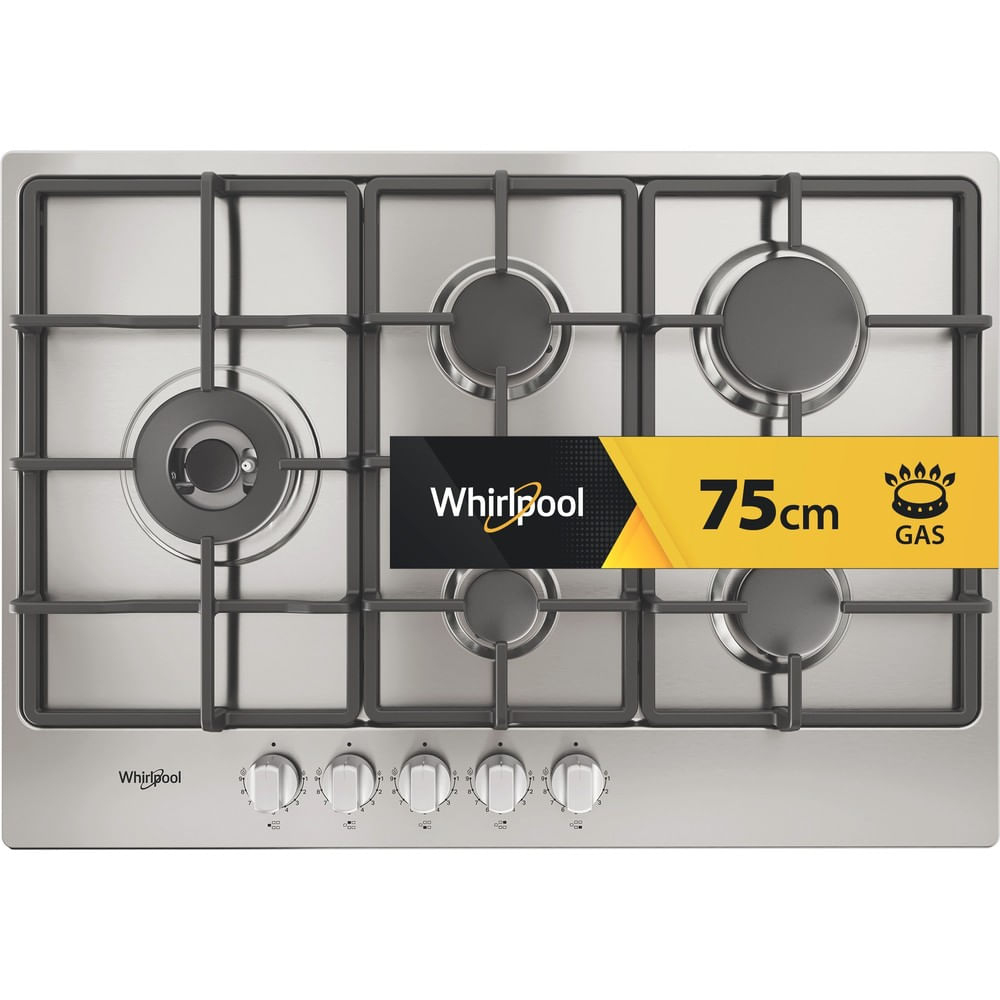

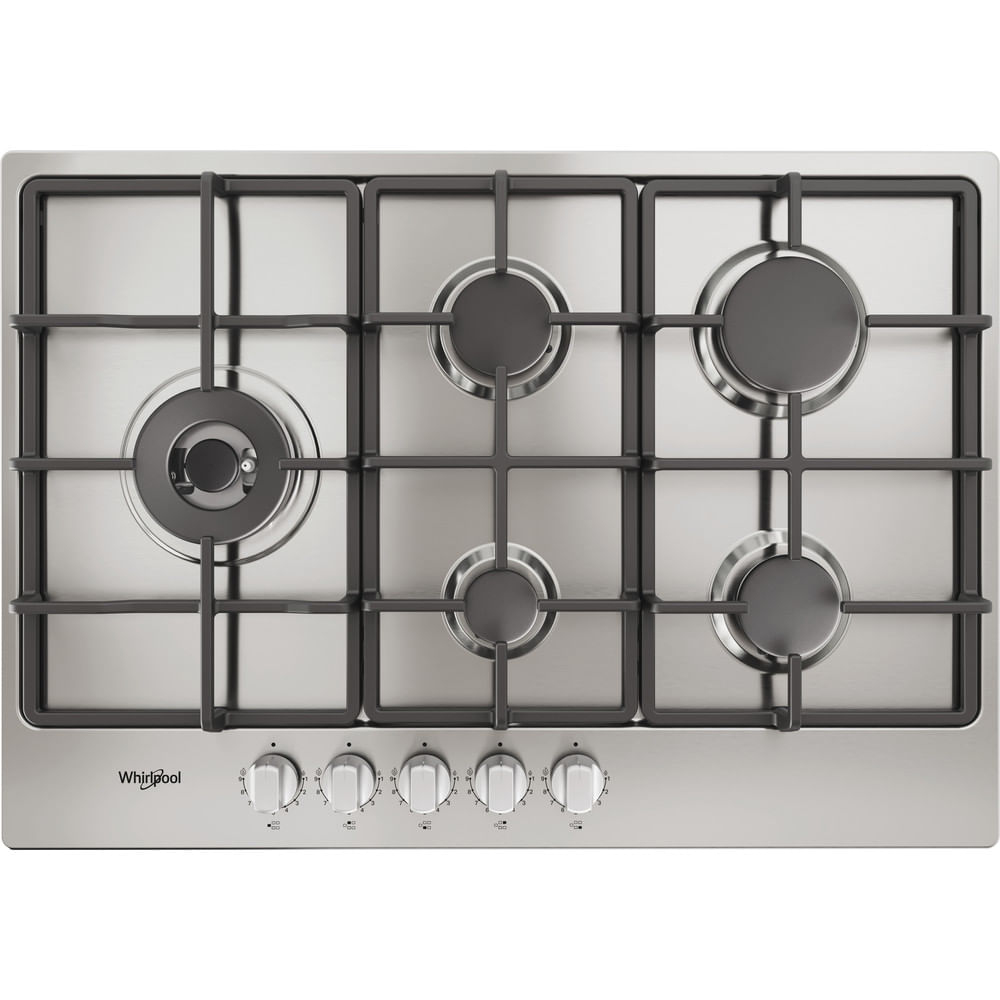

TGML 761 IX R
Model TGML 761 IX RPart no. 869991661070EAN 8003437641572
53 specifications
- Weight11.8 kg
- ColourStainless steel
- Accidental start up protectionNo
- Control typeRotary
- Connected load (electric)0 W
- Width730 mm
Overview
- Weight
- 11.8 kg
- Colour
- Stainless steel
- Accidental start up protection
- No
- Control type
- Rotary
- Connected load (electric)
- 0 W
- Width
- 730 mm
- Brand
- Whirlpool
- Category
- Hob
- Model
- TGML 761 IX R
- Part number
- 869991661070
- EAN / UPC
- 8003437641572
- Also known as
- Whirlpool TGML 761 IX R Stainless steel Built-in 73 cm Gas 5 zone(s)
Specifications
53 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Appliance placement | Built-in |
| Hob width size | 73 cm |
| Hob type | Gas |
| Top surface type | Stainless steel |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 5 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Cooking zone 1 type | Extra large |
| Cooking zone 1 position | Left |
| Cooking zone 2 type | Simmer |
| Cooking zone 2 position | Middle front |
| Cooking zone 3 type | Regular |
| Cooking zone 3 position | Middle rear |
| Cooking zone 4 type | Large |
| Cooking zone 4 position | Right rear |
| Cooking zone 5 type | Regular |
| Cooking zone 5 position | Right front |
| Cooking zone 6 type | Not applicable |
| Cooking zone 7 type | Not applicable |
| Fish burner | No |
| Pan support material | Cast iron |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Accidental start up protection | No |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Rotary |
| Control position | Top front |
| Built-in display | No |
| Timer | No |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
| Flame failure device | Yes |
| Residual heat indicator | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Connected load (electric) | 0 W |
| Connected load (gas) | 10800 W |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Current | 0.6 A |
Management features
| Specification | Value |
|---|---|
| Wi-Fi controlled | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 730 mm |
| Depth | 510 mm |
| Height | 58 mm |
| Weight | 11.8 kg |
| Installation compartment width | 56 cm |
| Installation compartment depth | 48 cm |
| Installation compartment depth (min) | 48 cm |
| Installation compartment depth (max) | 48.2 cm |
| Installation compartment height | 2 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 810 mm |
| Package depth | 590 mm |
| Package height | 180 mm |
| Package weight | 12.6 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
