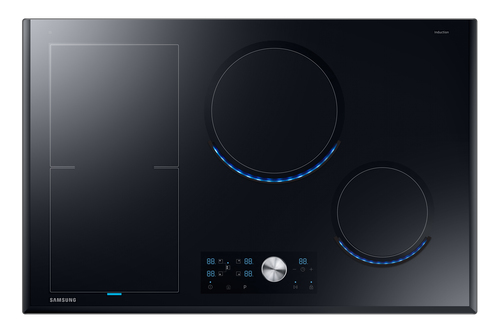

NZ84T9770EK hob Black Built-in
80 cm Zone induction hob 4 zone(s)
Model NZ84T9770EKEAN 8806090445989
113 specifications
- Power7000 W
- Weight16.5 kg
- ColourBlack
- Simmer cooking zone1200 W
- Control typeRotary, Touch
- GrillNo
Overview
- Power
- 7000 W
- Weight
- 16.5 kg
- Colour
- Black
- Simmer cooking zone
- 1200 W
- Control type
- Rotary, Touch
- Grill
- No
- Brand
- Samsung
- Category
- Hob
- Model
- NZ84T9770EK
- Part numbers
- NZ84T9770EK, NZ84T9770EK/ET
- EAN / UPC
- 8806090445989
- Also known as
- Samsung NZ84T9770EK hob Black Built-in 80 cm Zone induction hob 4 zone(s)
Specifications
113 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Black |
| Appliance placement | Built-in |
| Hob width size | 80 cm |
| Hob type | Zone induction hob |
| Top surface type | Glass |
| Number of cooking zones | 4 zone(s) |
| Number of gas cooking zones | 0 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 type | Large |
| Cooking zone 1 boost | 3600 W |
| Cooking zone 1 position | Left rear |
| Cooking zone 1 power | 3300 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 1 shape | Rectangular |
| Cooking zone 2 type | Large |
| Cooking zone 2 position | Left front |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 shape | Rectangular |
| Cooking zone 2 boost | 3600 W |
| Cooking zone 2 power | 3300 W |
| Cooking zone 3 type | Large |
| Cooking zone 3 diameter | 220 mm |
| Cooking zone 3 position | Middle rear |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 shape | Round |
| Cooking zone 3 boost | 3200 W |
| Cooking zone 3 power | 2200 W |
| Cooking zone 4 type | Simmer |
| Cooking zone 4 diameter | 160 mm |
| Cooking zone 4 position | Right front |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 shape | Round |
| Cooking zone 4 boost | 2000 W |
| Cooking zone 4 power | 1200 W |
| Simmer cooking zone shape | Round |
| Simmer cooking zone diameter | 16 cm |
| Regular cooking zone shape | Round |
| Regular cooking zone diameter | 22 cm |
| Large cooking zone shape | Rectangular |
| Wok burner | No |
| Fish burner | No |
| Warming zone | No |
| Flexible cooking zone | Yes |
| Number of flexible cooking zones | 1 zone(s) |
| Combi zone | Yes |
| Number of simultaneously used cooking zones | 4 |
| Frame type | U-form trim |
| Frame form | Bevel |
| Frame colour | Black |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Simmer cooking zone | 1200 W |
| Regular cooking zone | 2200 W |
| Large cooking zone | 3300 W |
| Boost function | Yes |
| Number of boosters | 4 |
| Boost simmer cooking zone | 2000 W |
| Boost regular cooking zone | 3200 W |
| Boost large cooking zone | 3600 W |
| Number of power levels | 15 |
| Pan detection | Yes |
| Domino | No |
| Bridge function | No |
| Hob²Hood function | No |
| Keep warm function | No |
| Boil control function | No |
| Stop & Go function | Yes |
Ergonomics
| Specification | Value |
|---|---|

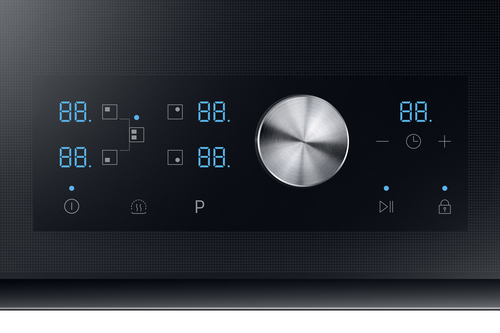

| Control type | Rotary, Touch |
| Control position | Front |
| Built-in display | Yes |
| Display type | LED |
| Integrated clock | No |
| Timer | Yes |
| Timer type | Digital |
| Timer duration | 99 min |
| Residual heat indicator | Yes |
| Auto power off | Yes |
| Child lock | Yes |
| Cleaning lock | Yes |
| Easy to clean | Yes |
| Handle(s) | No |
| Non-slip feet | No |
Grill
| Specification | Value |
|---|---|
| Grill | No |
| Adjustable grill thermostat | No |
| Smokeless | No |
| Removable grill rack | No |
| Drip tray | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Power | 7000 W |
| Connected load (electric) | 7000 W |
| Connected load (gas) | 0 W |
| AC input frequency | 50-60 Hz |
| AC input voltage | 220-240 V |
Management features
| Specification | Value |
|---|---|
| Wi-Fi controlled | No |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 800 mm |
| Depth | 520 mm |
| Height | 56 mm |
| Weight | 16.5 kg |
| Installation compartment width | 75 cm |
| Installation compartment depth | 49 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 902 mm |
| Package depth | 594 mm |
| Package height | 139 mm |
| Package weight | 19.5 kg |
Other features
| Specification | Value |
|---|---|
| Built-in cooktop extractor | No |
| Display | No |
| Fryer | No |
| Griddle | No |
| Teppanyaki | No |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
