KCC83480I Black Built-in
80 cm Zone induction hob 4 zone(s) Built-in hood
Model KCC83480IPart no. 949 599 384EAN 7333394067926
96 specifications
- Energy classA+
- Noise50 dB
- Weight17.8 kg
- ColourBlack
- Boost functionYes
- Control typeTouch
Overview
- Energy class
- A+
- Noise
- 50 dB
- Weight
- 17.8 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Touch
- Brand
- Electrolux
- Category
- Hob
- Model
- KCC83480I
- Part number
- 949 599 384
- EAN / UPC
- 7333394067926
- Also known as
- Electrolux KCC83480I Black Built-in 80 cm Zone induction hob 4 zone(s) Built-in hood
Specifications
96 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 80 cm |
| Hob type | Zone induction hob |
| Top surface type | Glass-ceramic |
| Number of cooking zones | 4 zone(s) |
| Number of gas cooking zones | 0 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 type | Large |
| Cooking zone 1 boost | 3200 W |
| Cooking zone 1 diameter | 210 mm |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power | 2300 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 2 type | Large |
| Cooking zone 2 diameter | 210 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 boost | 3200 W |
| Cooking zone 2 power | 2300 W |
| Cooking zone 3 type | Simmer |
| Cooking zone 3 diameter | 145 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 boost | 2500 W |
| Cooking zone 3 power | 1400 W |
| Cooking zone 4 type | Regular |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 boost | 2800 W |
| Cooking zone 4 power | 1800 W |
| Cooking zone 5 type | Not applicable |
| Cooking zone 6 type | Not applicable |
| Cooking zone 7 type | Not applicable |
| Fish burner | No |
| Flexible cooking zone | Yes |
| Control panel colour | Red |
| Anti-scratch coating | No |
| Pan support material | Glass |
| Frame type | Frameless |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
| Number of power levels | 3 |

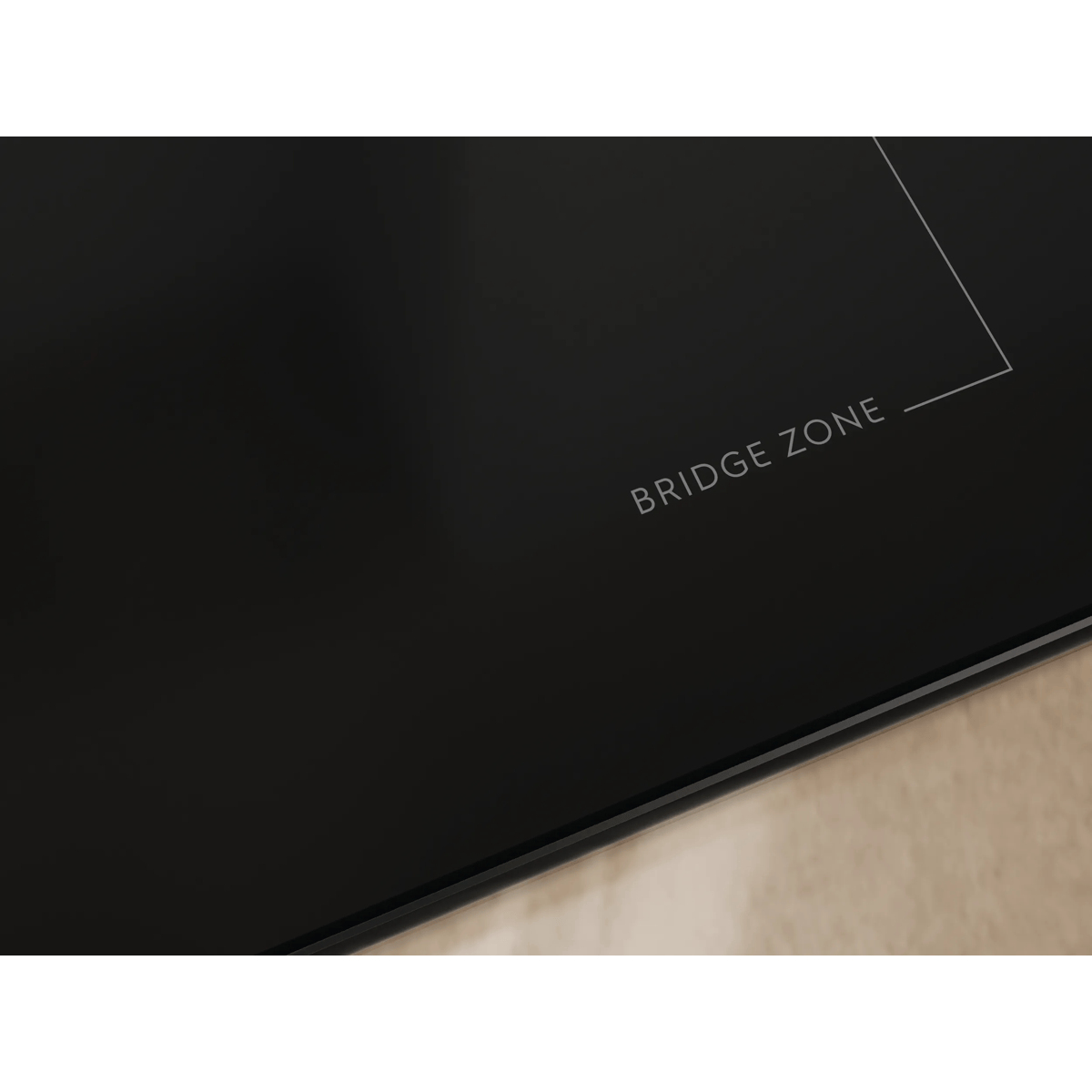

| Bridge function | Yes |
| Hob²Hood function | Yes |
| Power management | Yes |
| Accidental start up protection | Yes |
| Certification | WABE|UL|CE|DEMKO |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Touch |
| Control position | Front right |
| Built-in display | Yes |
| Timer | Yes |
| Timer type | Digital |
| Buzzer | Yes |
| Electronic ignition | No |
| Flame failure device | No |
| Residual heat indicator | Yes |
| Auto power off | Yes |
| Child lock | Yes |
Grill
| Specification | Value |
|---|---|
| Grill | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | Yes |
| Type of extraction | Recirculating |
| Maximum extraction power | 650 m³/h |
| Noise level | 50 dB |
| Fan noise level (min) | 50 dB |
| Fan noise level (max) | 66 dB |
| Noise level (intensive speed) | 69 dB |
| Exhaust location | Middle |
| Lighting efficiency class | No |
| Energy efficiency class (hood) | A+ |
| Energy efficiency scale | A+++ to D |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
| Annual energy consumption | 32.7 kWh |
| Fluid dynamic efficiency (FDE) | 32 |
| Grease filtering efficiency (GFE) | 85.1% |
Power
| Specification | Value |
|---|---|
| Connected load (electric) | 7350 W |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240/400 2N |
| Energy efficiency class | A+ |
Management features
| Specification | Value |
|---|---|
| Wi-Fi controlled | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 800 mm |
| Depth | 510 mm |
| Height | 230 mm |
| Weight | 17.8 kg |
| Cord length | 1.5 m |
| Installation compartment width | 78 cm |
| Installation compartment depth | 49 cm |
| Installation compartment height | 22.5 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 860 mm |
| Package depth | 600 mm |
| Package height | 270 mm |
| Package weight | 21.7 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
