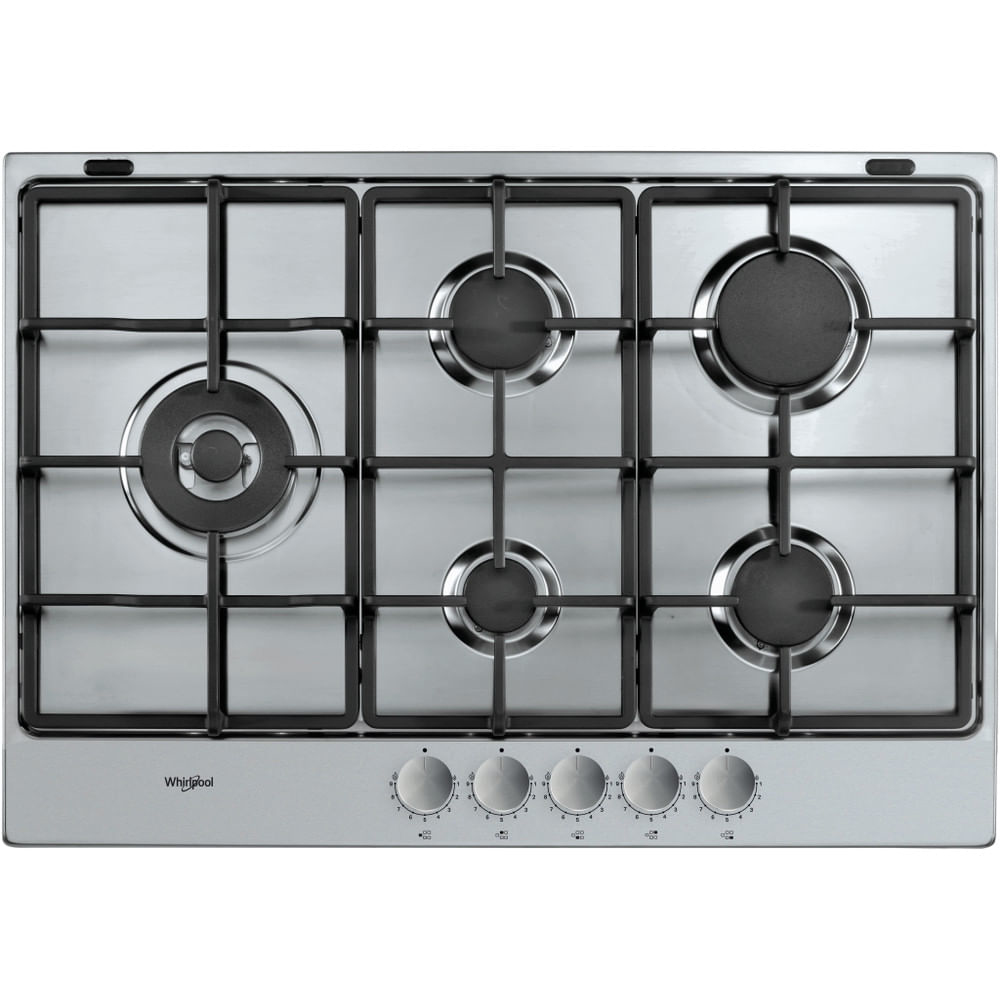

TGML 761 IX
Model TGML 761 IXPart no. 869991636160EAN 8003437625466
74 specifications
- Weight11.9 kg
- ColourStainless steel
- Number of power levels9
- Control typeRotary
- Built-in hoodNo
- Connected load (gas)10800 W
Overview
- Weight
- 11.9 kg
- Colour
- Stainless steel
- Number of power levels
- 9
- Control type
- Rotary
- Built-in hood
- No
- Connected load (gas)
- 10800 W
- Brand
- Whirlpool
- Category
- Hob
- Model
- TGML 761 IX
- Part number
- 869991636160
- EAN / UPC
- 8003437625466
- Also known as
- Whirlpool TGML 761 IX Stainless steel Built-in 75 cm Gas 5 zone(s)
Specifications
74 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Appliance placement | Built-in |
| Hob width size | 75 cm |
| Hob type | Gas |
| Top surface type | Stainless steel |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 5 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Cooking zone 1 type | Extra large |
| Cooking zone 1 position | Left |
| Cooking zone 1 power | 3500 W |
| Cooking zone 1 power source | Gas |
| Cooking zone 1 shape | Round |
| Cooking zone 2 type | Medium |
| Cooking zone 2 position | Central rear left |
| Cooking zone 2 power source | Gas |
| Cooking zone 2 shape | Round |
| Cooking zone 2 power | 1650 W |
| Cooking zone 3 type | Large |
| Cooking zone 3 position | Right rear |
| Cooking zone 3 power source | Gas |
| Cooking zone 3 shape | Round |
| Cooking zone 3 power | 3000 W |
| Cooking zone 4 type | Small |
| Cooking zone 4 position | Central front left |
| Cooking zone 4 power source | Gas |
| Cooking zone 4 shape | Round |
| Cooking zone 4 power | 1000 W |
| Cooking zone 5 type | Medium |
| Cooking zone 5 position | Right front |
| Cooking zone 5 power source | Gas |
| Cooking zone 5 shape | Round |
| Cooking zone 5 power | 1650 W |
| Number of simultaneously used cooking zones | 5 |
| Control panel colour | Stainless steel |
| Pan support material | Cast iron |
Performance
| Specification | Value |
|---|---|
| Number of power levels | 9 |
| Pan detection | No |
| Domino | No |
| Overheat protection | Yes |
Ergonomics
| Specification | Value |
|---|---|

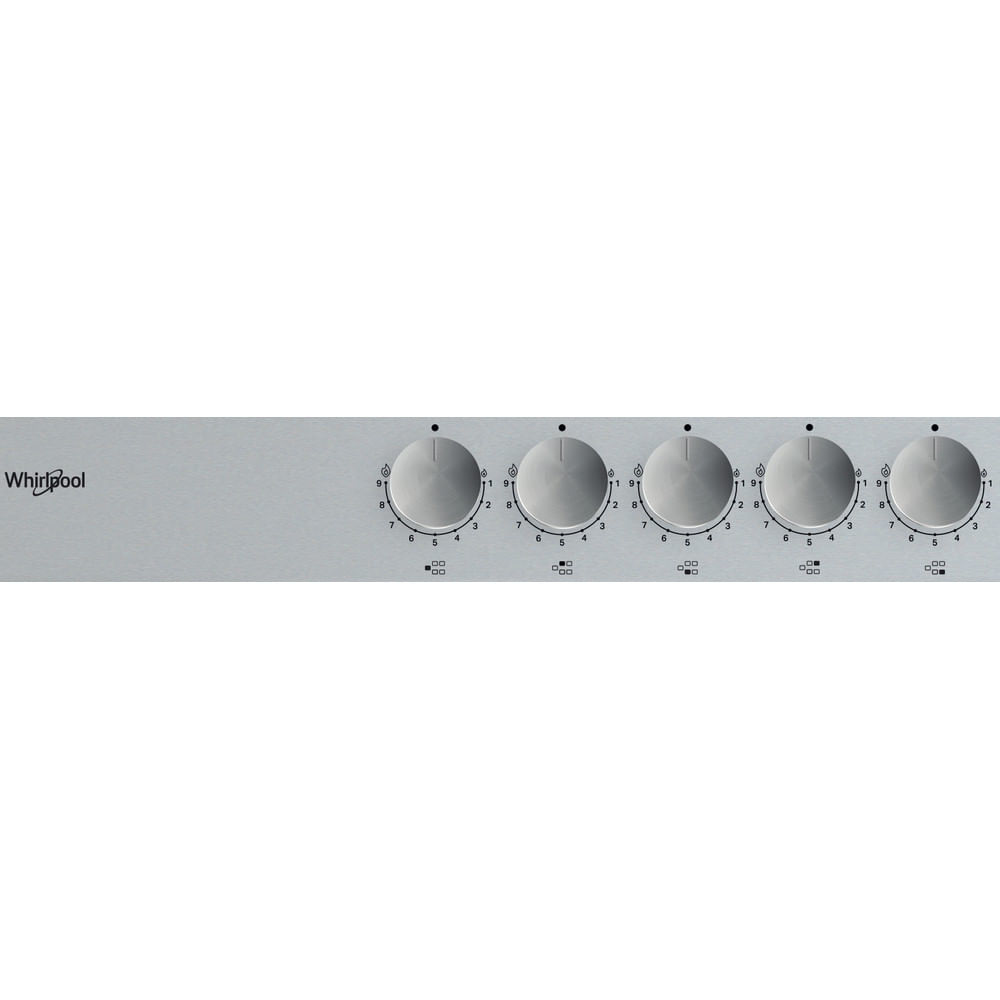

| Control type | Rotary |
| Control position | Top front |
| Built-in display | No |
| Timer | No |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
| Flame failure device | Yes |
| Hob on indicator | No |
| Residual heat indicator | No |
| Child lock | No |
| Easy to clean | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Connected load (gas) | 10800 W |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Current | 0.6 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 730 mm |
| Depth | 510 mm |
| Height | 40 mm |
| Weight | 11.9 kg |
| Cord length | 0.85 m |
| Installation compartment width | 56.2 cm |
| Installation compartment width (min) | 56 cm |
| Installation compartment width (max) | 56.2 cm |
| Installation compartment depth | 48 cm |
| Installation compartment depth (min) | 48 cm |
| Installation compartment depth (max) | 48.2 cm |
| Installation compartment height | 5 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 810 mm |
| Package depth | 590 mm |
| Package height | 180 mm |
| Package weight | 12.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Italy |
| Customs product code (TARIC) | 73211190 |
