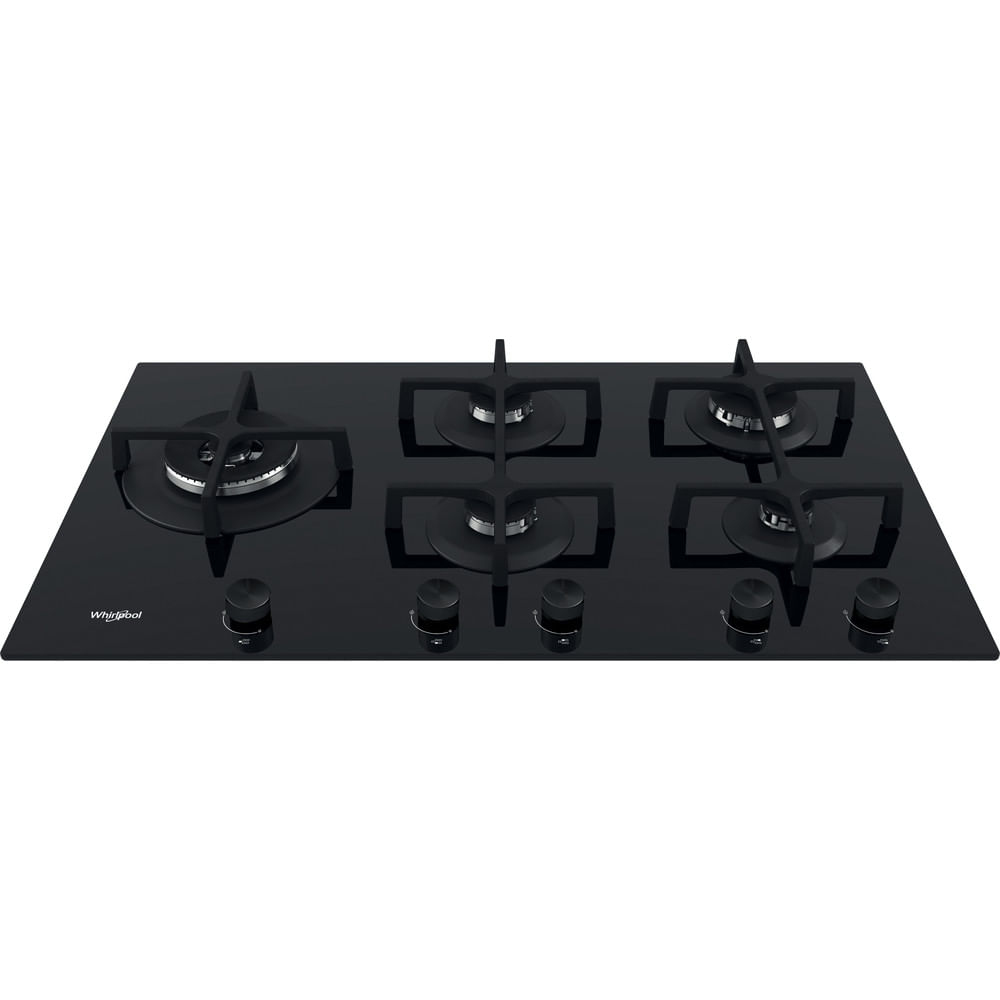

GOA 9523/NB1
Model GOA 9523/NB1Part no. 869991665170EAN 8003437644528
60 specifications
- Weight17.5 kg
- ColourBlack
- Accidental start up protectionNo
- Control typeRotary
- Connected load (electric)0 W
- Width860 mm
Overview
- Weight
- 17.5 kg
- Colour
- Black
- Accidental start up protection
- No
- Control type
- Rotary
- Connected load (electric)
- 0 W
- Width
- 860 mm
- Brand
- Whirlpool
- Category
- Hob
- Model
- GOA 9523/NB1
- Part number
- 869991665170
- EAN / UPC
- 8003437644528
- Also known as
- Whirlpool GOA 9523/NB1 Black Built-in 90 cm Gas 5 zone(s)
Specifications
60 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 90 cm |
| Hob type | Gas |
| Top surface type | Glass |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 5 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Cooking zone 1 type | Extra large |
| Cooking zone 1 position | Left |
| Cooking zone 1 power | 4800 W |
| Cooking zone 1 power source | Gas |
| Cooking zone 2 type | Regular |
| Cooking zone 2 position | Central front left |
| Cooking zone 2 power source | Gas |
| Cooking zone 2 power | 1650 W |
| Cooking zone 3 type | Regular |
| Cooking zone 3 position | Central rear left |
| Cooking zone 3 power source | Gas |
| Cooking zone 3 power | 1650 W |
| Cooking zone 4 type | Large |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Gas |
| Cooking zone 4 power | 3000 W |
| Cooking zone 5 type | Small |
| Cooking zone 5 position | Right front |
| Cooking zone 5 power source | Gas |
| Cooking zone 5 power | 1000 W |
| Cooking zone 6 type | Not applicable |
| Cooking zone 7 type | Not applicable |
| Fish burner | No |
| Pan support material | Cast iron |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Accidental start up protection | No |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Rotary |
| Control position | Top front |
| Built-in display | No |
| Timer | No |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
| Flame failure device | Yes |
| Residual heat indicator | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Connected load (electric) | 0 W |
| Connected load (gas) | 12100 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220-240 V |
| Current | 0.2 A |

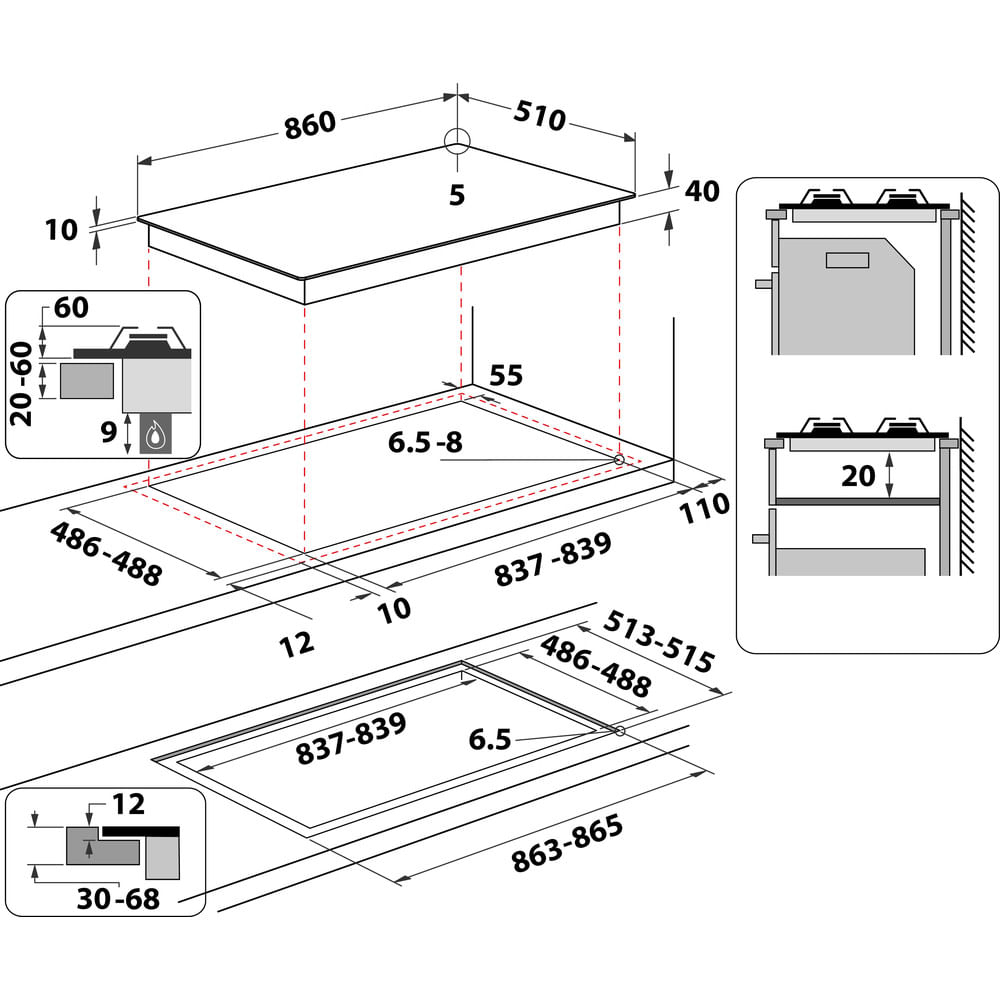

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 860 mm |
| Depth | 510 mm |
| Height | 50 mm |
| Weight | 17.5 kg |
| Installation compartment width | 84 cm |
| Installation compartment depth | 49 cm |
| Installation compartment height | 4.1 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 950 mm |
| Package depth | 600 mm |
| Package height | 190 mm |
| Package weight | 19.8 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
