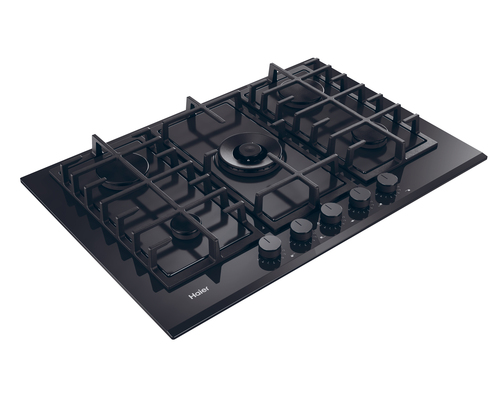

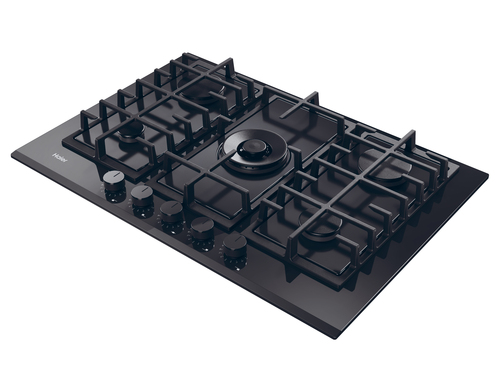

HAVG75TBBP Black Built-in
75 cm Gas 4 zone(s)
Model HAVG75TBBPPart no. 33803492EAN 8059019092836
68 specifications
- Weight17.7 kg
- ColourBlack
- Accidental start up protectionNo
- Control typeRotary
- Connected load (gas)12500 W
- Width745 mm
Overview
- Weight
- 17.7 kg
- Colour
- Black
- Accidental start up protection
- No
- Control type
- Rotary
- Connected load (gas)
- 12500 W
- Width
- 745 mm
- Brand
- Haier
- Category
- Hob
- Model
- HAVG75TBBP
- Part number
- 33803492
- EAN / UPC
- 8059019092836
- Also known as
- Haier HAVG75TBBP Black Built-in 75 cm Gas 4 zone(s)
Specifications
68 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 75 cm |
| Hob type | Gas |
| Top surface type | Glass |
| Number of cooking zones | 4 zone(s) |
| Number of gas cooking zones | 4 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Cooking zone 1 type | Small |
| Cooking zone 1 diameter | 50 mm |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power | 1000 W |
| Cooking zone 1 power source | Gas |
| Cooking zone 1 shape | Round |
| Cooking zone 2 type | Regular |
| Cooking zone 2 diameter | 70 mm |
| Cooking zone 2 position | Right front |
| Cooking zone 2 power source | Gas |
| Cooking zone 2 shape | Round |
| Cooking zone 2 power | 1500 W |
| Cooking zone 3 type | Large |
| Cooking zone 3 diameter | 95 mm |
| Cooking zone 3 position | Left rear |
| Cooking zone 3 power source | Gas |
| Cooking zone 3 shape | Round |
| Cooking zone 3 power | 2500 W |
| Cooking zone 4 type | Large |
| Cooking zone 4 diameter | 95 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Gas |
| Cooking zone 4 shape | Round |
| Cooking zone 4 power | 2500 W |

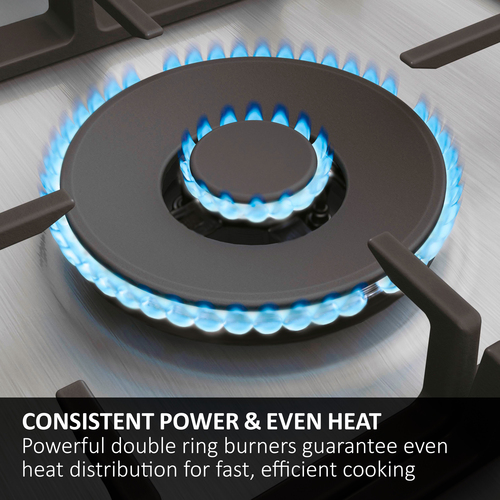

| Cooking zone 5 type | Double crown |
| Cooking zone 5 diameter | 137 mm |
| Cooking zone 5 position | Central |
| Cooking zone 5 power source | Gas |
| Cooking zone 5 shape | Round |
| Cooking zone 5 power | 5000 W |
| Cooking zone 6 type | Not applicable |
| Cooking zone 7 type | Not applicable |
| Fish burner | No |
| Knobs colour | Black |

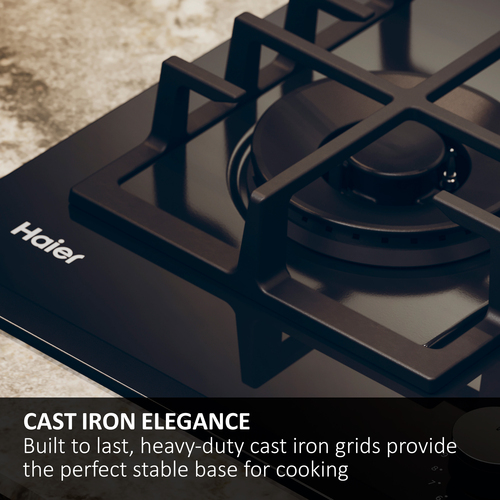

| Pan support material | Cast iron |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Accidental start up protection | No |
Ergonomics
| Specification | Value |
|---|---|

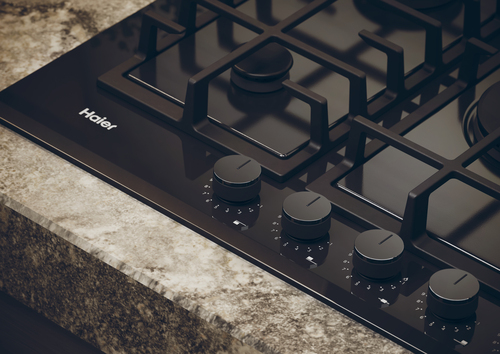

| Control type | Rotary |
| Control position | Front |
| Built-in display | No |
| Timer | No |
| Electronic ignition | Yes |
| Flame failure device | Yes |
| Residual heat indicator | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Connected load (gas) | 12500 W |
| Power plug type | No plug |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 745 mm |
| Depth | 510 mm |
| Height | 50 mm |
| Weight | 17.7 kg |
| Installation compartment width | 56 cm |
| Installation compartment depth | 48 cm |
| Installation compartment height | 4.2 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 800 mm |
| Package depth | 570 mm |
| Package height | 143 mm |
| Package weight | 18.5 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Italy |
