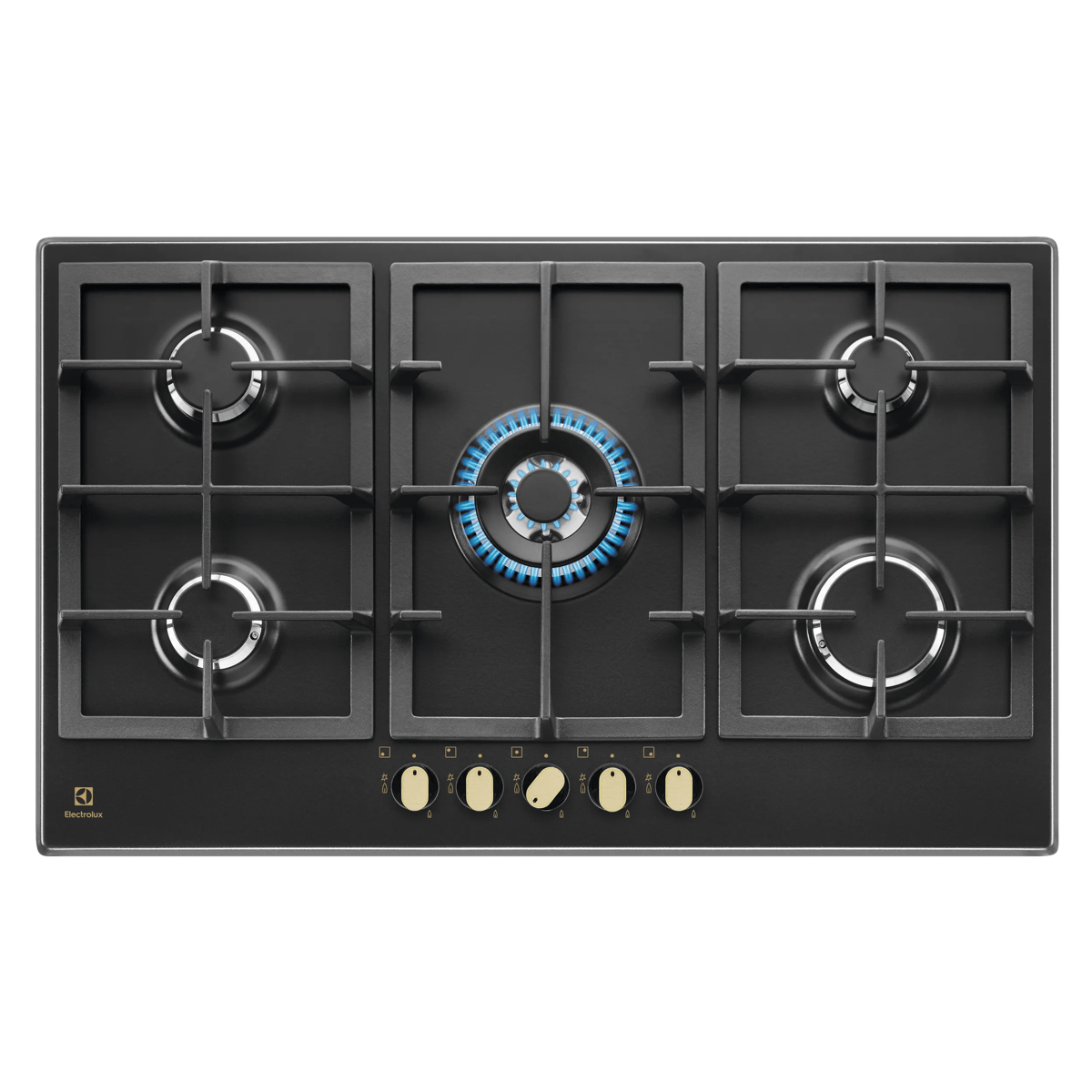

KGS9536RN Black Built-in
90 cm Gas 5 zone(s)
Model KGS9536RNPart no. 949 750 924EAN 7332543666966
43 specifications
- Weight15.5 kg
- ColourBlack
- Boost functionNo
- Control typeRotary
- AC input frequency50/60 Hz
- Width857 mm
Overview
- Weight
- 15.5 kg
- Colour
- Black
- Boost function
- No
- Control type
- Rotary
- AC input frequency
- 50/60 Hz
- Width
- 857 mm
- Brand
- Electrolux
- Category
- Hob
- Model
- KGS9536RN
- Part number
- 949 750 924
- EAN / UPC
- 7332543666966
- Also known as
- Electrolux KGS9536RN Black Built-in 90 cm Gas 5 zone(s)
Specifications
43 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Nero |
| Appliance placement | Built-in |
| Hob width size | 90 cm |
| Hob type | Gas |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 5 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Simmer cooking zone shape | Round |
| Regular cooking zone shape | Round |
| Large cooking zone shape | Round |
| Wok burner | No |
| Flexible cooking zone | No |
| Number of simultaneously used cooking zones | 5 |

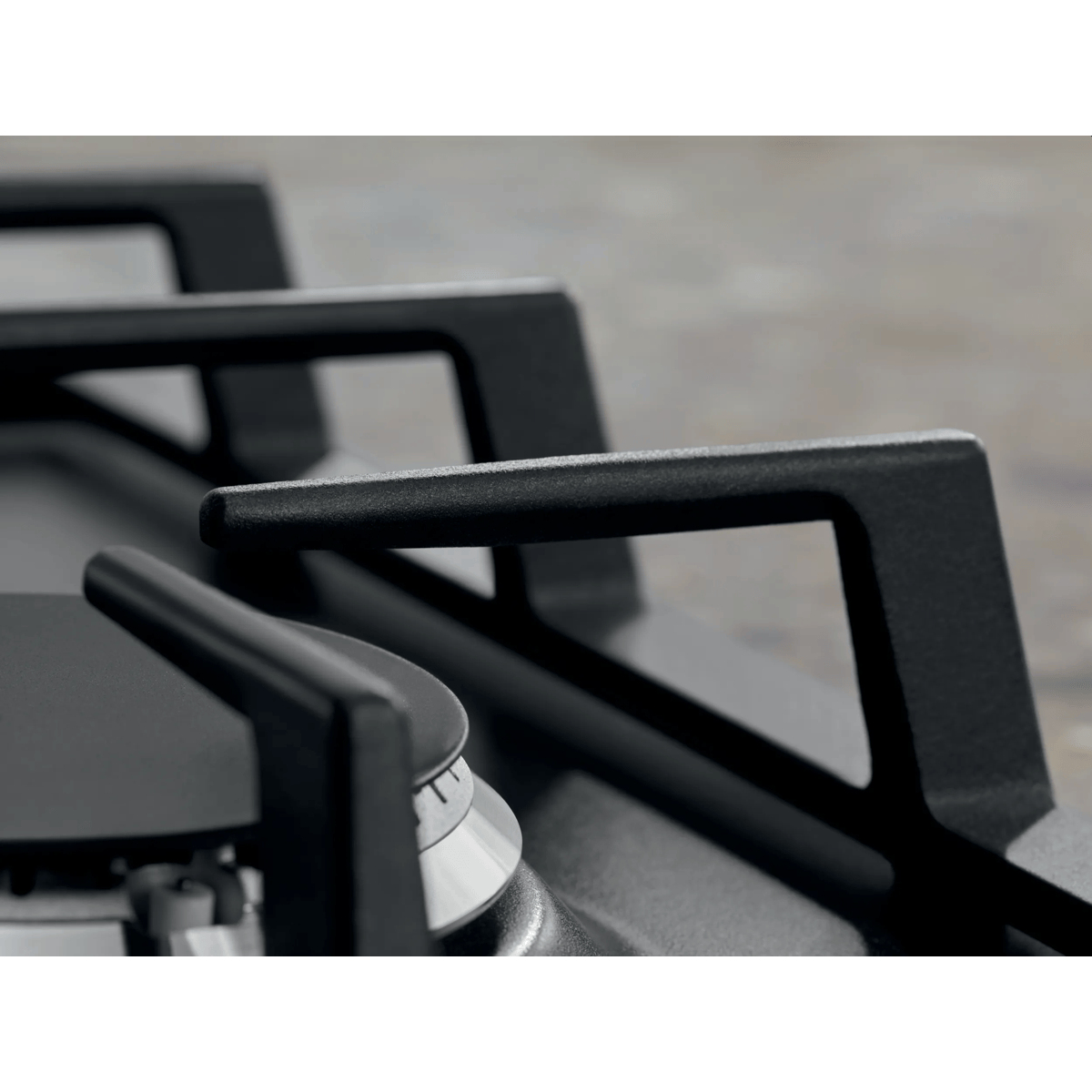

| Pan support material | Cast iron |
| Frame type | Frameless |
Performance
| Specification | Value |
|---|---|
| Boost function | No |
| Frying sensor | No |
| Bridge function | No |
| Hob²Hood function | No |
| Boil control function | No |
| Certification | CE|UL |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Rotary |
| Control position | Top front |
| Built-in display | No |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 220-240 V |
| Gas type | NG + LPG (Propane/Butane) |
| Natural gas calorific type | High-calorific gas (H-gas) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 857 mm |
| Depth | 520 mm |
| Height | 40 mm |
| Weight | 15.5 kg |
| Installation compartment width | 83 cm |
| Installation compartment depth | 48 cm |
Packaging data
| Specification | Value |
|---|---|
| Package volume | 115040 cm³ |
| Package width | 1010 mm |
| Package depth | 670 mm |
| Package height | 170 mm |
| Package weight | 17.1 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL |
