TCH74B01FZ Black Built-in
70 cm Zone induction hob 4 zone(s) Built-in hood
Model TCH74B01FZPart no. 949 598 490EAN 7333394075808
49 specifications
- Noise50 dB
- Weight17.3 kg
- ColourBlack
- Boost functionYes
- Control typeTouch
- AC input voltage220 - 240 V
Overview
- Noise
- 50 dB
- Weight
- 17.3 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Touch
- AC input voltage
- 220 - 240 V
- Brand
- AEG
- Category
- Hob
- Model
- TCH74B01FZ
- Part number
- 949 598 490
- EAN / UPC
- 7333394075808
- Also known as
- AEG TCH74B01FZ Black Built-in 70 cm Zone induction hob 4 zone(s) Built-in hood
Specifications
49 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 70 cm |
| Hob type | Zone induction hob |

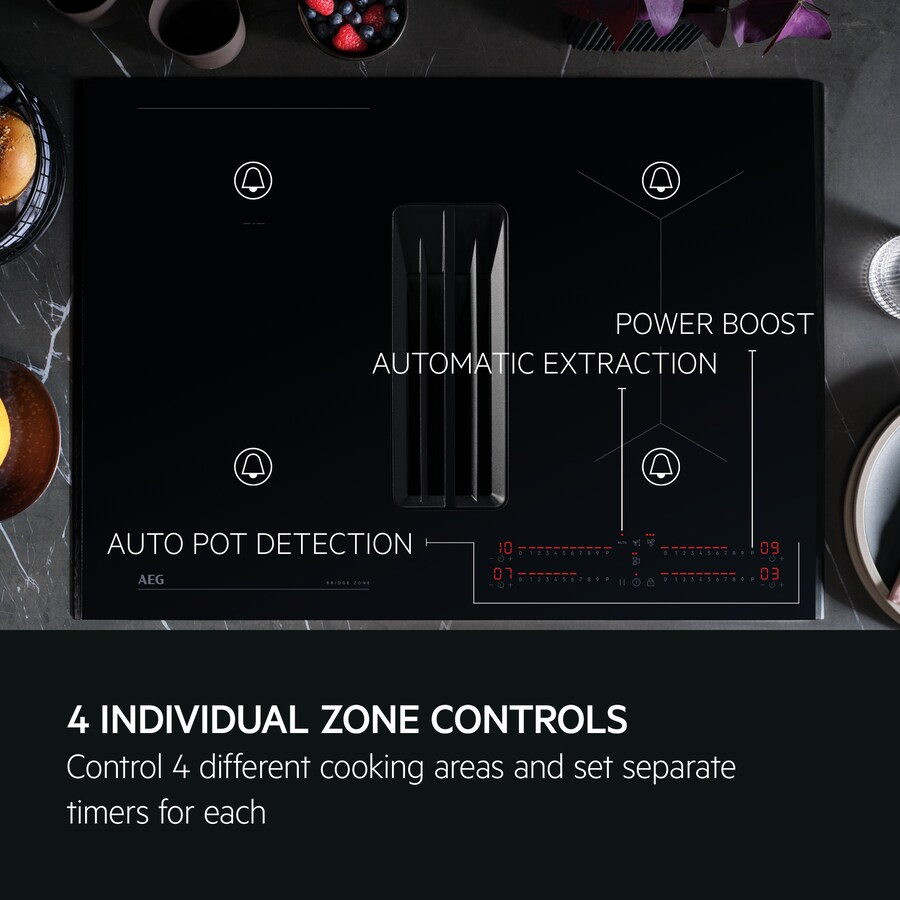

| Number of cooking zones | 4 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 boost | 3200 W |
| Cooking zone 1 diameter | 210 mm |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power | 2300 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 2 diameter | 210 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 boost | 3200 W |
| Cooking zone 2 power | 2300 W |
| Cooking zone 3 diameter | 145 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 boost | 2500 W |
| Cooking zone 3 power | 1400 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 boost | 2800 W |
| Cooking zone 4 power | 1800 W |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Touch |
| Control position | Front |
| Auto power off | Yes |
| Child lock | Yes |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | Yes |
| Type of extraction | Recirculating |
| Maximum extraction power | 585 m³/h |
| Noise level | 50 dB |
| Noise level (intensive speed) | 69 dB |

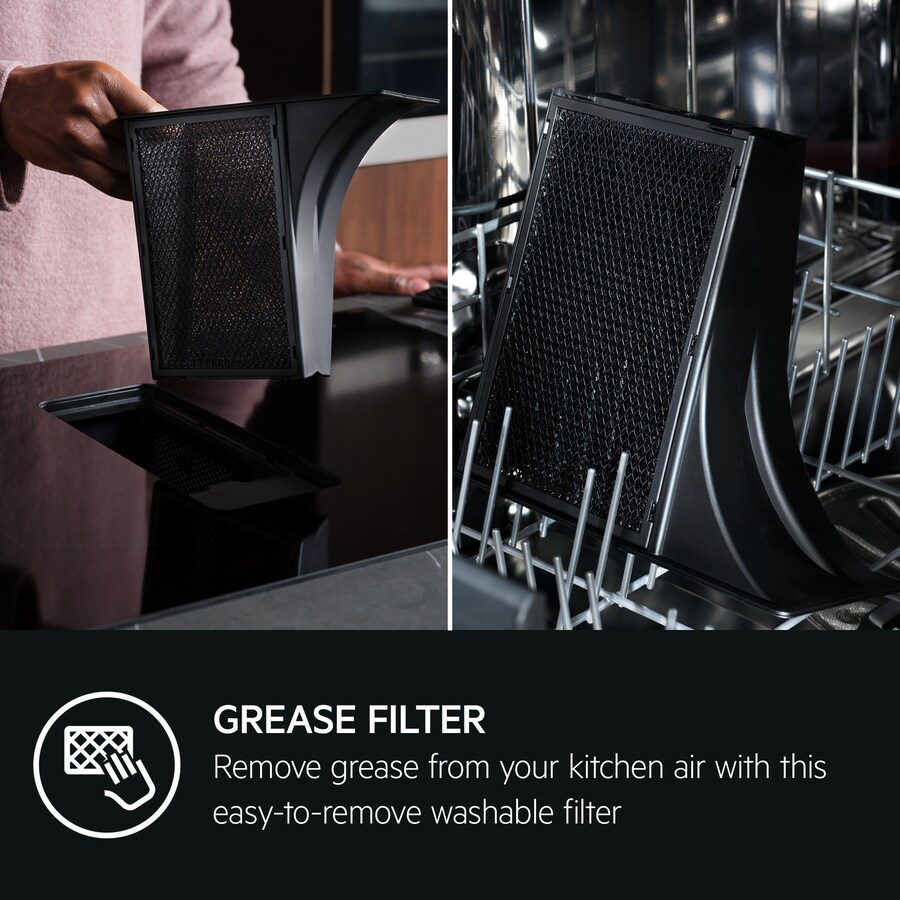

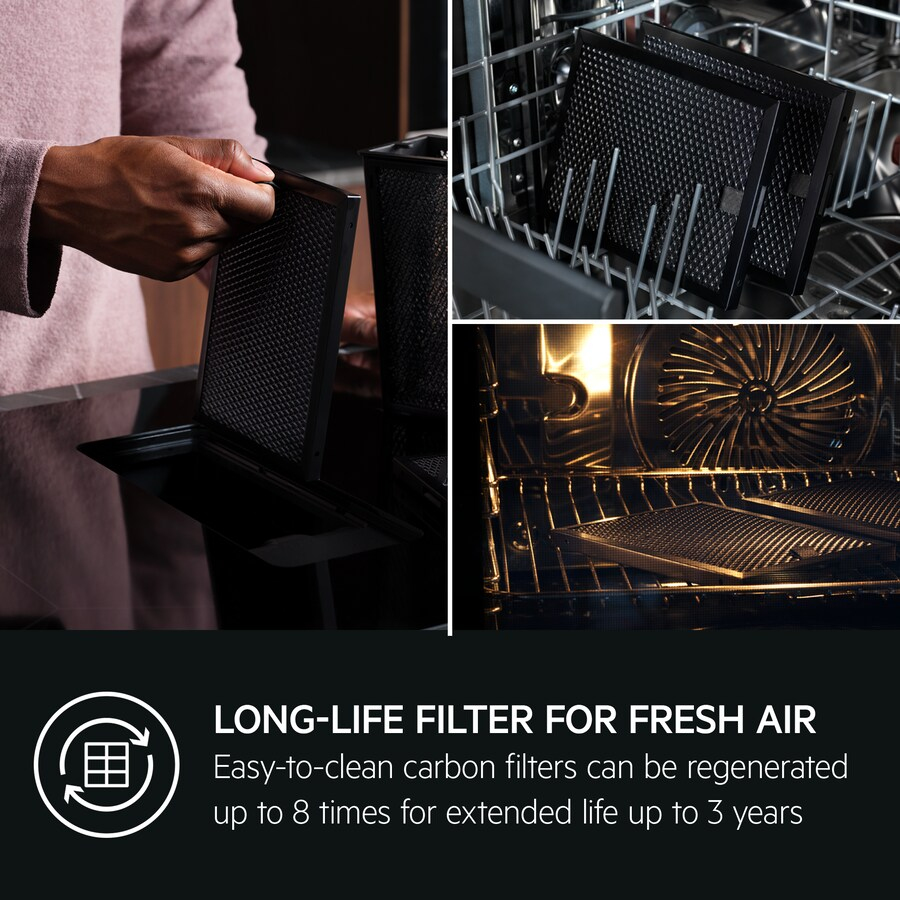

| Grease filter type | Carbon |
| Energy efficiency scale | A+++ to D |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
| Annual energy consumption | 33 kWh |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220 - 240 V |
| Power plug type | No plug |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 710 mm |
| Depth | 520 mm |
| Height | 225 mm |
| Weight | 17.3 kg |
| Installation compartment width | 68 cm |
| Installation compartment depth | 49 cm |
