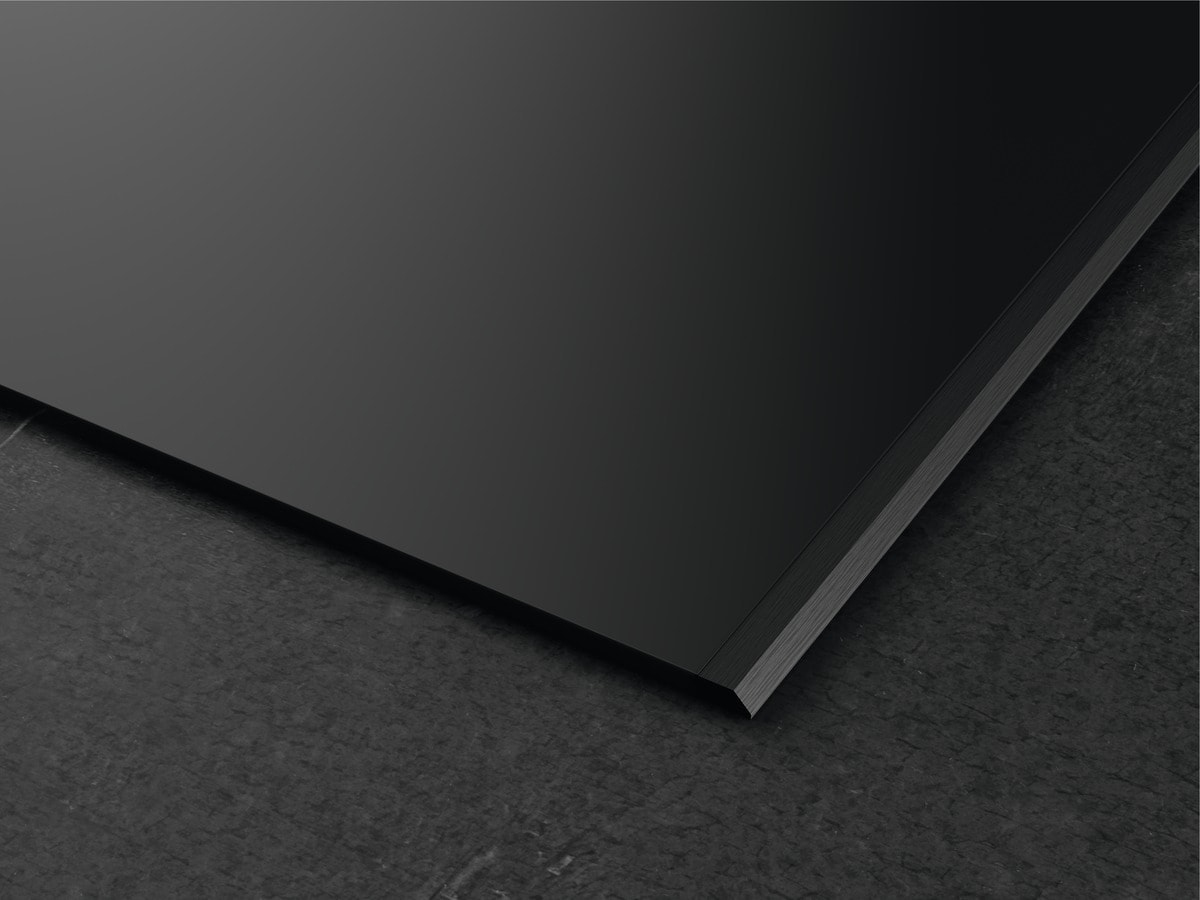

NCQ84K01AB Black Built-in
83 cm Zone induction hob 4 zone(s) Built-in hood
Model NCQ84K01ABPart no. 949 598 061EAN 7333394019666
65 specifications
- Energy classA+
- Noise64 dB
- Weight24.5 kg
- ColourBlack
- Boost functionYes
- Control typeScrollbar, Touch
Overview
- Energy class
- A+
- Noise
- 64 dB
- Weight
- 24.5 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Scrollbar, Touch
- Brand
- AEG
- Category
- Hob
- Model
- NCQ84K01AB
- Part number
- 949 598 061
- EAN / UPC
- 7333394019666
- Also known as
- AEG NCQ84K01AB Black Built-in 83 cm Zone induction hob 4 zone(s) Built-in hood
Specifications
65 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 83 cm |
| Hob type | Zone induction hob |
| Number of cooking zones | 4 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 boost | 3200 W |
| Cooking zone 1 diameter | 220 mm |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power | 2300 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 2 diameter | 220 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 boost | 3200 W |
| Cooking zone 2 power | 2300 W |
| Cooking zone 3 diameter | 220 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 boost | 3200 W |
| Cooking zone 3 power | 2300 W |
| Cooking zone 4 diameter | 220 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 boost | 3200 W |
| Cooking zone 4 power | 2300 W |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
| Number of boosters | 4 |
| Number of power levels | 9 |
| Bridge function | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Scrollbar, Touch |
| Control position | Top front |
| Built-in display | Yes |
| Timer | Yes |
| Timer type | Digital |
| Child lock | Yes |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | Yes |
| Type of extraction | Ducted/Recirculating |
| Maximum extraction power | 630 m³/h |
| Number of fan speeds | 3 |
| Noise level | 64 dB |
| Fan noise level (min) | 49 dB |
| Fan noise level (max) | 64 dB |
| Noise level (intensive speed) | 70 dB |
| Exhaust location | Middle |
| Grease filter type | Aluminium/Carbon |
| Lighting efficiency class | No |
| Energy efficiency class (hood) | A+ |
| Energy efficiency scale | A+++ to D |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
| Annual energy consumption | 28.8 kWh |
| Fluid dynamic efficiency (FDE) | 32.4 |
| Grease filtering efficiency (GFE) | 85.1% |
Power
| Specification | Value |
|---|---|
| Connected load (electric) | 7200 W |
| AC input voltage | 220-240V/400V2N |
| Energy efficiency class | A+ |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (cooking) | Breeze Function, Built-In Extractor, Child lock, Eco Timer |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 830 mm |
| Depth | 520 mm |
| Weight | 24.5 kg |
| Cord length | 1.5 m |
| Installation compartment width | 78 cm |
| Installation compartment depth | 49 cm |
| Installation compartment height | 21.2 cm |
