NCH84B01AB Black Built-in

80 cm Zone induction hob 4 zone(s) Built-in hood

Model NCH84B01ABPart no. 949 598 115EAN 7333394020990

68 specifications

Overview

Brand: AEG
Category: Hob
Model: NCH84B01AB
Part number: 949 598 115
EAN / UPC: 7333394020990
Also known as: AEG NCH84B01AB Black Built-in 80 cm Zone induction hob 4 zone(s) Built-in hood

68 specifications in 7 groups

Specification	Value
Product colour	Black
Appliance placement	Built-in
Hob width size	80 cm
Hob type	Zone induction hob
Number of cooking zones	4 zone(s)
Number of electric cooking zones	4 zone(s)
Cooking zone 1 boost	3200 W
Cooking zone 1 diameter	210 mm
Cooking zone 1 position	Left front
Cooking zone 1 power	2300 W
Cooking zone 1 power source	Electric
Cooking zone 2 diameter	210 mm
Cooking zone 2 position	Left rear
Cooking zone 2 power source	Electric
Cooking zone 2 boost	3200 W
Cooking zone 2 power	2300 W
Cooking zone 3 diameter	145 mm
Cooking zone 3 position	Right front
Cooking zone 3 power source	Electric
Cooking zone 3 boost	2500 W
Cooking zone 3 power	1400 W
Cooking zone 4 diameter	180 mm
Cooking zone 4 position	Right rear
Cooking zone 4 power source	Electric
Cooking zone 4 boost	2800 W
Cooking zone 4 power	1800 W

Specification	Value

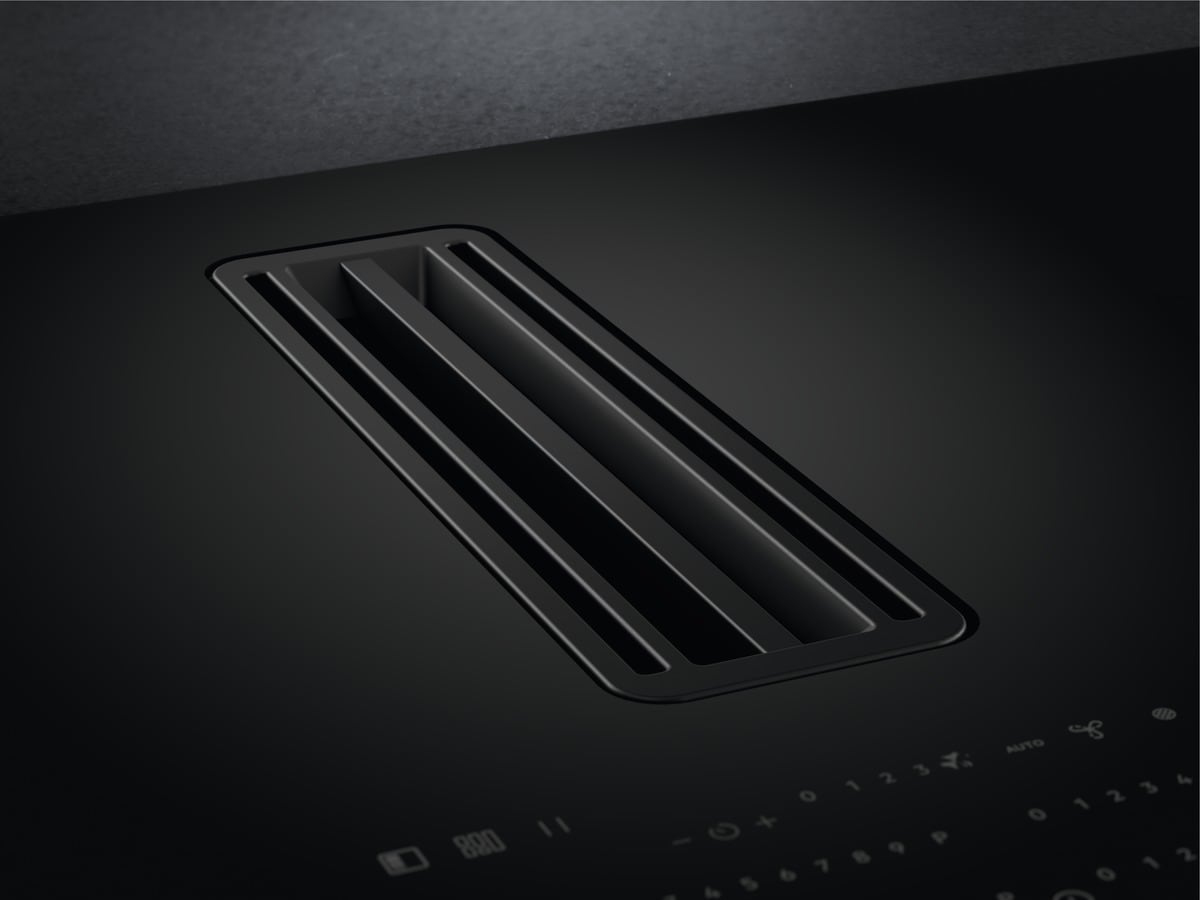

Built-in hood	Yes
Type of extraction	Ducted/Recirculating
Maximum extraction power	630 m³/h
Number of fan speeds	3
Noise level	64 dB
Fan noise level (min)	48 dB
Fan noise level (max)	64 dB
Noise level (intensive speed)	69 dB
Exhaust location	Middle
Grease filter type	Aluminium/Carbon
Lighting efficiency class	No
Energy efficiency class (hood)	A+
Energy efficiency scale	A+++ to D
Fluid dynamic efficiency class	A
Grease filtering efficiency class	B
Annual energy consumption	30.9 kWh
Fluid dynamic efficiency (FDE)	33.1
Grease filtering efficiency (GFE)	85.1%

Specification	Value
AEG technologies (cooking)	Boost Function, Breeze Function, Built-In Extractor, Child lock, Eco Timer, Touch Control

Specification	Value
Width	800 mm
Depth	520 mm
Weight	21 kg
Cord length	1.5 m
Installation compartment width	75 cm
Installation compartment depth	49 cm
Installation compartment height	21.2 cm
