NCH74B01AB 949598096
Model NCH74B01AB 949598096EAN 7333394017891
62 specifications
- Energy classA+
- Noise69 dB
- Weight17 kg
- ColourBlack
- Boost functionYes
- Control typeTouch
Overview
- Energy class
- A+
- Noise
- 69 dB
- Weight
- 17 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Touch
- Brand
- AEG
- Category
- Hob
- Model
- NCH74B01AB 949598096
- Part number
- NCH74B01AB 949598096
- EAN / UPC
- 7333394017891
- Also known as
- AEG NCH74B01AB 949598096 hob Black Built-in 68 cm Zone induction hob 4 zone(s) Built-in hood
Specifications
62 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Hob width size | 68 cm |
| Hob type | Zone induction hob |
| Top surface type | Glass |
| Number of cooking zones | 4 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 boost | 3200 W |
| Cooking zone 1 diameter | 210 mm |
| Cooking zone 1 position | Left rear |
| Cooking zone 1 power | 2300 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 2 diameter | 210 mm |
| Cooking zone 2 position | Left front |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 boost | 3200 W |
| Cooking zone 2 power | 2300 W |
| Cooking zone 3 diameter | 145 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 boost | 2500 W |
| Cooking zone 3 power | 1400 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 boost | 2800 W |
| Cooking zone 4 power | 1800 W |
| Frame type | Full trim |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
| Bridge function | Yes |
Ergonomics
| Specification | Value |
|---|---|

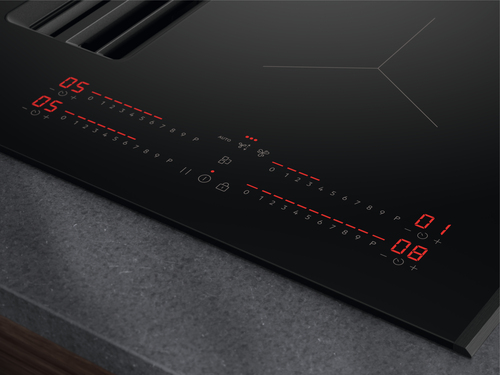

| Control type | Touch |
| Control position | Front right |
| Built-in display | Yes |
| Timer | Yes |
| Child lock | Yes |
Grill
| Specification | Value |
|---|---|
| Grill | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | Yes |
| Type of extraction | Ducted/Recirculating |
| Fan noise level (min) | 50 dB |
| Fan noise level (max) | 66 dB |
| Noise level (intensive speed) | 69 dB |
| Energy efficiency class (hood) | A+ |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (cooking) | Boost Function, Breeze Function, Built-In Extractor, Child lock |

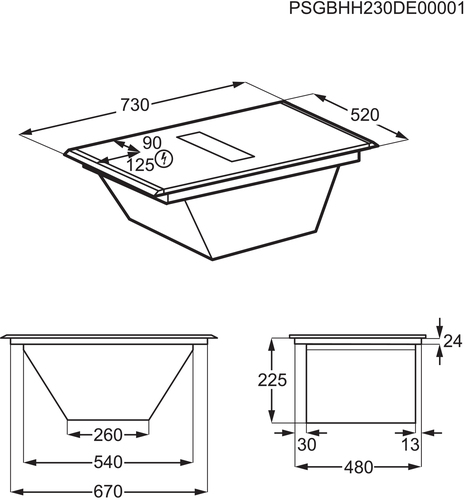

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 700 mm |
| Depth | 510 mm |
| Height | 230 mm |
| Weight | 17 kg |
| Height above worktop | 5 mm |
| Cord length | 1.5 m |

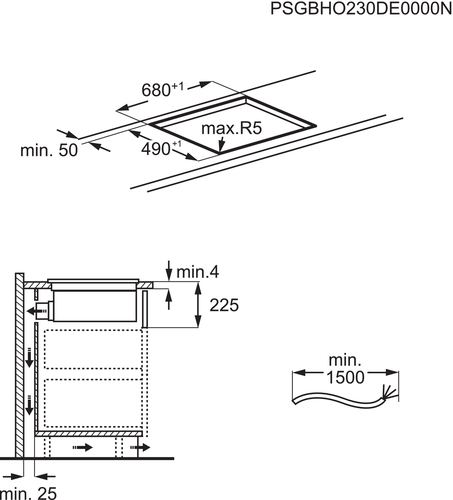

| Installation compartment width | 68 cm |
| Installation compartment depth | 49 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 760 mm |
| Package depth | 580 mm |
| Package height | 335 mm |
| Package weight | 20.5 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Germany |
| Cardboard packaging weight | 1.49 kg |
| Intrastat code | 85166050 |
| Polyethylene (PE) packaging weight | 40 g |
