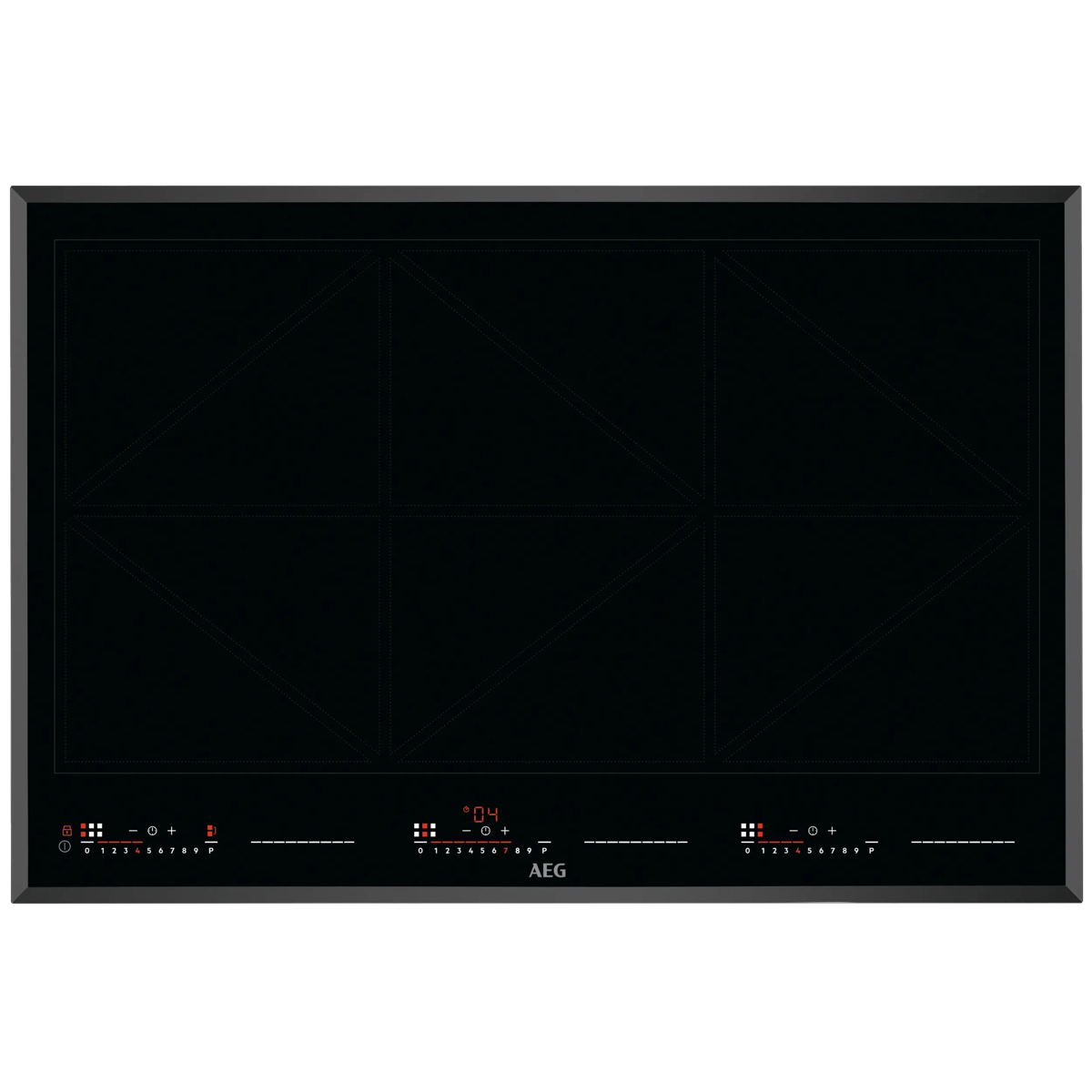

IKK86683FB Black Built-in
80 cm Zone induction hob 6 zone(s)
Model IKK86683FBPart no. 949 597 793EAN 7332543755011
77 specifications
- Weight20.5 kg
- ColourBlack
- Boost functionYes
- Control typeTouch
- Built-in hoodNo
- Connected load (electric)7200 W
Overview
- Weight
- 20.5 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Touch
- Built-in hood
- No
- Connected load (electric)
- 7200 W
- Brand
- AEG
- Category
- Hob
- Model
- IKK86683FB
- Part number
- 949 597 793
- EAN / UPC
- 7332543755011
- Also known as
- AEG IKK86683FB Black Built-in 80 cm Zone induction hob 6 zone(s)
Specifications
77 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Nero |
| Appliance placement | Built-in |
| Hob width size | 80 cm |
| Hob type | Zone induction hob |
| Top surface type | Glass-ceramic |
| Number of cooking zones | 6 zone(s) |
| Number of gas cooking zones | 0 zone(s) |
| Number of electric cooking zones | 6 zone(s) |
| Cooking zone 1 type | Regular |
| Cooking zone 1 boost | 3000 W |
| Cooking zone 1 power | 2000 W |
| Cooking zone 1 shape | Rectangular |
| Cooking zone 1 size (W x D) | 200 x 180 mm |
| Cooking zone 2 type | Regular |
| Cooking zone 2 shape | Rectangular |
| Cooking zone 2 size (W x D) | 200 x 180 mm |
| Cooking zone 2 boost | 3000 W |
| Cooking zone 2 power | 2000 W |
| Cooking zone 3 type | Regular |
| Cooking zone 3 shape | Rectangular |
| Cooking zone 3 boost | 3000 W |
| Cooking zone 3 power | 2000 W |
| Cooking zone 3 size (W x D) | 200 x 180 mm |
| Cooking zone 4 type | Regular |
| Cooking zone 4 shape | Rectangular |
| Cooking zone 4 size (W x D) | 200 x 180 mm |
| Cooking zone 4 boost | 3000 W |
| Cooking zone 4 power | 2000 W |
| Cooking zone 5 type | Not applicable |
| Cooking zone 6 type | Not applicable |
| Cooking zone 7 type | Not applicable |
| Wok burner | No |
| Fish burner | No |
| Flexible cooking zone | Yes |
| Control panel colour | Black |
| Pan support material | Ceramic |

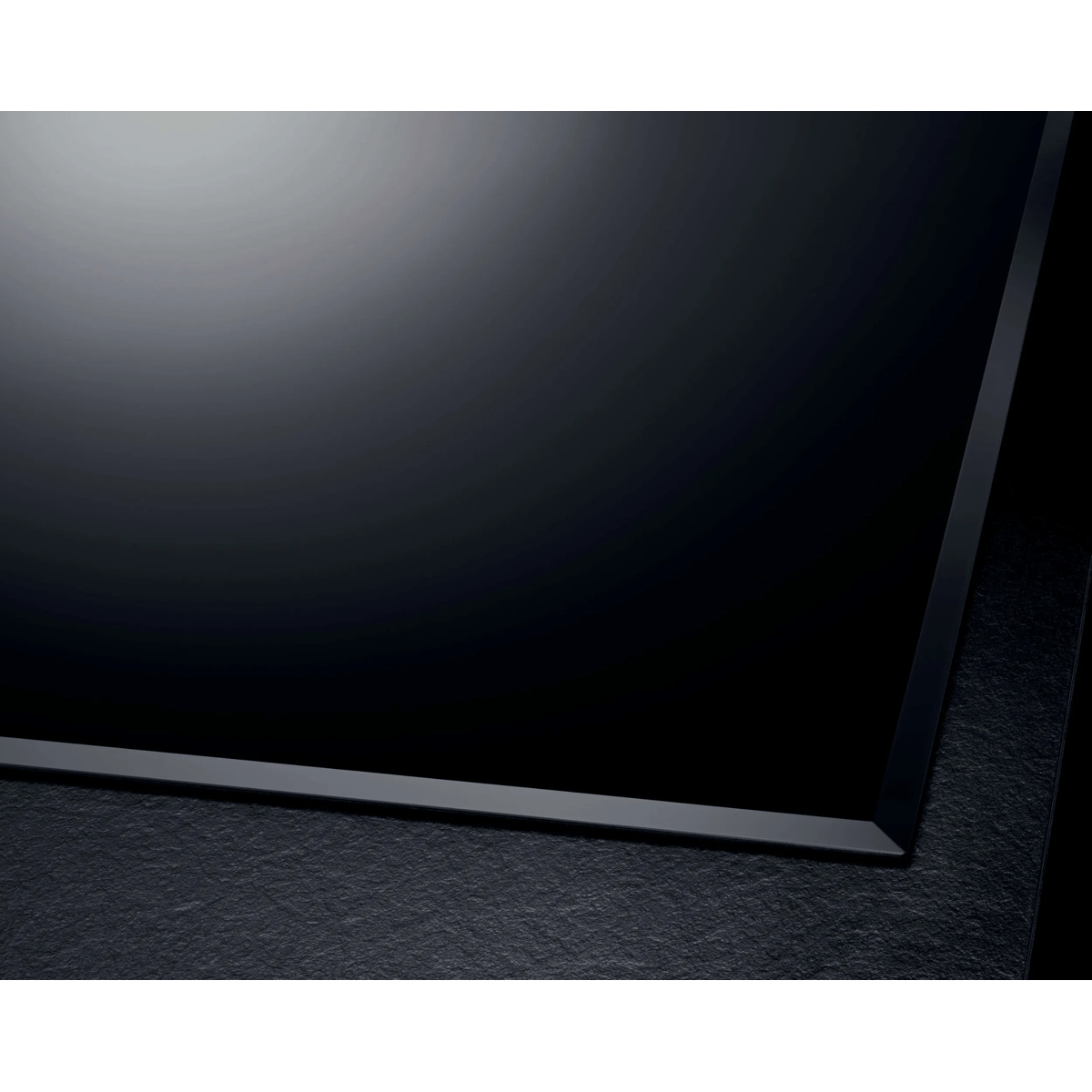

| Edge profile | Bevel |
| Hob cover | No |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
| Number of boosters | 4 |
| Number of power levels | 14 |
| Frying sensor | No |
| Automatic setting for pan size | Yes |
| Bridge function | Yes |
| Hob²Hood function | Yes |
| Boil control function | No |
| Certification | CE|DEMKO|UL|WABE |
Ergonomics
| Specification | Value |
|---|---|

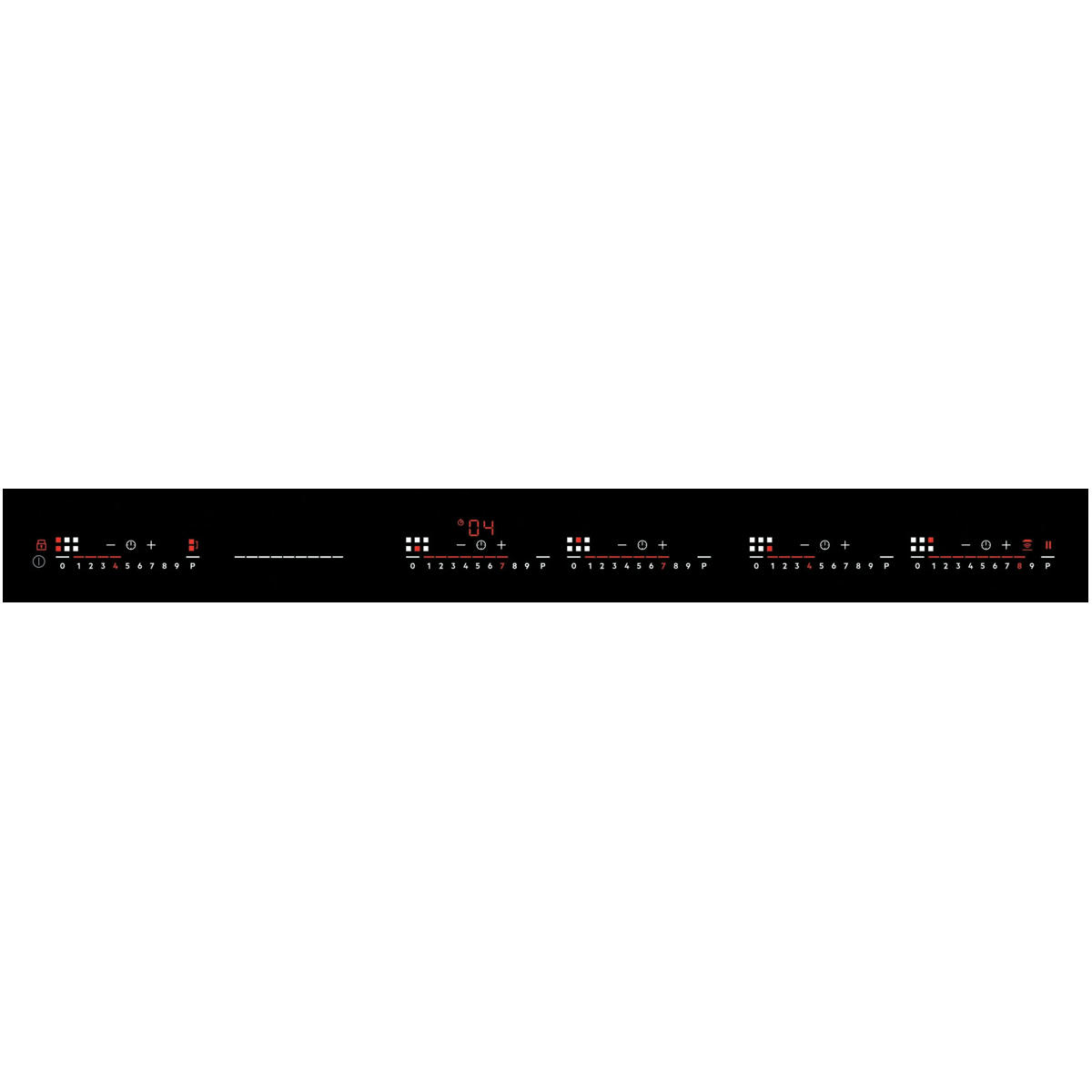

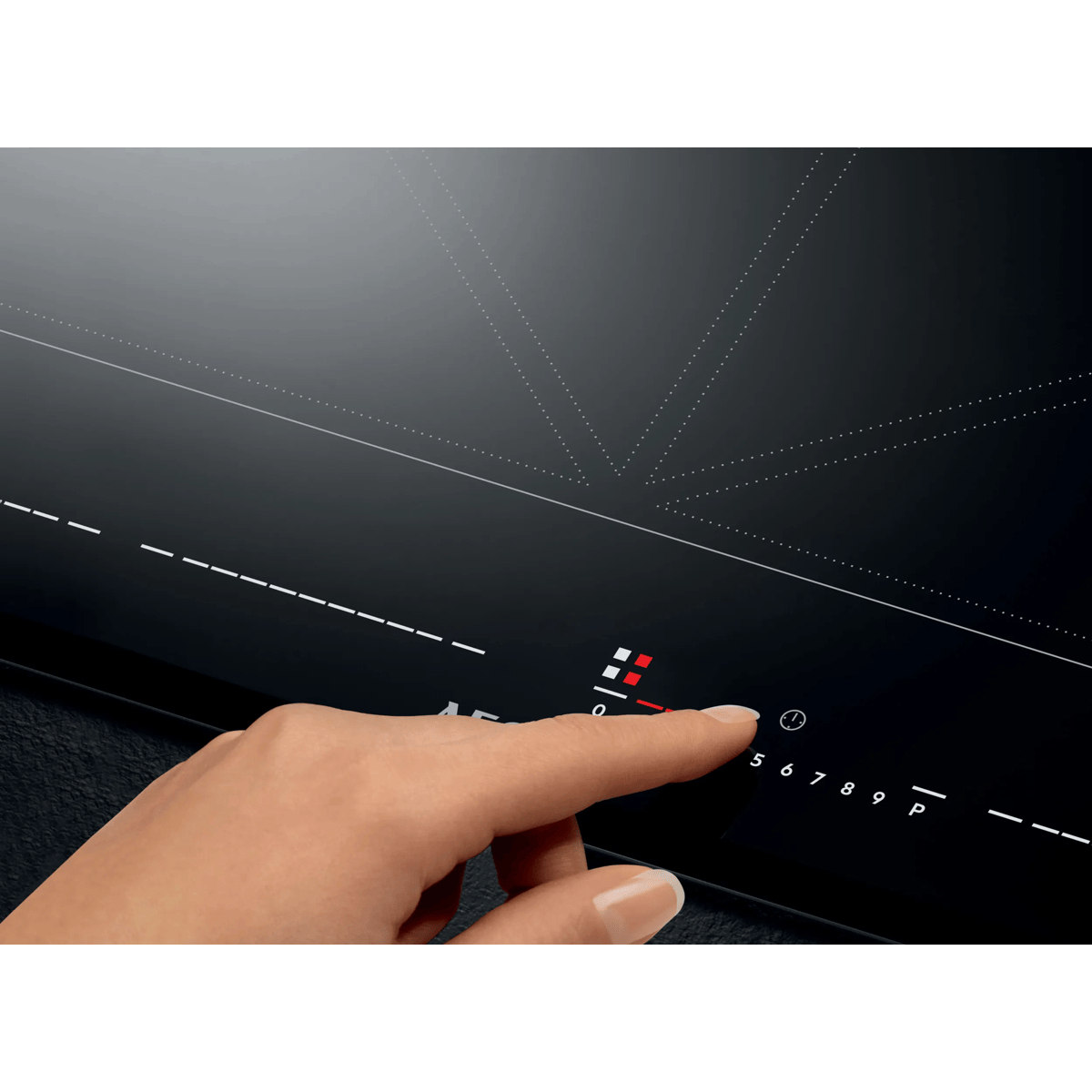

| Control type | Touch |
| Control position | Front |
| Built-in display | Yes |
| Timer | Yes |
| Residual time indicator | Yes |
| Buzzer | Yes |
| Electronic ignition | No |
| Flame failure device | No |
| Residual heat indicator | Yes |
| Child lock | Yes |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| Connected load (electric) | 7200 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 220-240/400 2N |
| Power plug | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 780 mm |
| Depth | 520 mm |
| Weight | 20.5 kg |
| Cord length | 1.5 m |
| Installation compartment width | 75 cm |
| Installation compartment depth | 49 cm |
| Installation compartment height | 6 cm |
Packaging data
| Specification | Value |
|---|---|
| Package volume | 73660 cm³ |
| Package width | 880 mm |
| Package depth | 620 mm |
| Package height | 135 mm |
| Package weight | 22.9 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
