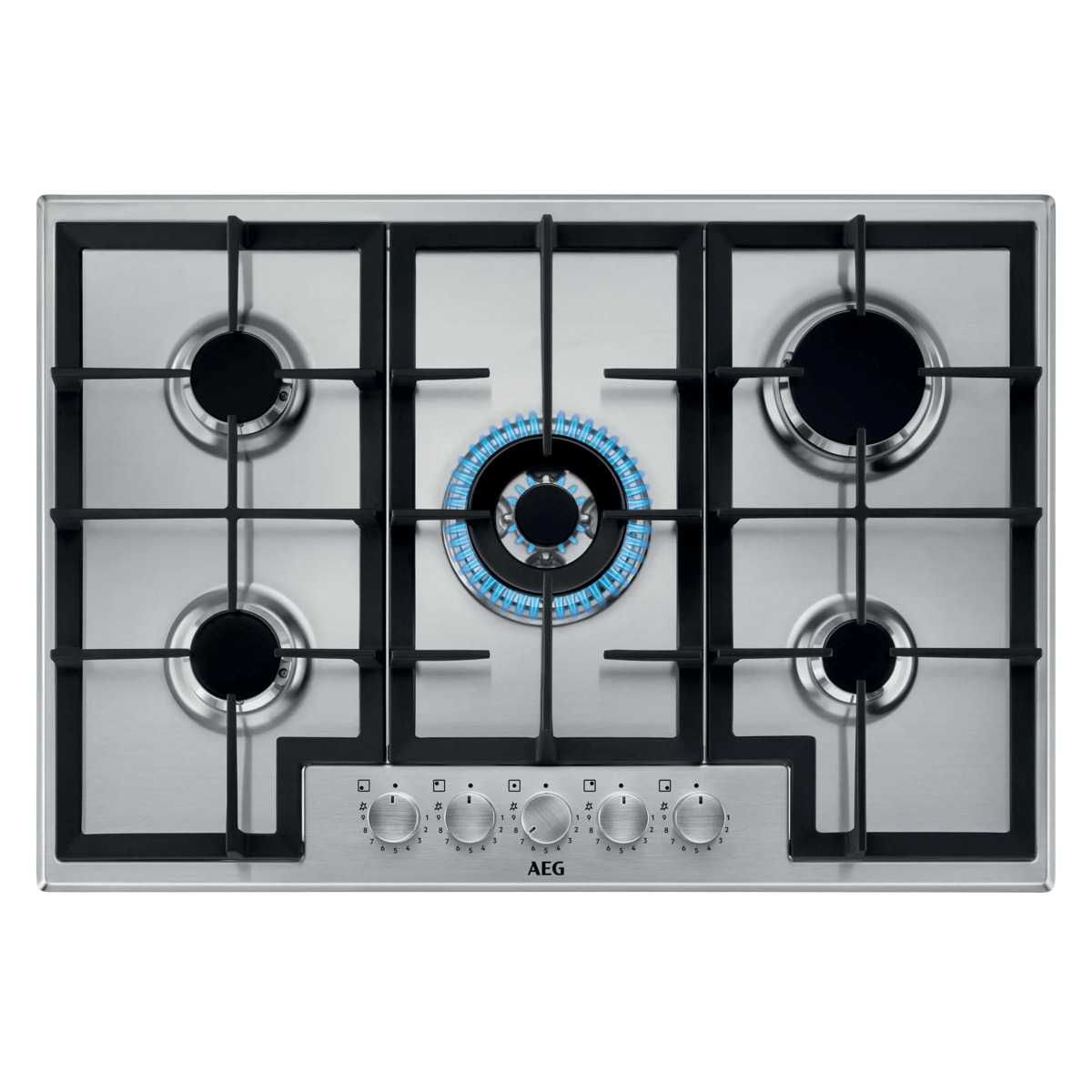

HGB75420SM Stainless steel Built-in
75 cm Gas 5 zone(s)
Model HGB75420SMPart no. 949 630 993EAN 7332543735921
74 specifications
- Weight13.5 kg
- ColourStainless steel
- Boost functionNo
- Control typeRotary
- AC input frequency50/60 Hz
- Width745 mm
Overview
- Weight
- 13.5 kg
- Colour
- Stainless steel
- Boost function
- No
- Control type
- Rotary
- AC input frequency
- 50/60 Hz
- Width
- 745 mm
- Brand
- AEG
- Category
- Hob
- Model
- HGB75420SM
- Part number
- 949 630 993
- EAN / UPC
- 7332543735921
- Also known as
- AEG HGB75420SM Stainless steel Built-in 75 cm Gas 5 zone(s)
Specifications
74 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Colour name | Acciaio INOX |
| Appliance placement | Built-in |
| Hob width size | 75 cm |
| Hob type | Gas |
| Top surface type | Stainless steel |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 5 zone(s) |
| Number of electric cooking zones | 0 zone(s) |
| Cooking zone 1 type | Regular |
| Cooking zone 1 diameter | 70 mm |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power | 1900 W |
| Cooking zone 1 power source | Electric |
| Cooking zone 1 shape | Round |
| Cooking zone 2 type | Regular |
| Cooking zone 2 diameter | 70 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Gas |
| Cooking zone 2 shape | Round |
| Cooking zone 2 power | 1900 W |
| Cooking zone 3 type | Simmer |
| Cooking zone 3 diameter | 54 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Gas |
| Cooking zone 3 shape | Round |
| Cooking zone 3 power | 1000 W |
| Cooking zone 4 type | Large |
| Cooking zone 4 diameter | 100 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Gas |
| Cooking zone 4 shape | Round |
| Cooking zone 4 power | 3000 W |
| Cooking zone 5 type | Wok |
| Cooking zone 5 diameter | 122 mm |
| Cooking zone 5 position | Central |
| Cooking zone 5 power source | Gas |
| Cooking zone 5 shape | Round |
| Cooking zone 5 power | 4000 W |
| Wok burner | No |
| Flexible cooking zone | No |
| Number of simultaneously used cooking zones | 5 |
| Knobs colour | Stainless steel |
| Frame type | Frameless |
Performance
| Specification | Value |
|---|---|
| Boost function | No |
| Number of power levels | 9 |
| Frying sensor | No |
| Hob²Hood function | No |
| Boil control function | No |
| Certification | UL |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Rotary |
| Control position | Top front |
| Built-in display | No |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
| Residual heat indicator | No |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 220-240 V |
| Gas type | NG + LPG (Propane/Butane) |
| Natural gas calorific type | High-calorific gas (H-gas) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 745 mm |
| Depth | 510 mm |
| Weight | 13.5 kg |
| Cord length | 1.1 m |
| Installation compartment width | 56 cm |
| Installation compartment depth | 48 cm |
| Installation compartment height | 4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package volume | 92760 cm³ |
| Package width | 880 mm |
| Package depth | 620 mm |
| Package height | 170 mm |
| Package weight | 14.2 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL |
