HF704193NB Black Built-in
90 cm Combi 5 zone(s)
Model HF704193NBPart no. 949 751 018EAN 7332543996469
74 specifications
- Weight16.9 kg
- ColourBlack
- Boost functionYes
- Control typeRotary
- Built-in hoodNo
- AC input frequency50/60 Hz
Overview
- Weight
- 16.9 kg
- Colour
- Black
- Boost function
- Yes
- Control type
- Rotary
- Built-in hood
- No
- AC input frequency
- 50/60 Hz
- Brand
- AEG
- Category
- Hob
- Model
- HF704193NB
- Part number
- 949 751 018
- EAN / UPC
- 7332543996469
- Also known as
- AEG HF704193NB Black Built-in 90 cm Combi 5 zone(s)
Specifications
74 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Nero |
| Appliance placement | Built-in |
| Hob width size | 90 cm |
| Hob type | Combi |
| Top surface type | Glass |
| Number of cooking zones | 5 zone(s) |
| Number of gas cooking zones | 2 zone(s) |
| Number of electric cooking zones | 3 zone(s) |
| Cooking zone 1 diameter | 78 mm |
| Cooking zone 1 position | Right front |
| Cooking zone 1 power | 1900 W |
| Cooking zone 1 power source | Gas |
| Cooking zone 1 shape | Round |
| Cooking zone 2 diameter | 124 mm |
| Cooking zone 2 position | Right rear |
| Cooking zone 2 power source | Gas |
| Cooking zone 2 shape | Round |
| Cooking zone 2 power | 2700 W |
| Cooking zone 3 diameter | 180 mm |
| Cooking zone 3 position | Left front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 boost | 2800 W |
| Cooking zone 3 power | 1800 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 4 position | Left rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 boost | 2800 W |
| Cooking zone 4 power | 1800 W |
| Cooking zone 5 diameter | 180/280 mm |
| Cooking zone 5 position | Central |
| Cooking zone 5 power source | Electric |
| Cooking zone 5 boost | 3600 W |
| Cooking zone 5 power | 1800 W |
| Wok burner | No |
| Flexible cooking zone | Yes |
| Control panel colour | Black |
| Knobs colour | Black |
| Frame type | Frameless |
Performance
| Specification | Value |
|---|---|
| Boost function | Yes |
| Number of boosters | 3 |
| Number of power levels | 9 |
| Frying sensor | No |
| Bridge function | Yes |
| Hob²Hood function | No |
| Boil control function | No |
| Stop & Go function | Yes |
| Certification | UL (EU) |
Ergonomics
| Specification | Value |
|---|---|
| Control type | Rotary |
| Control position | Front |
| Built-in display | Yes |
| Timer | Yes |
| Timer type | Digital |
| Buzzer | Yes |
| Electronic ignition | Yes |
| Electronic ignition type | One hand ignition |
| Residual heat indicator | Yes |
| Child lock | Yes |
Cooker hood
| Specification | Value |
|---|---|
| Built-in hood | No |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 220-240/400 2N |
| Gas type | NG + LPG (Propane/Butane) |
| Natural gas calorific type | High-calorific gas (H-gas) |

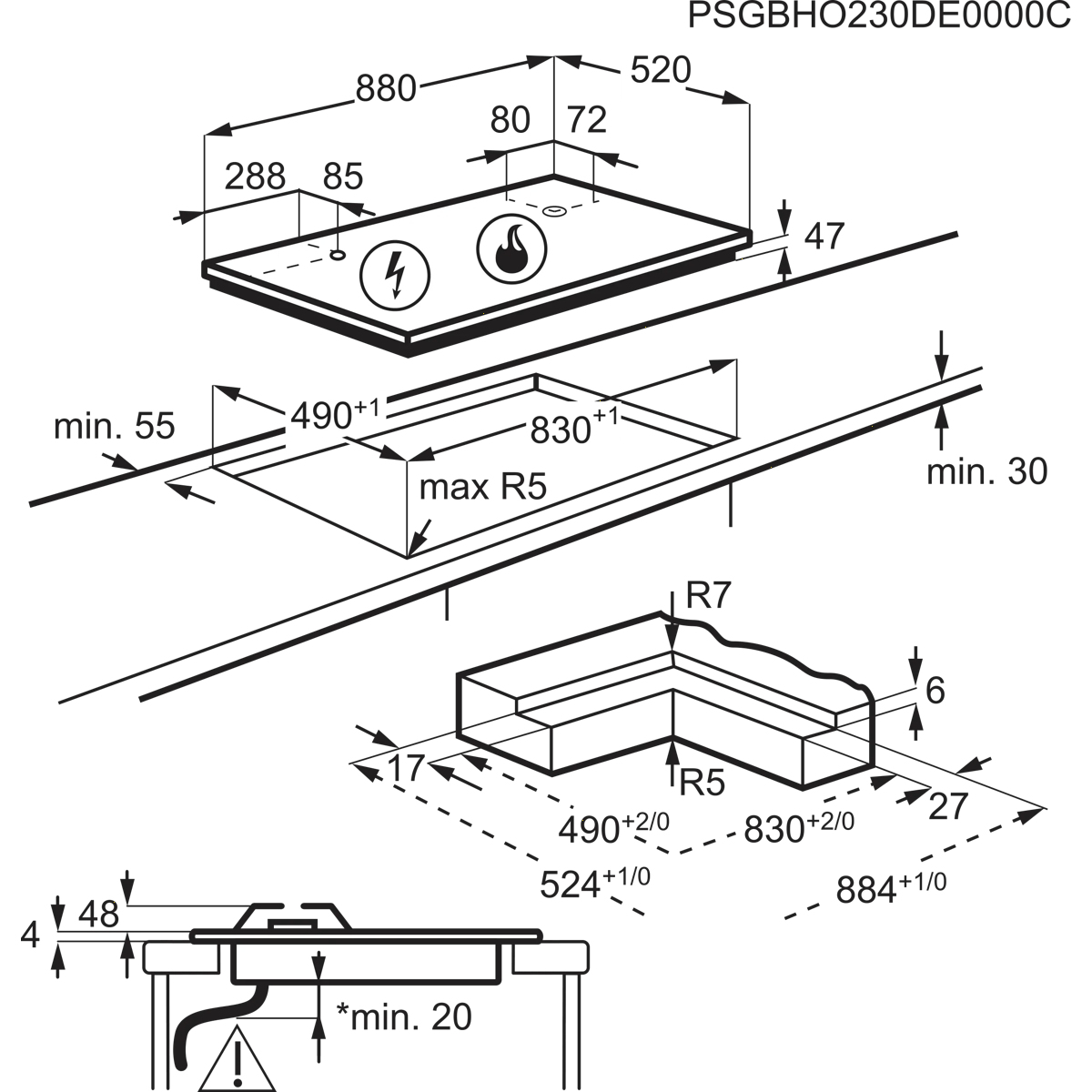

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 880 mm |
| Depth | 520 mm |
| Weight | 16.9 kg |
| Installation compartment width | 83 cm |
| Installation compartment depth | 49 cm |
Packaging data
| Specification | Value |
|---|---|
| Package volume | 140810 cm³ |
| Package width | 1000 mm |
| Package depth | 640 mm |
| Package height | 220 mm |
| Package weight | 19.4 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL |
