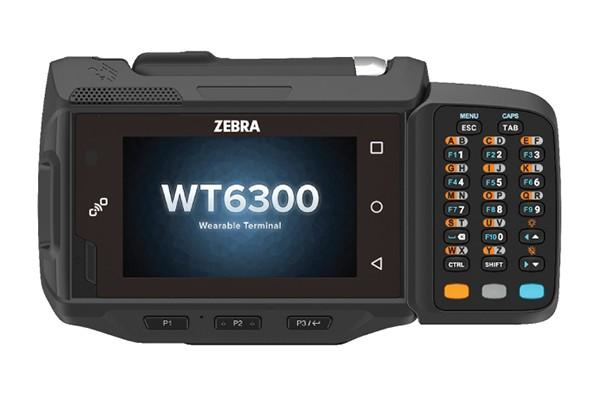

WT6300 handheld mobile computer
8.13 cm (3.2") 800 x 480 pixels Touchscreen 256 g Black
Model WT6300Part no. WT63B0-TX0QNENAEAN 5704174871378
48 specifications
- Display8.13 cm (3.2")
- Resolution800 x 480 pixels
- ProcessorSnapdragon
- Memory3 GB
- Battery3350 mAh
- OSAndroid
Overview
- Display
- 8.13 cm (3.2")
- Resolution
- 800 x 480 pixels
- Processor
- Snapdragon
- Memory
- 3 GB
- Battery
- 3350 mAh
- OS
- Android
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- WT6300
- Part numbers
- WT63B0-TX0QNENA, KT-WT63-TS0QYERW, KT-WT63-KS0QYERW, KT-WT63-KX0QYERW, KT-WT63-TX0QYERW, WT63B0-TS0QNETR +13 more
- EAN / UPC
- 5704174871378, 8596375239791, 663056033967, 5704174990727 +4 more
- Also known as
- Zebra WT6300 handheld mobile computer 8.13 cm (3.2") 800 x 480 pixels Touchscreen 256 g Black
Specifications
48 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.13 cm (3.2") |
| Display resolution | 800 x 480 pixels |
| Display | LED |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display glass type | Gorilla Glass |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Flash memory | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.2 GHz |
| Processor family | Snapdragon |
| Processor model | 660 |
| Processor manufacturer | Qualcomm |
| Number of cores | 8 |
| Built-in processor | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | Yes |
| Security algorithms | EAP-PWD, EAP-TLS, EAP-TTLS, FIPS 140-2, LEAP, PEAP, WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Mono |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| Yes | |
| Multimedia Messaging Service (MMS) | Yes |
| Drop proof | 120 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 11 |
| Operating system upgradeable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 256 g |
| Width | 89 mm |
| Depth | 121 mm |
| Height | 34 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3350 mAh |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Quantity per pack | 1 pc(s) |
