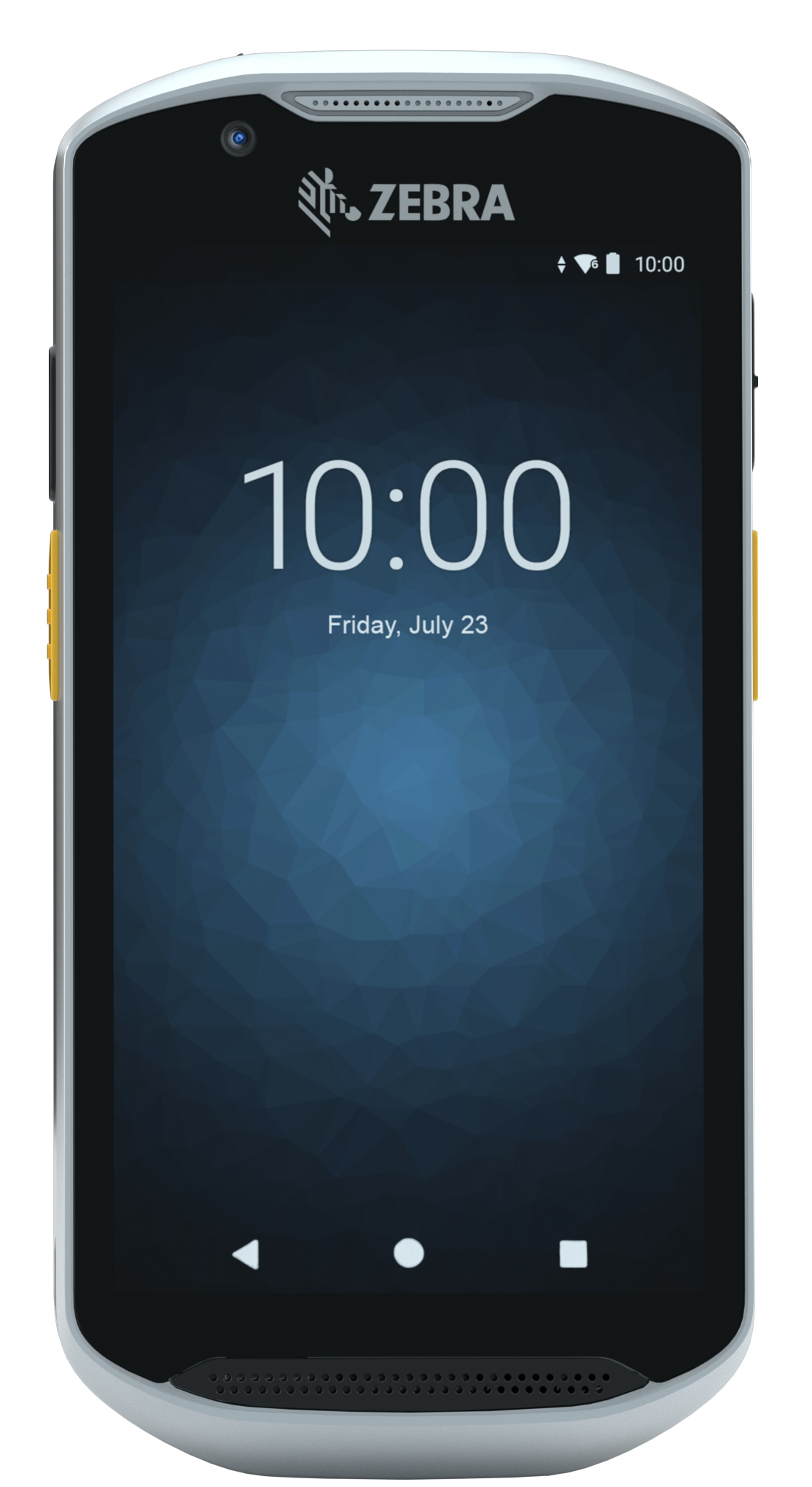

TC52AX handheld mobile computer
12.7 cm (5") 1920 x 1080 pixels Touchscreen 260 g Grey
Model TC52AXEAN 8596375250239
67 specifications
- Display12.7 cm (5")
- Resolution1920 x 1080 pixels
- ProcessorSnapdragon
- Memory4 GB
- Camera13 MP
- Battery4150 mAh
Overview
- Display
- 12.7 cm (5")
- Resolution
- 1920 x 1080 pixels
- Processor
- Snapdragon
- Memory
- 4 GB
- Camera
- 13 MP
- Battery
- 4150 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC52AX
- Part numbers
- TC52AX, TC520L-1YFMU7P-NA, TC520L-1YLMU7T-NA, TC520L-1YLMU7P-NA, TC520L-1YFMU7T-NA, TC520L-1HCMH7P-FT +10 more
- EAN / UPC
- 8596375250239, 8596375250185, 8596375250192, 5715063044063 +5 more
- Also known as
- Zebra TC52AX handheld mobile computer 12.7 cm (5") 1920 x 1080 pixels Touchscreen 260 g Grey
Specifications
67 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 12.7 cm (5") |
| Display resolution | 1920 x 1080 pixels |
| Display | LED |
| Touch technology | Dual-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display glass type | Gorilla Glass |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Flash memory | 64 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.45 GHz |
| Processor family | Snapdragon |
| Processor model | 660 |
| Processor manufacturer | Qualcomm |
| Number of cores | 8 |
| Built-in processor | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | Edge, GPRS, GSM, HSPA, HSPA+, LTE, UMTS |
| WCDMA bands supported | 850,900,1900,2100 MHz |
| GSM bands supported | 850,900,1800,1900 MHz |
| Near Field Communication (NFC) | Yes |
| Compliance industry standards | TAA, ARCore Google, Android Enterprise |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Mono |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Barcode reader | Yes |
| Scanner type | 1D/2D |
| Yes | |
| Multimedia Messaging Service (MMS) | Yes |
| Vibrating alert | Yes |
| Drop proof | 120 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Magnetometer | Yes |
| Proximity sensor | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 11 |
Power
| Specification | Value |
|---|---|
| Fast charging | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 260 g |
| Width | 75.5 mm |
| Depth | 159 mm |
| Height | 18.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4150 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
