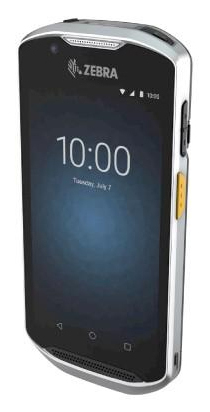

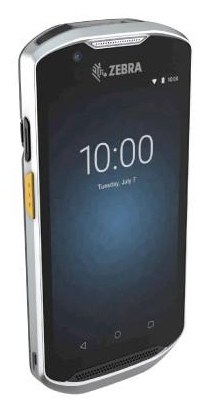

Zebra TC57x handheld mobile computer

TC57x handheld mobile computer

12.7 cm (5") 1920 x 1080 pixels Touchscreen 249 g Black, Silver

Model TC57xPart no. TC57HO-1XFMU6P-A6EAN 8596375239623

66 specifications

Display12.7 cm (5")
Resolution1920 x 1080 pixels
ProcessorQualcomm
Memory4 GB
Camera13 MP
Battery4150 mAh

See all specifications

Overview

Display: 12.7 cm (5")
Resolution: 1920 x 1080 pixels
Processor: Qualcomm
Memory: 4 GB
Camera: 13 MP
Battery: 4150 mAh

Brand: Zebra
Category: Handheld Mobile Computer
Model: TC57x
Part numbers: TC57HO-1XFMU6P-A6, TC57HO-1XFMU6T-NA, TC57JO-1XFMU6P-TK, TC57HO-1XFMU6P-NA
EAN / UPC: 8596375239623, 5704174263845
Also known as: Zebra TC57x handheld mobile computer 12.7 cm (5") 1920 x 1080 pixels Touchscreen 249 g Black, Silver

Specifications

66 specifications in 17 groups

Display

Specification	Value
Display diagonal	12.7 cm (5")
Display resolution	1920 x 1080 pixels
Touch technology	Dual-touch
Touchscreen	Yes
Touchscreen type	Capacitive
Display glass type	Gorilla Glass

Memory

Specification	Value
Internal memory	4 GB
Flash memory	32 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB

Processor

Specification	Value
Processor frequency	2.45 GHz
Processor family	Qualcomm
Processor model	SD660
Number of cores	8

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
SIM card type	NanoSIM + eSIM
Data network	Edge, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
GSM bands supported	850,900,1800,1900 MHz
Antenna type	2x2
Near Field Communication (NFC)	Yes
Security algorithms	AES, EAP-TLS, EAP-TTLS, TKIP, WMM, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise

GPS Performance

Specification	Value
GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes
BeiDou	Yes
Galileo	Yes

Camera

Specification	Value
Built-in camera	Yes
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Front camera resolution (numeric)	5 MP
Auto focus	Yes

Audio

Specification	Value
Built-in microphone	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1

Performance

Specification	Value
Product colour	Black, Silver
Barcode reader	Yes
Scanner type	1D/2D
Phone function	Yes
Google Mobile Services (GMS) supported	Yes
Vibrating alert	Yes
Drop proof	120 cm
Drop proof	Yes
International Protection (IP) code	IP68

Sensors

Specification	Value
Ambient light sensor	Yes
Accelerometer	Yes
Gyroscope	Yes
Magnetometer	Yes
Pressure sensor	Yes
Proximity sensor	Yes

Software

Specification	Value
Operating system installed	Android
Operating system version	10

Power

Specification	Value
Fast charging	Yes

Weight & dimensions

Specification	Value
Weight	249 g
Width	18.6 mm
Depth	75.5 mm
Height	155 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Technical details

Specification	Value
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV

Battery

Specification	Value
Battery capacity	4150 mAh

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
