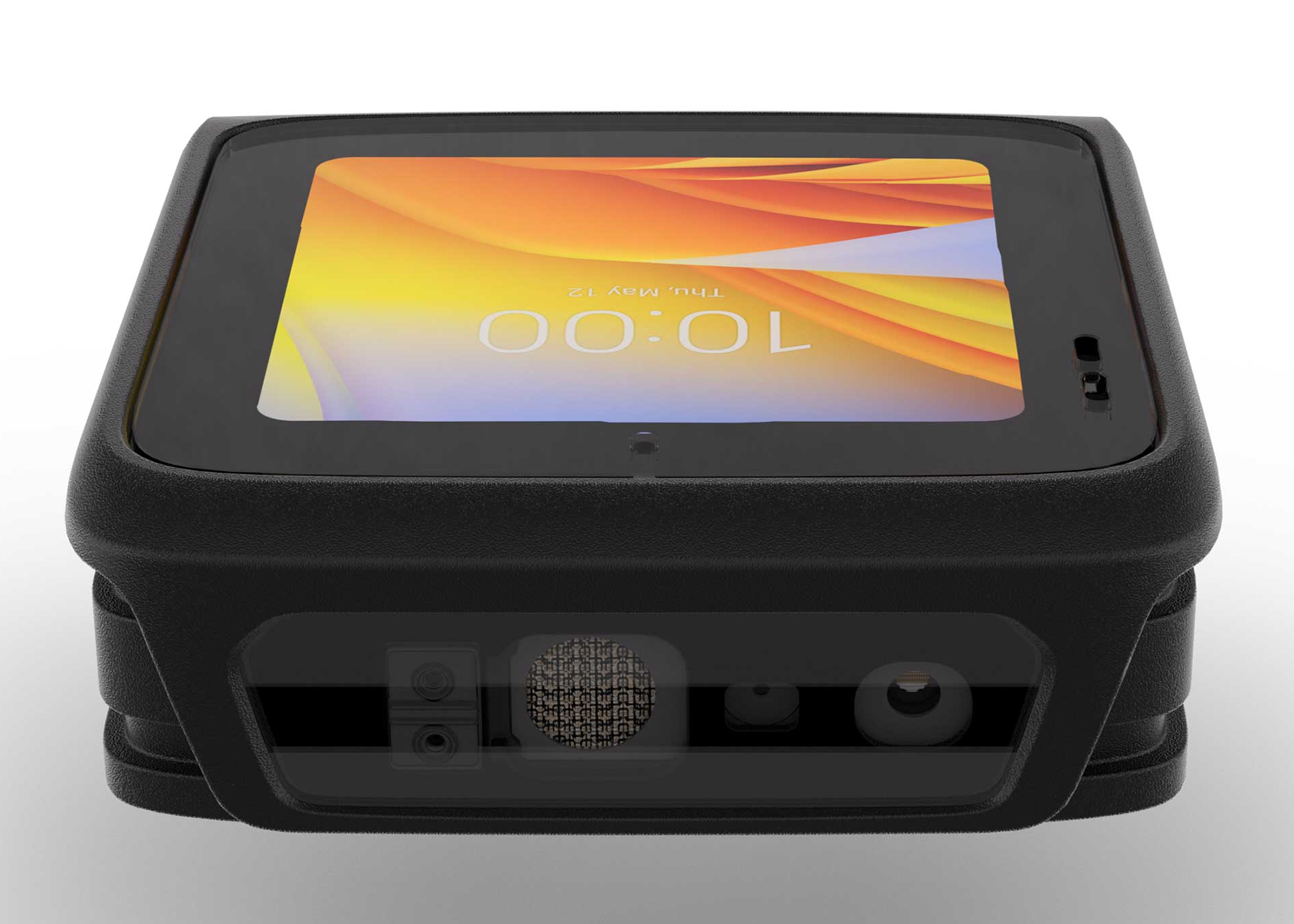

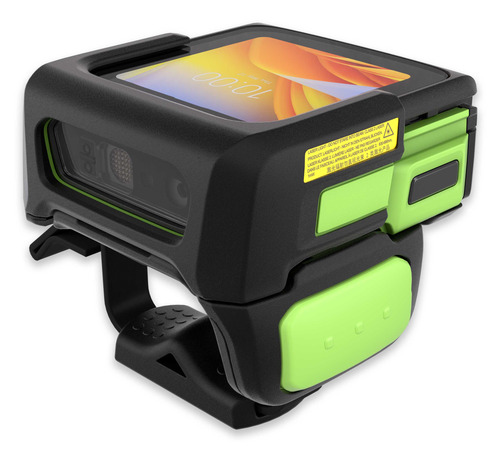

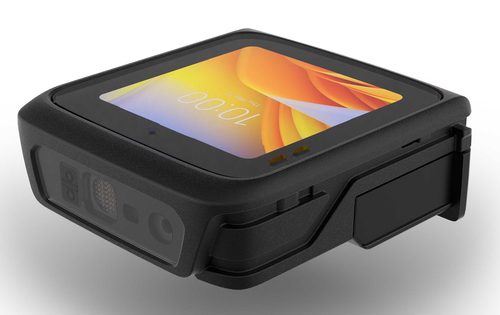

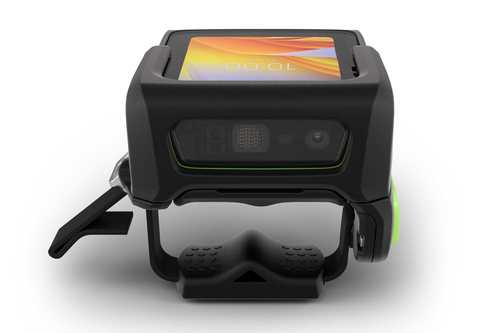

WS501 handheld mobile computer
5.08 cm (2") 460 x 460 pixels Touchscreen 134 g Black
Model WS501Part no. WS5012-0F3J1020EA6
42 specifications
- Display5.08 cm (2")
- Resolution460 x 460 pixels
- ProcessorQualcomm
- Memory3 GB
- Battery1300 mAh
- OSAndroid
Overview
- Display
- 5.08 cm (2")
- Resolution
- 460 x 460 pixels
- Processor
- Qualcomm
- Memory
- 3 GB
- Battery
- 1300 mAh
- OS
- Android
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- WS501
- Part numbers
- WS5012-0F3J1020EA6, WS5012-0B3J1020EA6, WS5012-0Y3M103PENA, WS5012-0D3M1030ENA, WS5012-0U3M1030ENA
- Also known as
- Zebra WS501 handheld mobile computer 5.08 cm (2") 460 x 460 pixels Touchscreen 134 g Black
Specifications
42 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 5.08 cm (2") |
| Display resolution | 460 x 460 pixels |
| Display | AMOLED |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display glass type | Gorilla Glass |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Flash memory | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor family | Qualcomm |
| Processor manufacturer | Qualcomm |
| Built-in processor | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bluetooth Low Energy (BLE) | Yes |
| Antenna type | 2x2 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w |
| Near Field Communication (NFC) | Yes |
| Security algorithms | EAP-PWD, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, WEP, WPA, WPA2, WPA3 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| Scanner type | 2D |
| Drop proof | 180 cm |
| Drop proof | Yes |
| Handle(s) | Yes |
| International Protection (IP) code | IP65 |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 134 g |
| Width | 62 mm |
| Depth | 64 mm |
| Height | 28 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 1300 mAh |
