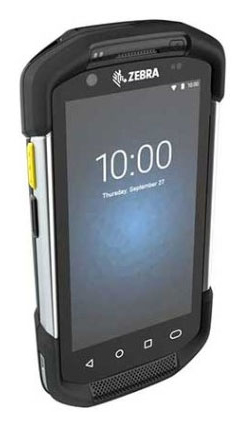

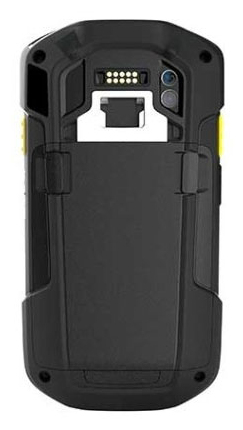

TC77 handheld mobile computer
11.9 cm (4.7") 1280 x 720 pixels Touchscreen 376 g Black, Silver
Model TC77Part no. TC77HL-5MG24BG-A6EAN 8596375213920
55 specifications
- Display11.9 cm (4.7")
- Resolution1280 x 720 pixels
- ProcessorSnapdragon
- Memory4 GB
- Camera13 MP
- Battery4620 mAh
Overview
- Display
- 11.9 cm (4.7")
- Resolution
- 1280 x 720 pixels
- Processor
- Snapdragon
- Memory
- 4 GB
- Camera
- 13 MP
- Battery
- 4620 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC77
- Part numbers
- TC77HL-5MG24BG-A6, TC77HL-5ME24BG-NA, TC77HL-6ME34BG-A6, TC77HL-7ME24BG-A6, TC77HL-5MJ24BG-A6, TC77HL-7MJ24BG-A6 +19 more
- EAN / UPC
- 8596375213920, 5704174889762, 8596375213944, 5715063100219 +7 more
- Also known as
- Zebra TC77 handheld mobile computer 11.9 cm (4.7") 1280 x 720 pixels Touchscreen 376 g Black, Silver
Specifications
55 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 11.9 cm (4.7") |
| Display resolution | 1280 x 720 pixels |
| Touch technology | Dual-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Flash memory | 32 GB |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.2 GHz |
| Processor family | Snapdragon |
| Processor model | 660 |
| Processor manufacturer | Qualcomm |
| Number of cores | 8 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | 2G, 3G, Edge, GPRS, HSPA, HSPA+, LTE, UMTS |
| GSM bands supported | 850,900,1800,1900 MHz |
| Near Field Communication (NFC) | Yes |
| Security algorithms | AES, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
| GLONASS | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Video recording | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Barcode reader | Yes |
| RFID reader | Yes |
| Linear (1D) barcodes supported | Code 39 |
| 2D (matrix & stacked) barcodes supported | Code 39 |
| Phone function | Yes |
| Drop proof | 180 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP65, IP68 |
| Certification | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 8.1 |
Power
| Specification | Value |
|---|---|
| Battery voltage | 3.7 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 376 g |
| Width | 84 mm |
| Depth | 28 mm |
| Height | 161 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4620 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
