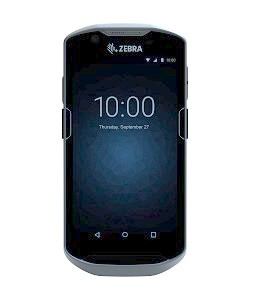

TC57 handheld mobile computer
12.7 cm (5") 1280 x 720 pixels 249 g Black, Silver
Model TC57Part no. KT-TC57HO-1PEZU4P-A6EAN 5706998642707
60 specifications
- Display12.7 cm (5")
- Resolution1280 x 720 pixels
- ProcessorSnapdragon
- Memory4 GB
- Storage32 GB
- Camera13 MP
Overview
- Display
- 12.7 cm (5")
- Resolution
- 1280 x 720 pixels
- Processor
- Snapdragon
- Memory
- 4 GB
- Storage
- 32 GB
- Camera
- 13 MP
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC57
- Part numbers
- KT-TC57HO-1PEZU4P-A6, TC57HO-1PEZU4P-27, TC57HO-1PFZU4P-A6, TC57, TC57HO-1PEZU4P-36, KT-TC57X-A6-PYMT +3 more
- EAN / UPC
- 5706998642707, 8596375213753, 8596375239616, 8596375250413
- Also known as
- Zebra TC57 handheld mobile computer 12.7 cm (5") 1280 x 720 pixels 249 g Black, Silver
Specifications
60 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 12.7 cm (5") |
| Display resolution | 1280 x 720 pixels |
| Display | LED |
| Touch technology | Dual-touch |
| Touchscreen | No |
| Touchscreen type | Capacitive |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Flash memory | 32 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 256 GB |
| Total storage capacity | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.2 GHz |
| Processor family | Snapdragon |
| Processor model | 660 |
| Processor manufacturer | Qualcomm |
| Number of cores | 8 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Data network | 4G |
| Near Field Communication (NFC) | Yes |
| Security algorithms | AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Second camera | Yes |
| Zoom capability | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Barcode reader | Yes |
| Linear (1D) barcodes supported | Code 39 |
| 2D (matrix & stacked) barcodes supported | Code 39 |
| Phone function | Yes |
| Vibrating alert | Yes |
| Drop proof | 120 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP67 |
| Push-to-Talk (PTT) | Yes |
| VPN support | WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS), Miracast WFA (Mobile AP / Personal Hotspot) |
| VoIP | Yes |
| Certification | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 249 g |
| Width | 75.5 mm |
| Depth | 155 mm |
| Height | 18.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4300 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
