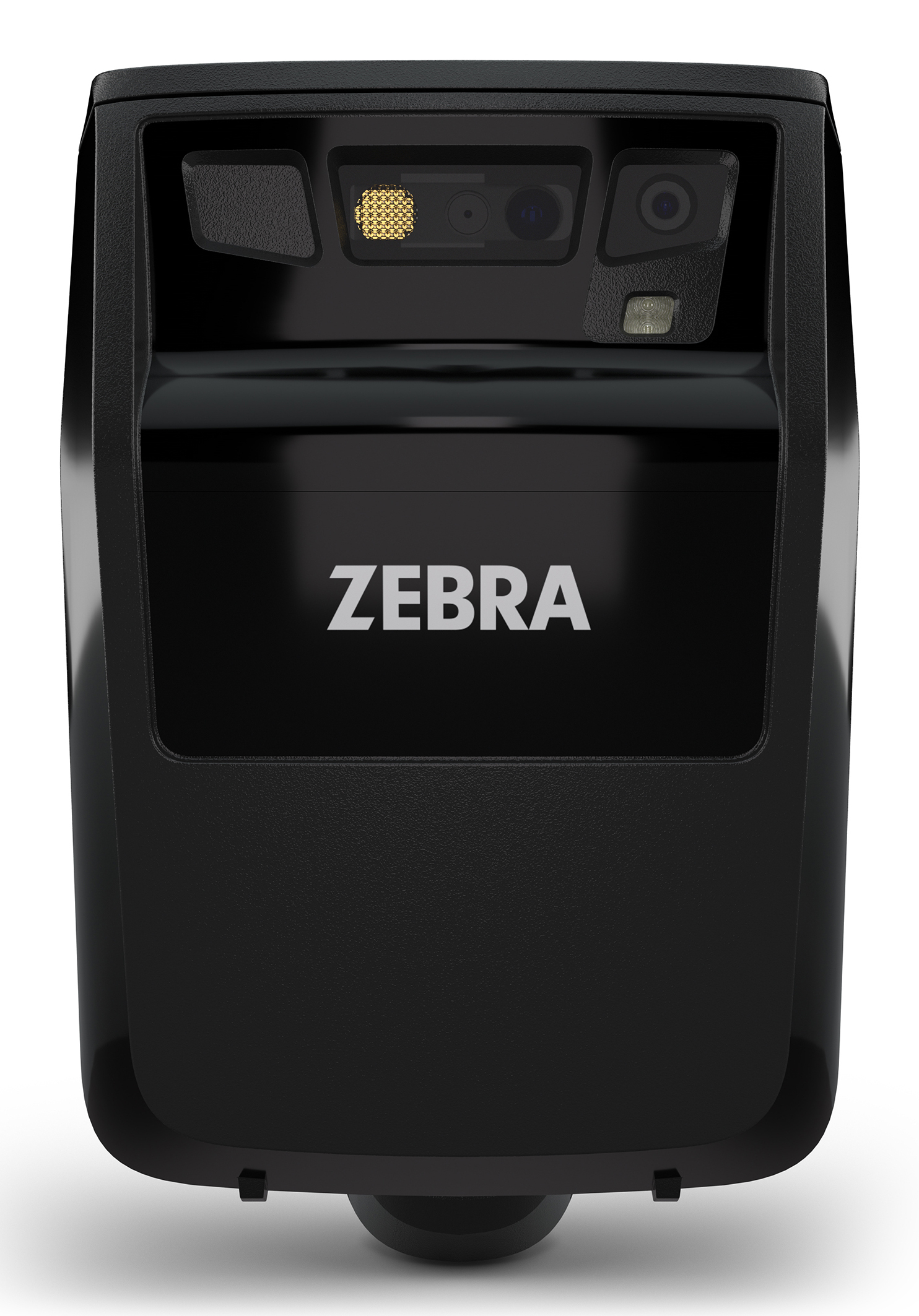

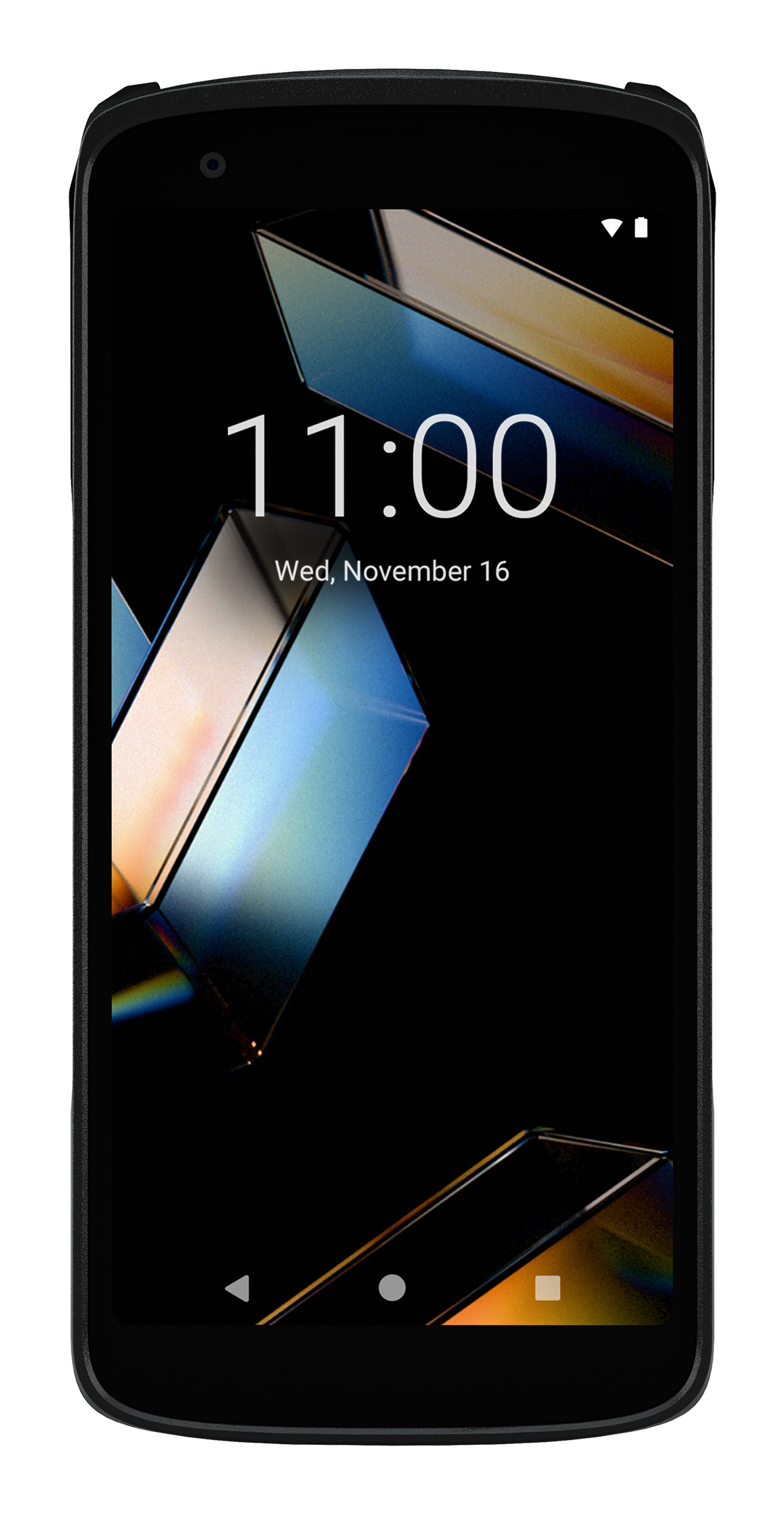

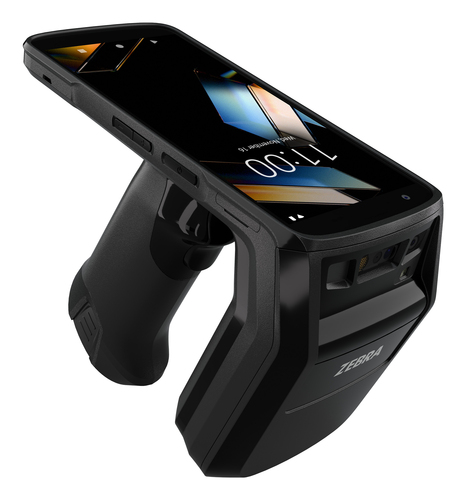

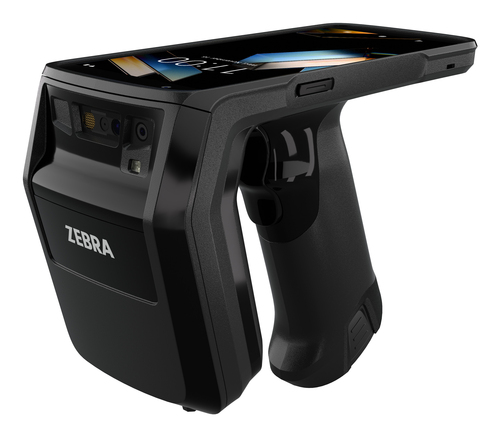

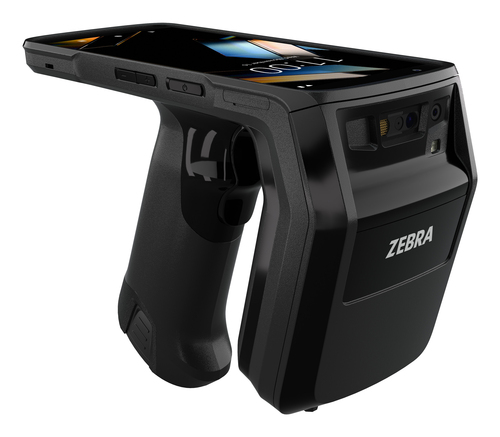

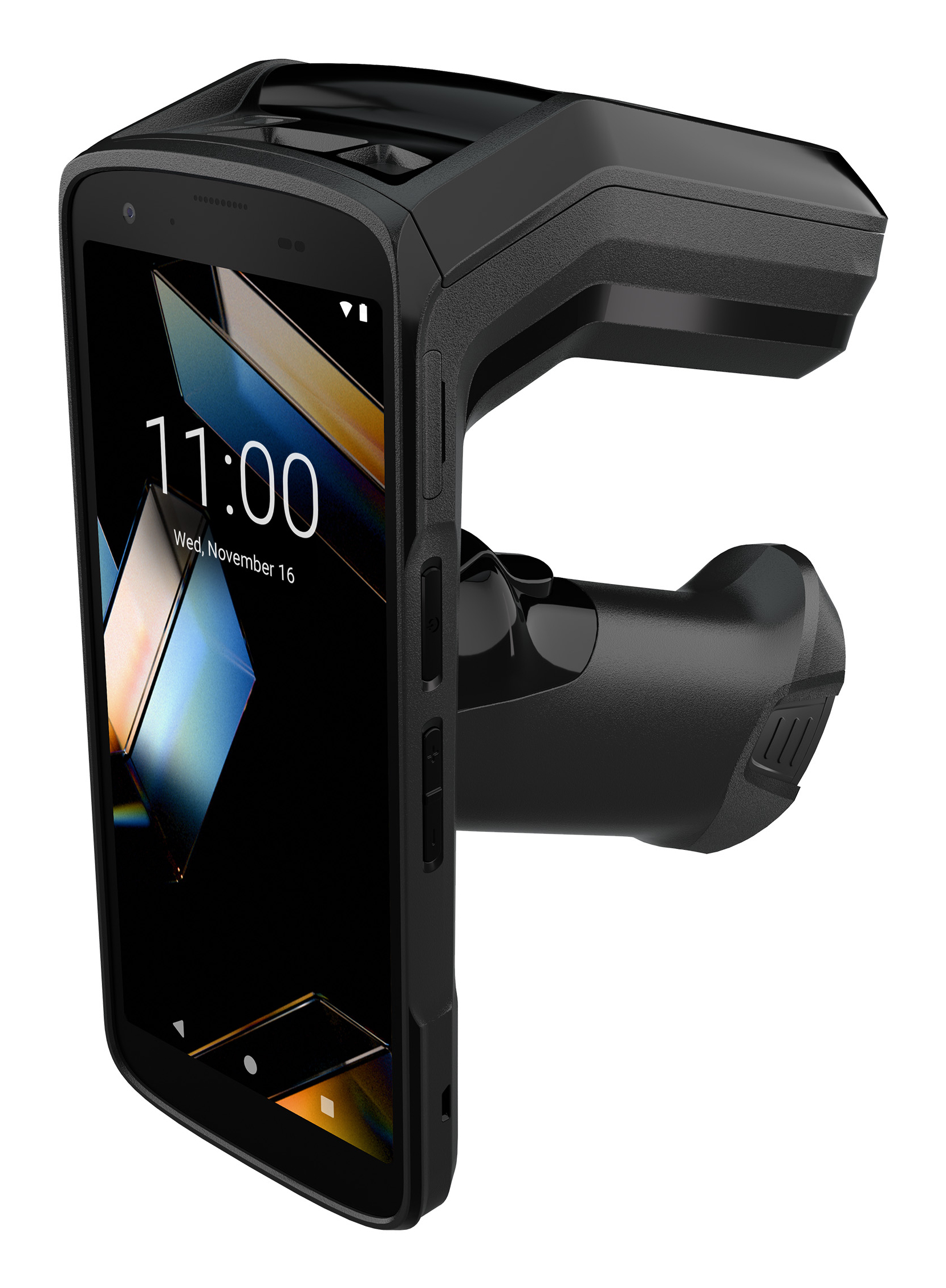

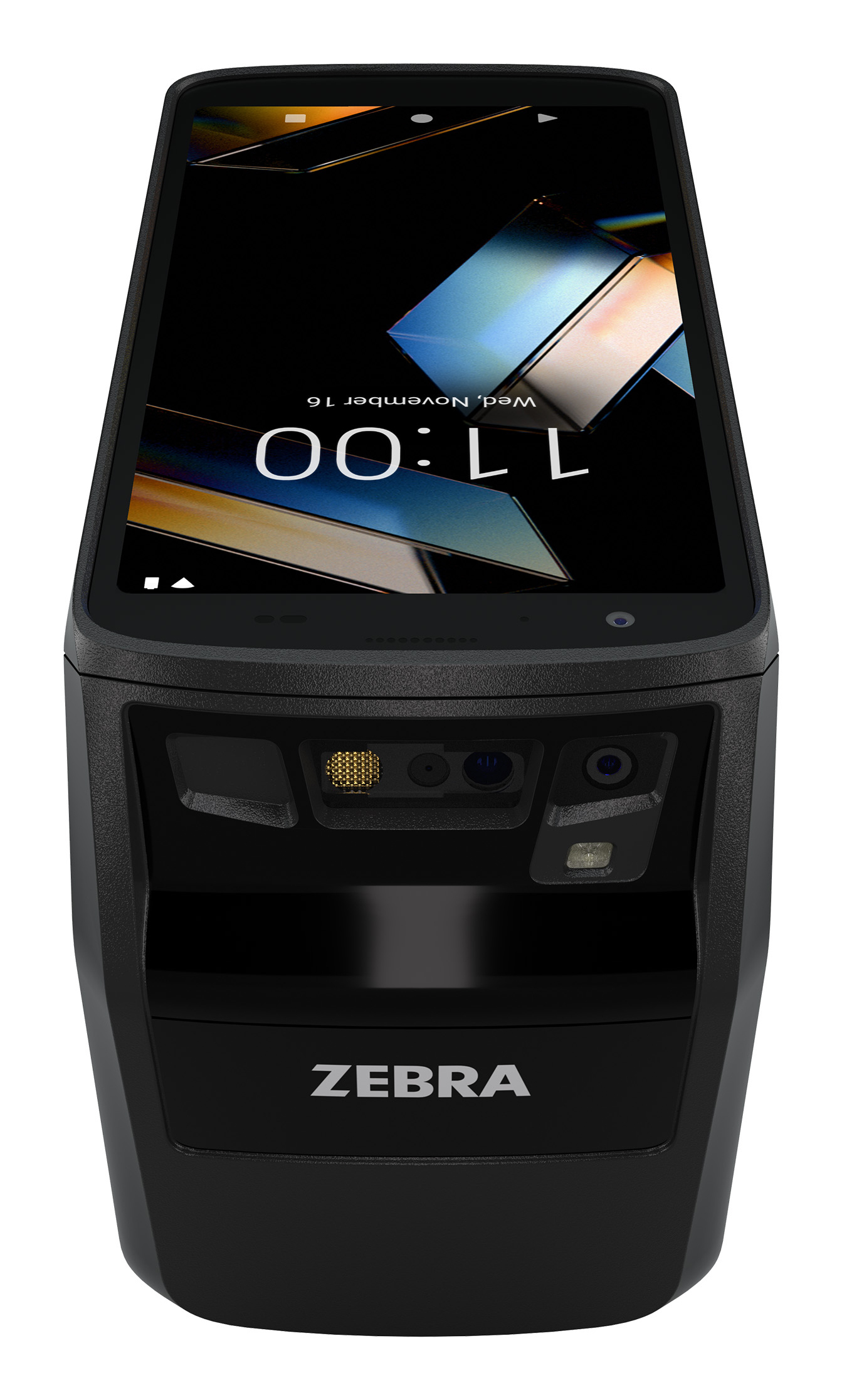

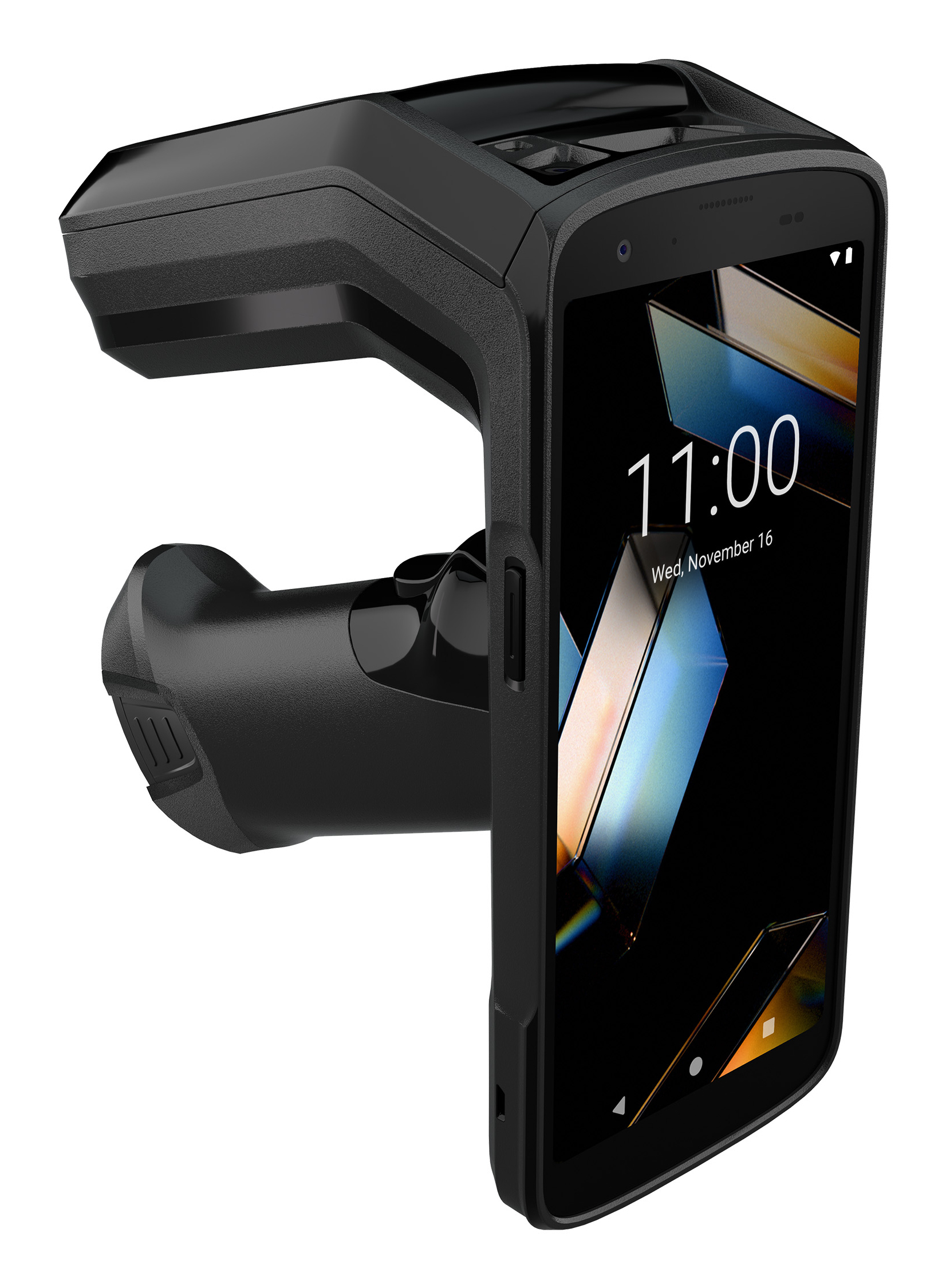

TC22R handheld mobile computer
15.2 cm (6") 1080 x 2160 pixels Touchscreen 569 g Black
Model TC22RPart no. TC2205-0G1250SS-E8
43 specifications
- Display15.2 cm (6")
- Resolution1080 x 2160 pixels
- Processor5430
- Memory6 GB
- Camera16 MP
- Battery7000 mAh
Overview
- Display
- 15.2 cm (6")
- Resolution
- 1080 x 2160 pixels
- Processor
- 5430
- Memory
- 6 GB
- Camera
- 16 MP
- Battery
- 7000 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC22R
- Part numbers
- TC2205-0G1250SS-E8, TC2205-0G1250SS-IL, TC2205-0G1250SS-US, TC2205-0G1250SS-WR, TC2205-0G1250SS-FT
- Also known as
- Zebra TC22R handheld mobile computer 15.2 cm (6") 1080 x 2160 pixels Touchscreen 569 g Black
Specifications
43 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 15.2 cm (6") |
| Display resolution | 1080 x 2160 pixels |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 450 cd/m² |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Flash memory | 64 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.1 GHz |
| Processor model | 5430 |
| Performance cores | 6 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1D, IEEE 802.11w, IEEE 802.11v, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11r, IEEE 802.11i |
| Near Field Communication (NFC) | Yes |
| Security algorithms | EAP-PWD, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, WEP, WPA, WPA-Personal, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPA3-Personal |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 16 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | Yes |
| Scanner type | 1D/2D |
| Vibrating alert | Yes |
| Drop proof | 150 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | Battery level |
| Push-to-Talk (PTT) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 569 g |
| Width | 84 mm |
| Depth | 177 mm |
| Height | 145 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 7000 mAh |
| Battery technology | Lithium Thionyl Chloride (LiSoCl2) |
