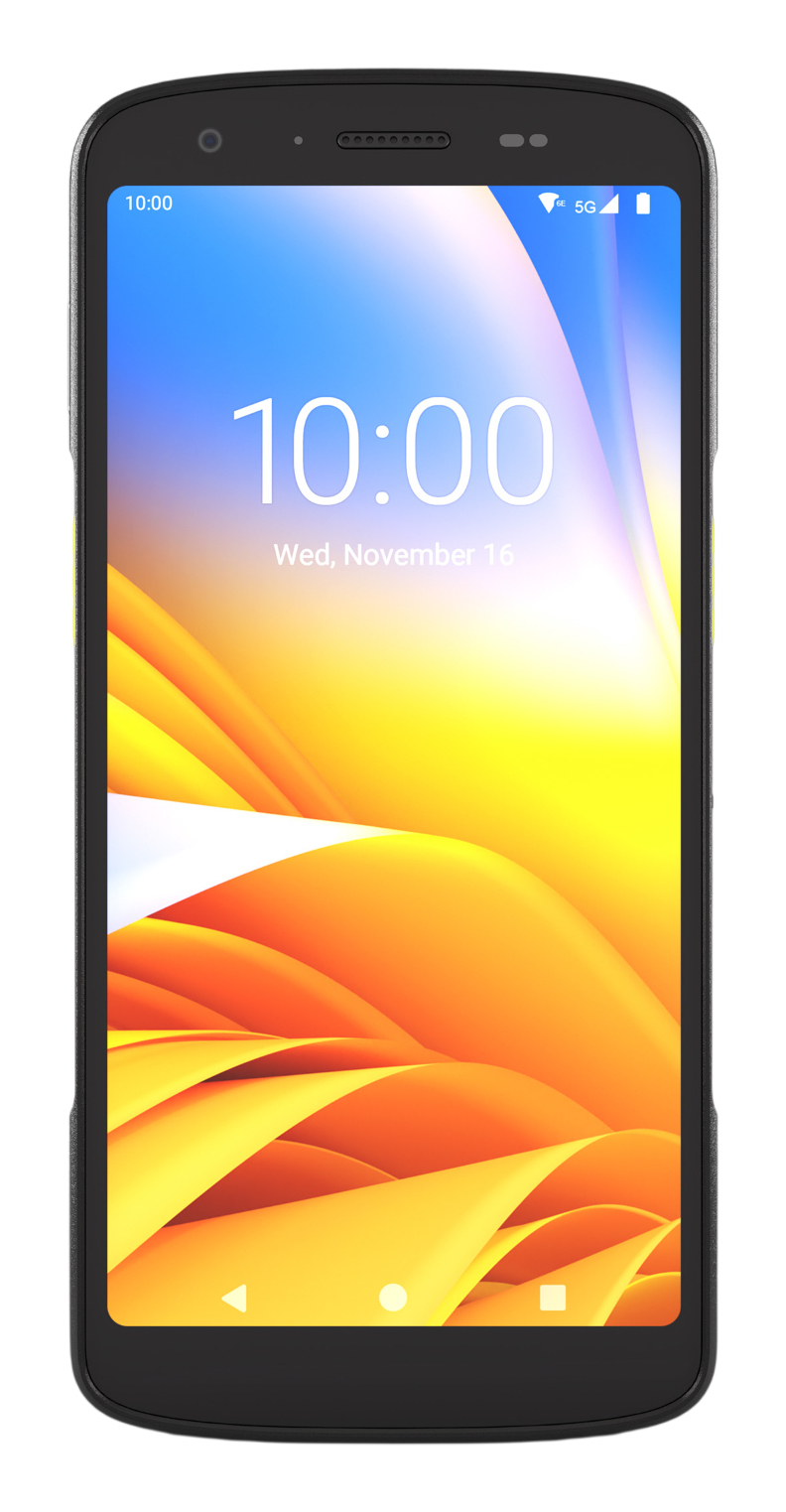

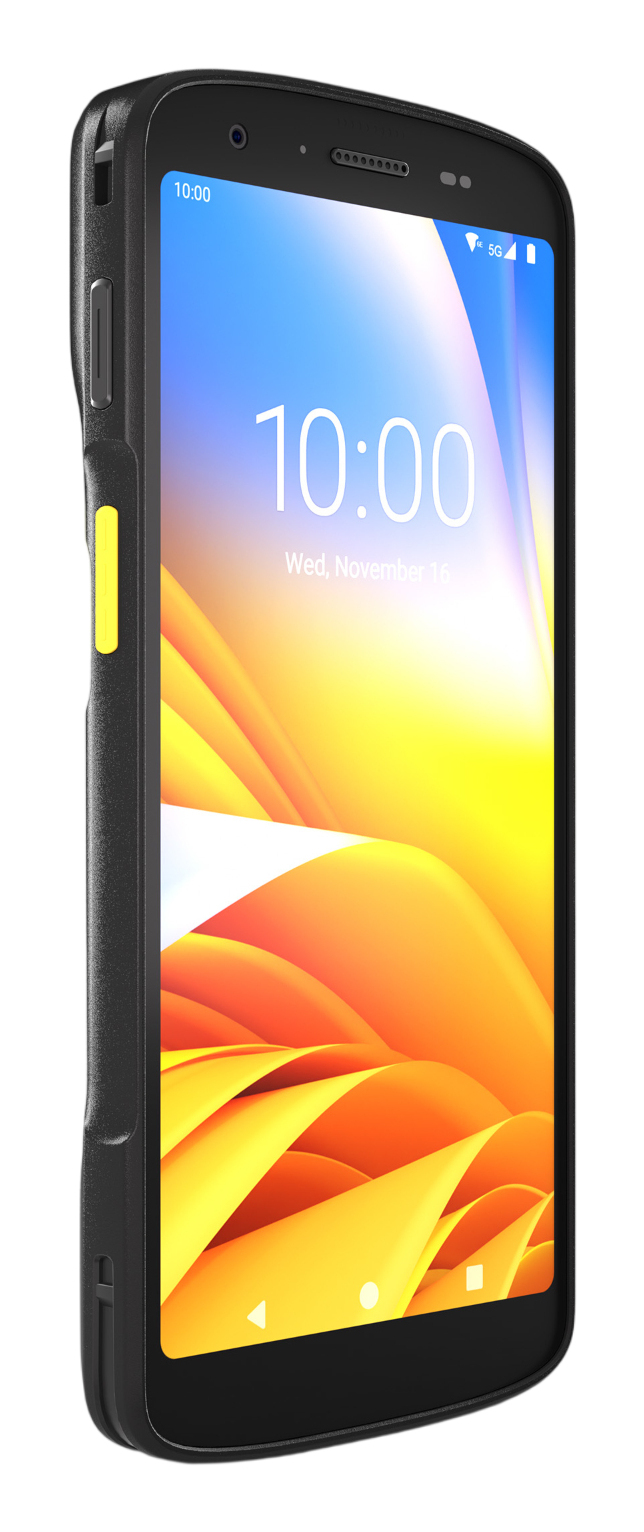

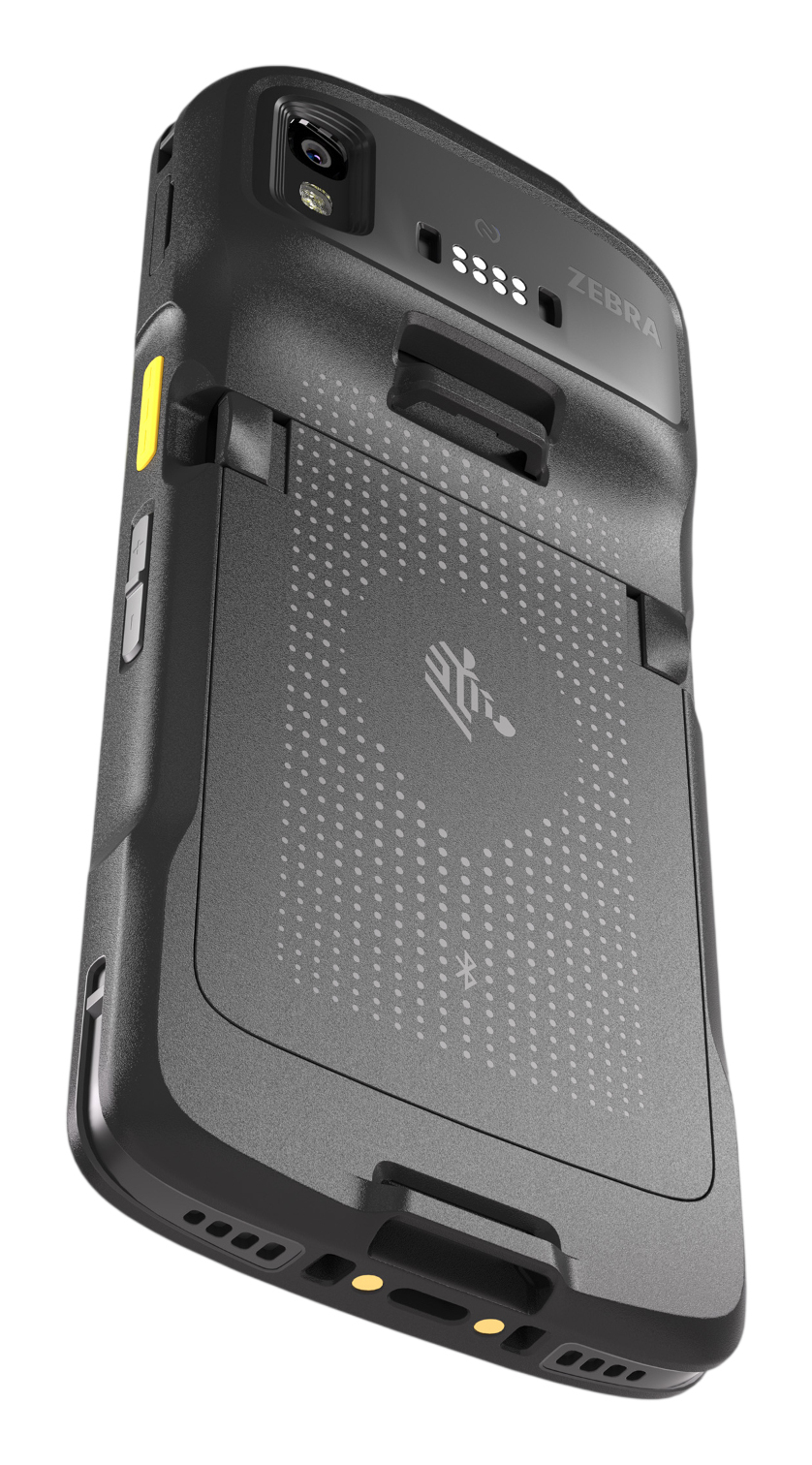

TC22 handheld mobile computer
15.2 cm (6") 1080 x 2160 pixels Touchscreen Black
Model TC22Part no. WLMT0-T22B8ABD8-NAEAN 663056035343
53 specifications
- Display15.2 cm (6")
- Resolution1080 x 2160 pixels
- ProcessorQualcomm
- Memory6 GB
- Camera16 MP
- Battery3800 mAh
Overview
- Display
- 15.2 cm (6")
- Resolution
- 1080 x 2160 pixels
- Processor
- Qualcomm
- Memory
- 6 GB
- Camera
- 16 MP
- Battery
- 3800 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC22
- Part numbers
- WLMT0-T22B8ABD8-NA, WLMT0-T22B8CBD8-NA, WLMT0-T22B6CBC2-A6, WLMT0-T22B8CBD8-A6, WLMT0-T22B6ABC2-A6, WLMT0-T22B8ABD8-A6 +14 more
- EAN / UPC
- 663056035343, 5715063789575, 5715328171794, 000021574887 +7 more
- Also known as
- Zebra TC22 handheld mobile computer 15.2 cm (6") 1080 x 2160 pixels Touchscreen Black
Specifications
53 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 15.2 cm (6") |
| Display resolution | 1080 x 2160 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 450 cd/m² |
| Display glass type | Gorilla Glass |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Flash memory | 64 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.1 GHz |
| Processor family | Qualcomm |
| Processor manufacturer | Qualcomm |
| Built-in processor | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | Not supported |
| Near Field Communication (NFC) | Yes |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 16 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Noise-canceling | Yes |
| Number of microphones | 2 |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Scanner type | 1D/2D |
| Drop proof | 150 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP65, IP68 |
| LED indicators | Yes |
| Push-to-Talk (PTT) | Yes |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Magnetometer | Yes |
| Pressure sensor | Yes |
| Proximity sensor | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system upgradeable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76.3 mm |
| Depth | 12.5 mm |
| Height | 165 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3800 mAh |
