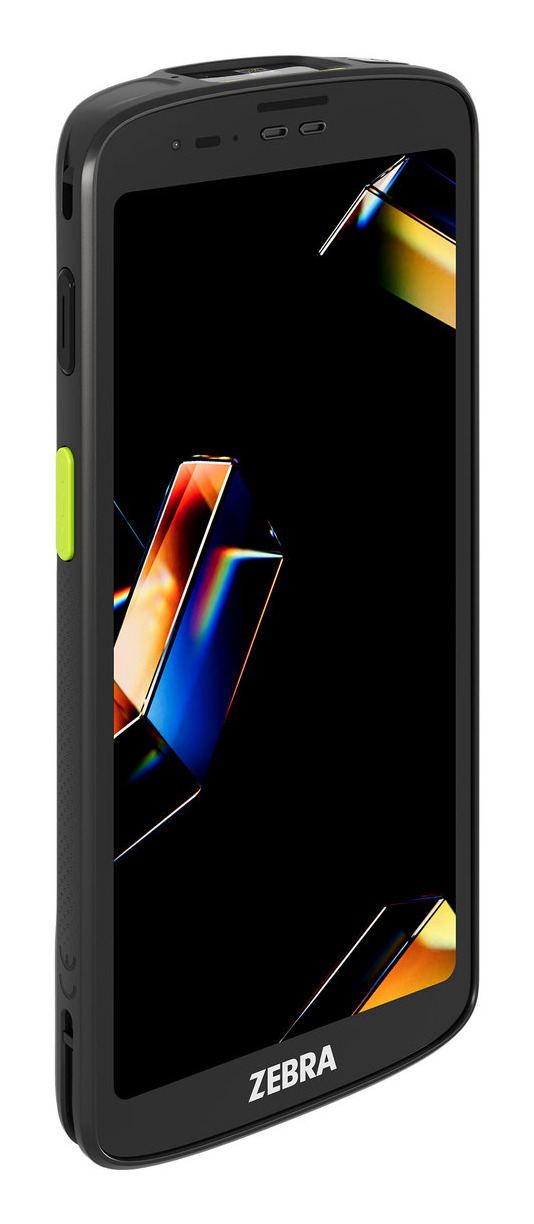

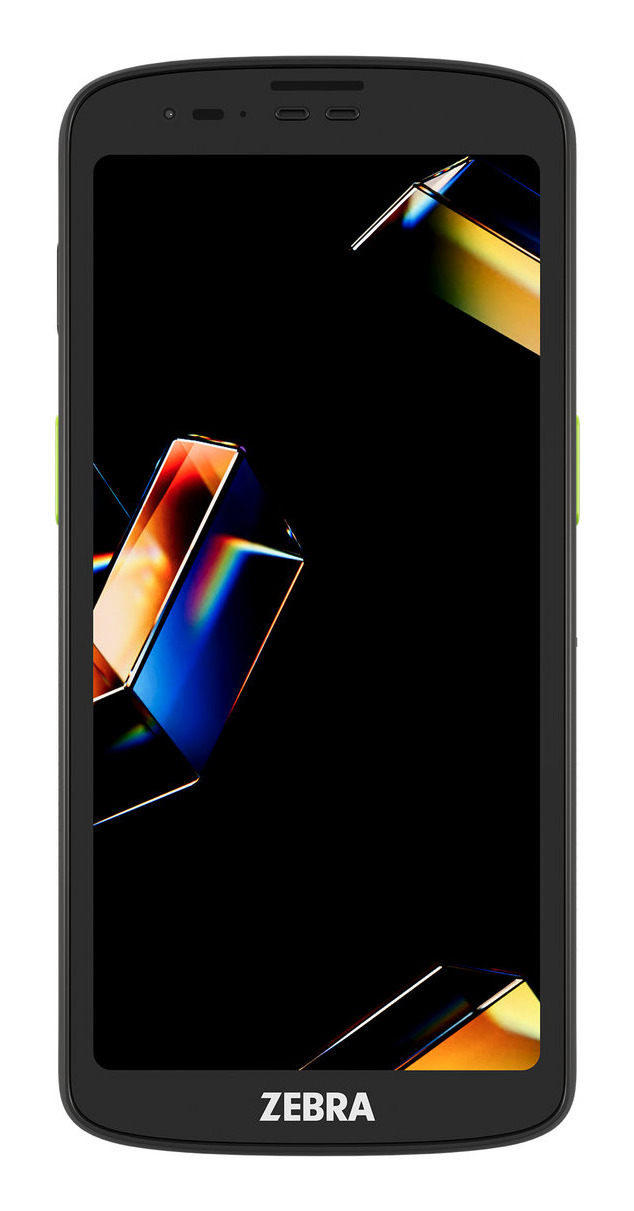

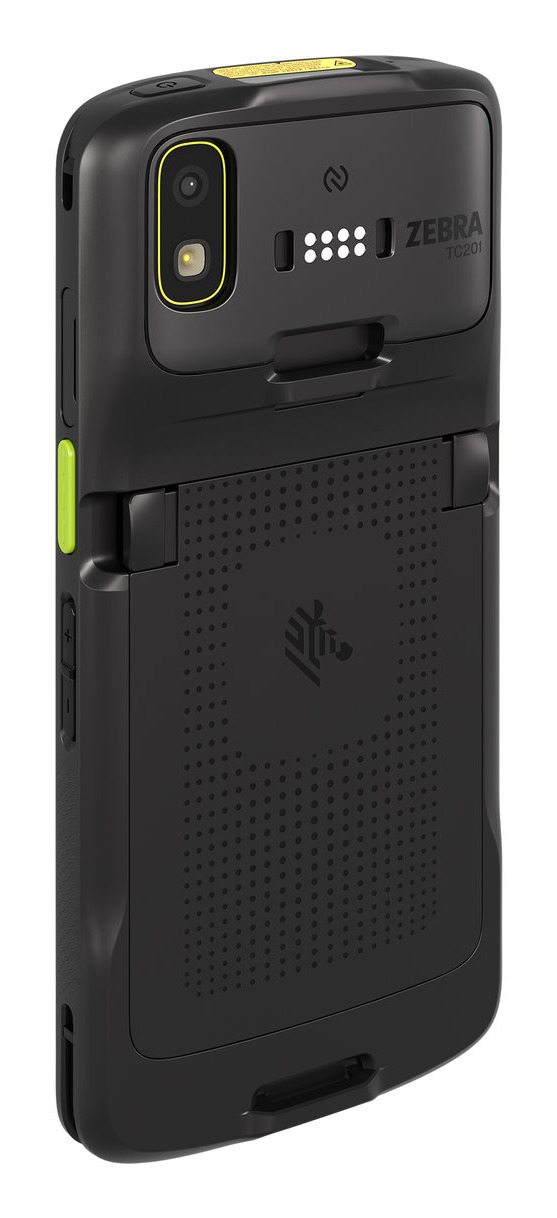

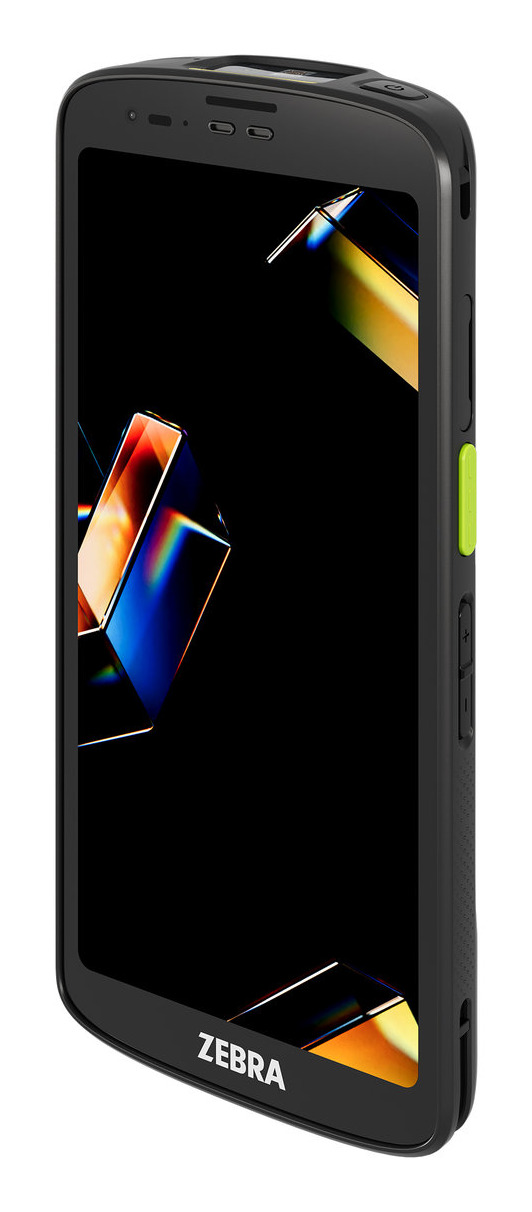

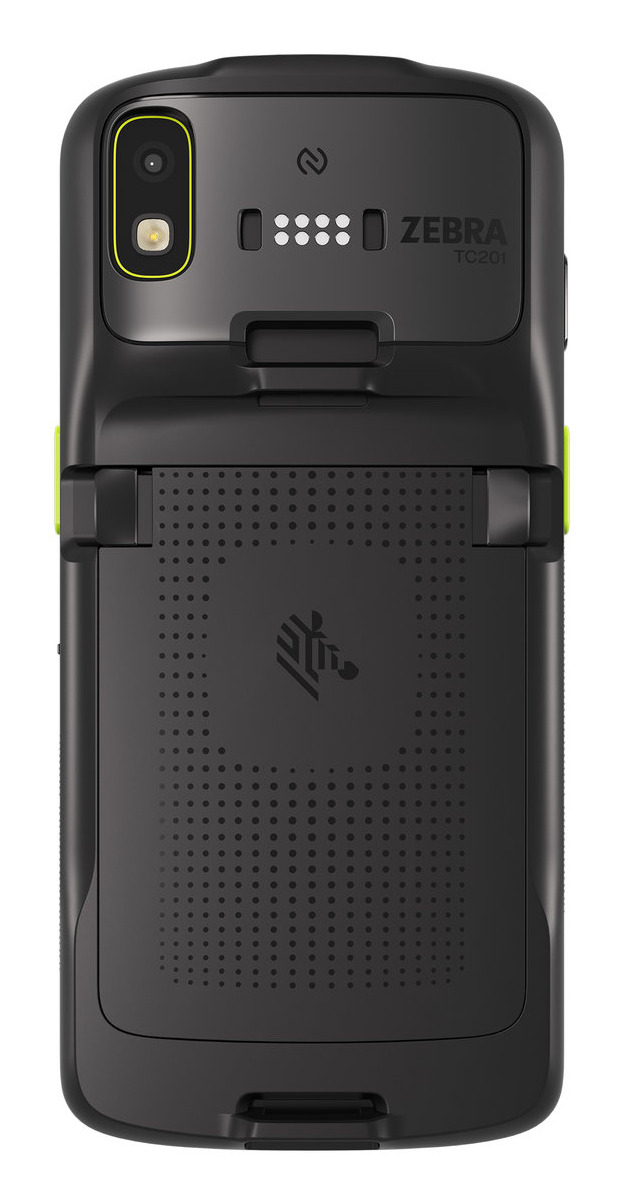

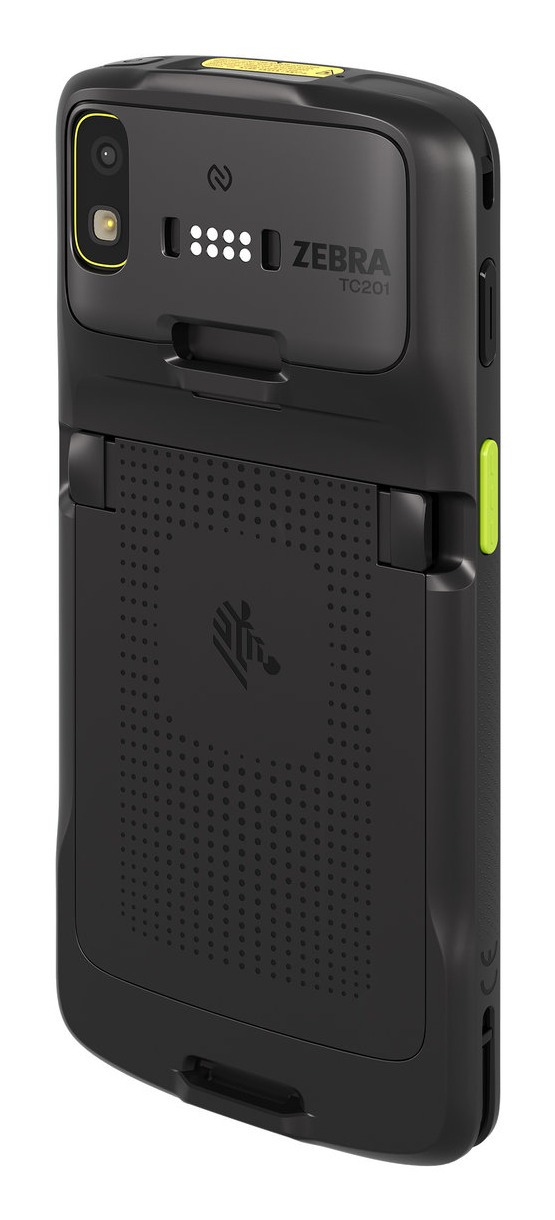

TC201 handheld mobile computer
15.2 cm (6") 2160 x 1080 pixels Touchscreen 245 g Black
Model TC201Part no. TC2010-083P4BA01-A6EAN 5715328385351
60 specifications
- Display15.2 cm (6")
- Resolution2160 x 1080 pixels
- ProcessorQualcomm Dragonwing
- Memory8 GB
- Camera16 MP
- Battery3800 mAh
Overview
- Display
- 15.2 cm (6")
- Resolution
- 2160 x 1080 pixels
- Processor
- Qualcomm Dragonwing
- Memory
- 8 GB
- Camera
- 16 MP
- Battery
- 3800 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- TC201
- Part numbers
- TC2010-083P4BA01-A6, TC2010-083P4BA11-A6, TC2010-0S3P6BA00-A6, TC2010-0S3P6BA00-TR, TC2010-0S3P6BE00-A6, TC201G-383P4BA11-A6 +21 more
- EAN / UPC
- 5715328385351
- Also known as
- Zebra TC201 handheld mobile computer 15.2 cm (6") 2160 x 1080 pixels Touchscreen 245 g Black
Specifications
60 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 15.2 cm (6") |
| Display resolution | 2160 x 1080 pixels |
| Display | LED |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 450 cd/m² |
| Display glass type | Gorilla Glass |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR5 |
| Flash memory | 128 GB |
| Flash memory type | UFS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2 GHz |
| Processor family | Qualcomm Dragonwing |
| Processor model | Q-6690 |
| Processor manufacturer | Qualcomm |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | Yes |
| Security algorithms | 104-bit WEP, 40-bit WEP, AES-CCMP, AES-GCMP, EAP-SIM, EAP-AKA, EAP-PWD, EAP-TLS, EAP-TTLS, EAP-GTC, MSCHAPv2, OWE, PEAP, TKIP, WPA, WPA-Enterprise, WPA-Personal, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPA3-Personal, WPA3-SAE, FIPS 140-3 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
| GLONASS | Yes |
| Galileo | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 16 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Built-in flash | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | stereo |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | Yes |
| Scanner type | 1D/2D |
| Phone function | Yes |
| Vibrating alert | Yes |
| International Protection (IP) code | IP65, IP68 |
| Push-to-Talk (PTT) | Yes |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Magnetometer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 245 g |
| Width | 78 mm |
| Depth | 12.5 mm |
| Height | 165 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3800 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
