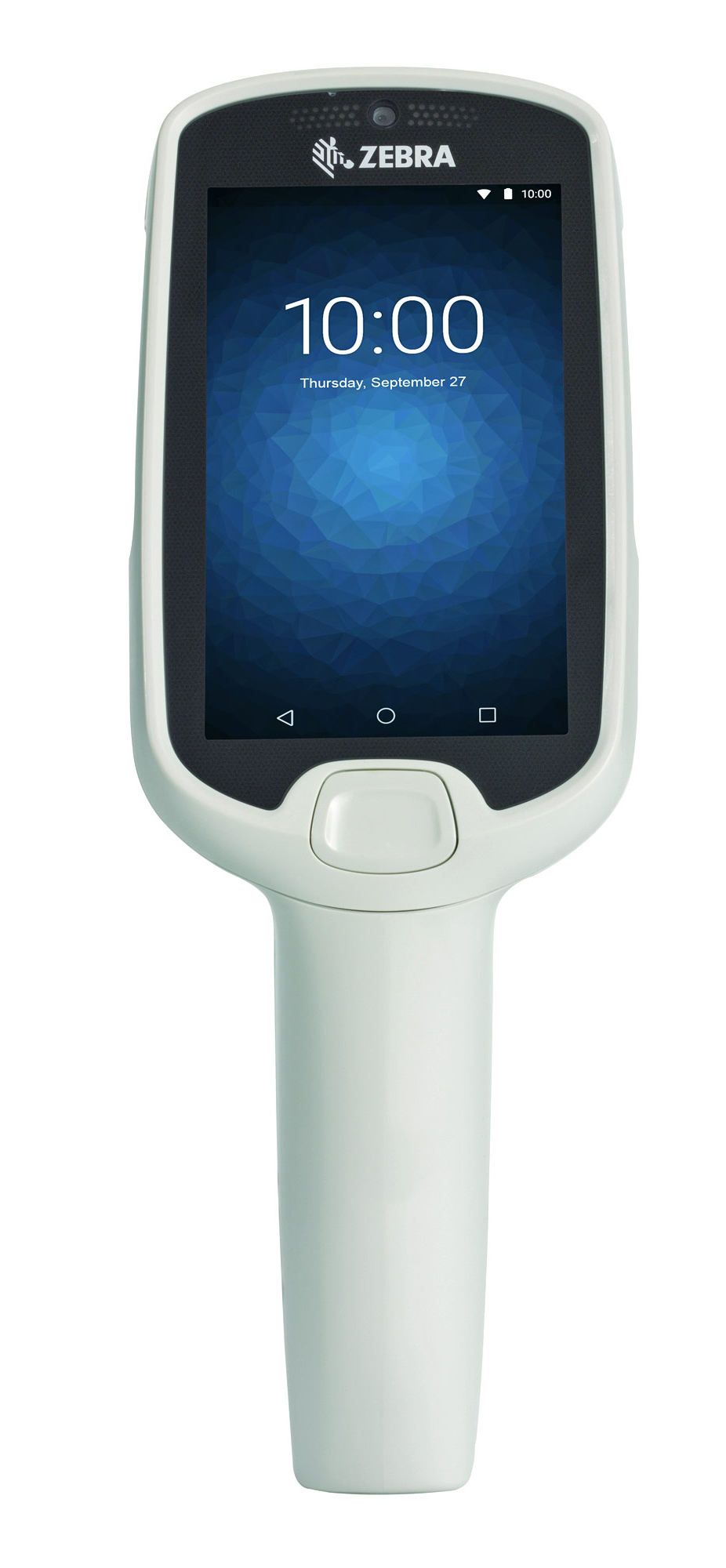

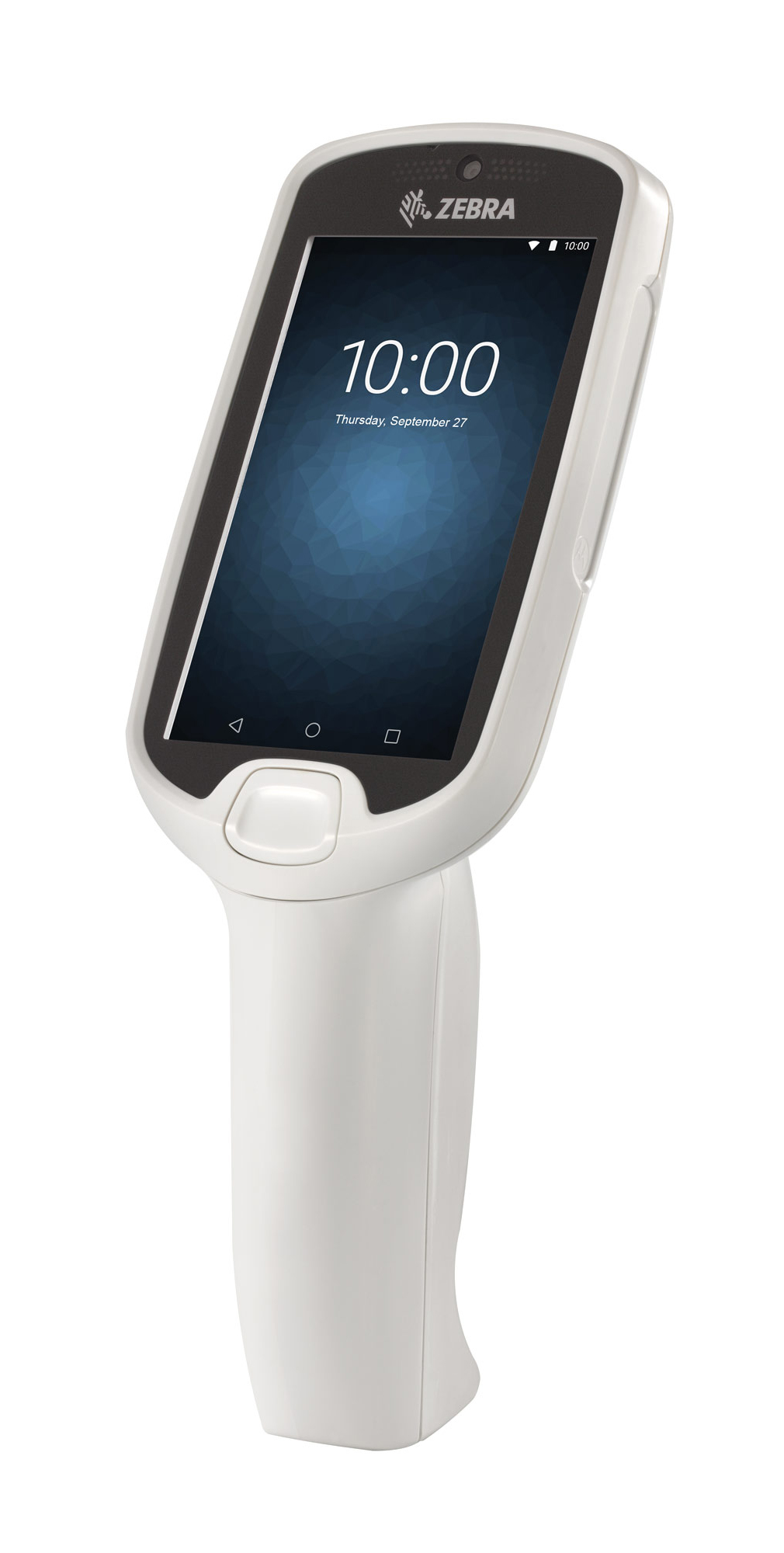

Zebra PS20 handheld mobile computer: Full Specifications

Overview

Display: 10.2 cm (4")
Processor: Snapdragon
Memory: 4 GB
Battery: 3500 mAh
OS: Android
Weight: 290 g

Brand: Zebra
Category: Handheld Mobile Computer
Model: PS20
Part numbers: KT-PS20J-B2G1A600, PS20J-P4G1RU00
EAN / UPC: 8596375202085
Also known as: Zebra PS20 handheld mobile computer 10.2 cm (4") Touchscreen 290 g Light grey

Specifications

52 specifications in 14 groups

Display

Specification	Value
Display diagonal	10.2 cm (4")
Touchscreen	Yes
Display glass type	Gorilla Glass

Memory

Specification	Value
Internal memory	4 GB
Flash memory	16 GB

Processor

Specification	Value
Processor frequency	2.2 GHz
Processor family	Snapdragon
Processor model	660
Processor manufacturer	Qualcomm
Number of cores	8
Built-in processor	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Data network	Not supported
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise

Camera

Specification	Value
Built-in camera	No

Audio

Specification	Value
Built-in microphone	Yes
Number of microphones	1
Speakers	Mono

Performance

Specification	Value
Product colour	Light grey
Barcode reader	Yes
Scanner type	1D/2D
Phone function	No
Drop proof	120 cm
Drop proof	Yes
Handle(s)	Yes
LED indicators	Yes
Push-to-Talk (PTT)	Yes
Certification	WFA

Sensors

Specification	Value
Accelerometer	No
Gyroscope	No
Proximity sensor	No

Software

Specification	Value
Operating system installed	Android
Operating system version	11
Operating system upgradeable	Yes

Weight & dimensions

Specification	Value
Weight	290 g
Width	78.6 mm
Depth	218 mm
Height	75 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Thermal shock	-20 - 70 °C

Technical details

Specification	Value
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV

Battery

Specification	Value
Battery capacity	3500 mAh
Battery technology	Lithium-Ion (Li-Ion)

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
Quantity per pack	10 pc(s)
