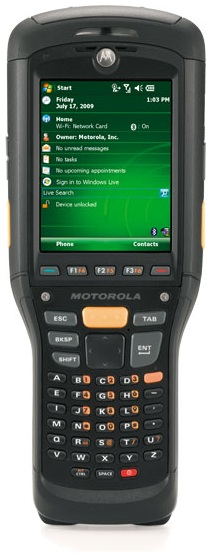

MC9596 handheld mobile computer
9.4 cm (3.7") 640 x 480 pixels Touchscreen 623 g Black
Model MC9596Part no. MC9596-KCABAC00000EAN 5712505597361
48 specifications
- Display9.4 cm (3.7")
- Resolution640 x 480 pixels
- ProcessorPXA 320
- Memory0.256 GB
- Camera3 MP
- Battery4800 mAh
Overview
- Display
- 9.4 cm (3.7")
- Resolution
- 640 x 480 pixels
- Processor
- PXA 320
- Memory
- 0.256 GB
- Camera
- 3 MP
- Battery
- 4800 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC9596
- Part numbers
- MC9596-KCABAC00000, MC9596-KDABAC00000, MC9596-KAAEAB00100, MC9596-KBAEAC00100, MC9596-KCAEAC00100, MC9596-KCAEAD00100 +15 more
- EAN / UPC
- 5712505597361, 4054318748662, 5711045964084, 4054318748679 +3 more
- Also known as
- Zebra MC9596 handheld mobile computer 9.4 cm (3.7") 640 x 480 pixels Touchscreen 623 g Black
Specifications
48 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 9.4 cm (3.7") |
| Display resolution | 640 x 480 pixels |
| Display | TFT |
| Touchscreen | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.256 GB |
| Internal memory type | RAM |
| Flash memory | 1 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.806 GHz |
| Processor family | PXA 320 |
| Processor manufacturer | Marvell |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Data network | GSM, HSDPA |
| Operating frequency | 850, 900, 1800, 1900, 2100 MHz |
| Security algorithms | 802.1x RADIUS, CCX v4, EAP-TLS, FIPS 140-2, LEAP, PEAP, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 3 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Second camera | No |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Interface | USB 1.1/2.0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | Yes |
| Vibrating alert | Yes |
| Certification | IEC, UL, CSA, EN, RoHS, FCC, RSS-210, ICES |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Mobile 6.0 |
Power
| Specification | Value |
|---|---|
| Standby time | 150 h |
| Talk time | 8 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 623 g |
| Width | 88.9 mm |
| Depth | 50.8 mm |
| Height | 233.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -4 - 122 °F |
| Relative humidity | 5 - 95% |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4800 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
