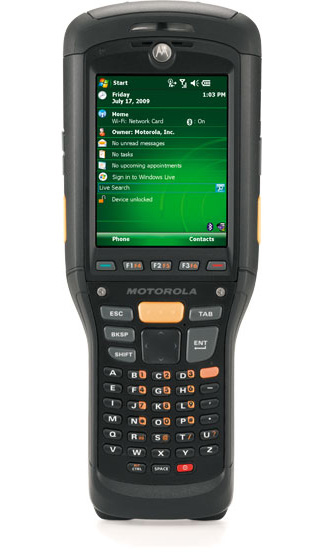

Zebra Motorola MC9590-K handheld mobile computer: Full Specifications

Overview

Display: 9.4 cm (3.7")
Resolution: 640 x 480 pixels
Processor: PXA 320
Memory: 0.256 GB
Battery: 4800 mAh
OS: Windows Mobile 6.5

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC9590-K
Part numbers: MC9590-KA0DAJ00100, MC9590-KA0DAG00100, MC9590-KB0DAG00100
Also known as: Motorola MC9590-K handheld mobile computer 9.4 cm (3.7") 640 x 480 pixels Touchscreen 623 g Black

Specifications

40 specifications in 14 groups

Display

Specification	Value
Display diagonal	9.4 cm (3.7")
Display resolution	640 x 480 pixels
Display	TFT
Touchscreen	Yes

Memory

Specification	Value
Internal memory	0.256 GB
Internal memory type	RAM
Maximum memory card size	32 GB
ROM capacity	1024 MB

Processor

Specification	Value
Processor frequency	0.806 GHz
Processor family	PXA 320
Processor manufacturer	Marvell

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	2.1+EDR
Security algorithms	802.1x RADIUS, CCX v4, EAP, EAP-TLS, EAP-TTLS, FIPS 140-2, LEAP, MD5, PEAP, SSL/TLS, WPA2

GPS Performance

Specification	Value
GPS (satellite)	Yes

Ports & interfaces

Specification	Value
Infrared data port	Yes

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
RFID reader	No
Phone function	No
Keyboard layout	ABC
LED indicators	Yes
Certification	UL, CSA, EN, IEC, FCC, RoHS

Software

Specification	Value
Operating system installed	Windows Mobile 6.5

Weight & dimensions

Specification	Value
Weight	623 g
Dimensions (WxDxH)	88.9 x 50.8 x 233.6 mm
Width	88.9 mm
Depth	50.8 mm
Height	233.6 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-4 - 122 °F
Relative humidity	5 - 95%

Wireless LAN features

Specification	Value
Wireless technology	Wi-Fi

System requirements

Specification	Value
Compatible operating systems	Windows Mobile 6.5

Technical details

Specification	Value
Supported network protocols	IPv6

Battery

Specification	Value
Battery capacity	4800 mAh
Battery technology	Lithium-Ion (Li-Ion)
