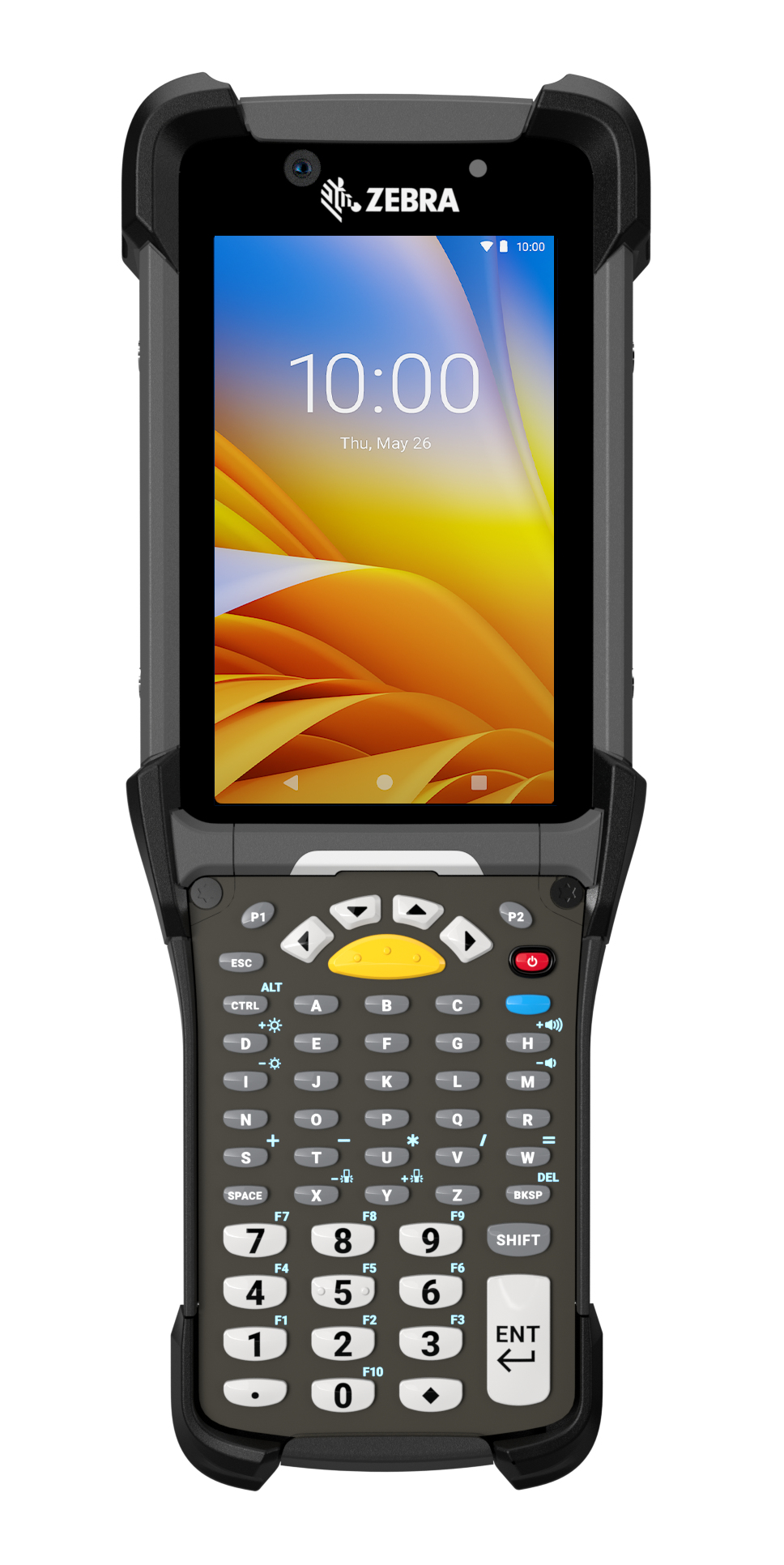

Zebra MC9300 handheld mobile computer: Full Specifications

Overview

Display: 10.9 cm (4.3")
Resolution: 800 x 480 pixels
Processor: Snapdragon
Memory: 4 GB
Battery: 7000 mAh
OS: Android

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC9300
Part numbers: MC930P-GSBDG4RW, MC930P-GFAEG4RW, MC930B-GSACG4RW, MC930B-GSADG4RW-U, MC930B-GSCDG4EA, MC930B-GSCEG4EA +34 more
EAN / UPC: 8596375203983, 8596375203976, 5706998813008, 8596375203969 +34 more
Also known as: Zebra MC9300 handheld mobile computer 10.9 cm (4.3") 800 x 480 pixels Touchscreen 765 g Black

Specifications

46 specifications in 14 groups

Display

Specification	Value
Display diagonal	10.9 cm (4.3")
Display resolution	800 x 480 pixels
Touch technology	Dual-touch
Touchscreen	Yes
Touchscreen type	Capacitive

Memory

Specification	Value
Internal memory	4 GB
Flash memory	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB

Processor

Specification	Value
Processor frequency	2.2 GHz
Processor family	Snapdragon
Processor model	660
Processor manufacturer	Qualcomm
Number of cores	8
Built-in processor	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Data network	Not supported

Audio

Specification	Value
Built-in microphone	Yes
Speakers	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
Drop proof	2.4 cm
Drop proof	Yes
International Protection (IP) code	IP65, IP67
LED indicators	Yes
Push-to-Talk (PTT)	Yes

Sensors

Specification	Value
Ambient light sensor	Yes
Accelerometer	Yes

Software

Specification	Value
Operating system installed	Android
Operating system version	8.1

Power

Specification	Value
Battery voltage	3.6 V

Weight & dimensions

Specification	Value
Weight	765 g
Width	88 mm
Depth	240 mm
Height	189 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Battery

Specification	Value
Battery capacity	7000 mAh
Battery technology	Lithium-Ion (Li-Ion)

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
