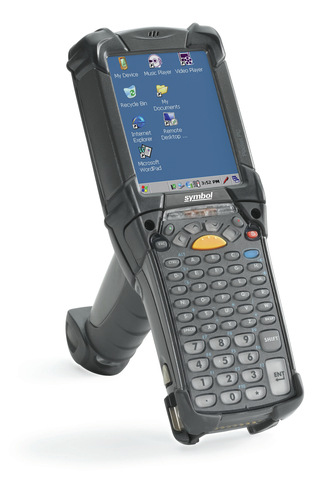

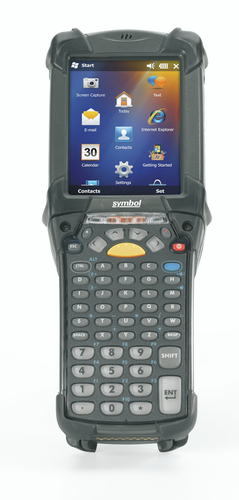

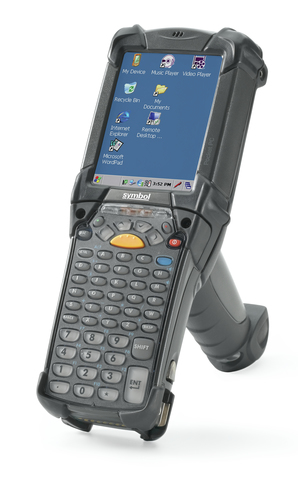

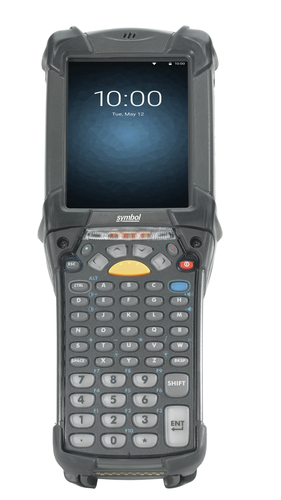

Zebra Motorola MC9200 handheld mobile computer: Full Specifications

Overview

Display: 9.4 cm (3.7")
Resolution: 640 x 480 pixels
Processor: Instruments OMAP
Memory: 0.512 GB
Battery: 2200 mAh
OS: Windows Embedded Handheld 6.5.3

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC9200
Part numbers: MC92N0-GJ0SYJQA6WR, MC92N0-G30SXERA5WR, MC92N0-G30SXGRA5WR, MC92N0-G30SXGYA5WR, MC92N0-G30SXJRA5WR, MC92N0-GJ0SYJYA6WR +34 more
EAN / UPC: 5711783936350, 702334648582, 682017470108, 702334649022 +56 more
Also known as: Motorola MC9200 handheld mobile computer 9.4 cm (3.7") 640 x 480 pixels Touchscreen 765 g Black

Specifications

39 specifications in 12 groups

Display

Specification	Value
Display diagonal	9.4 cm (3.7")
Display resolution	640 x 480 pixels
Display	TFT
Touchscreen	Yes

Memory

Specification	Value
Internal memory	0.512 GB
Internal memory type	DDR2
Flash memory	2 GB
Compatible memory cards	SDHC
Maximum memory card size	32 GB

Processor

Specification	Value
Processor frequency	1 GHz
Processor family	Instruments OMAP
Processor manufacturer	Texas Instruments
Built-in processor	OMAP 4

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	2.1+EDR
Data network	Not supported
Security algorithms	802.1x RADIUS, CCX v4, EAP, EAP-TLS, EAP-TTLS, FIPS 140-2, LEAP, MD5, PEAP, WPA2, WPA2-AES

GPS Performance

Specification	Value
GPS (satellite)	No

Camera

Specification	Value
Built-in camera	No

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
RFID reader	No
Phone function	No
Keyboard layout	Alphanumeric
LED indicators	Yes
Certification	UL, CSA, EN, FCC, RSS, ICES/FDA, RoHS

Software

Specification	Value
Operating system installed	Windows Embedded Handheld 6.5.3

Power

Specification	Value
Power supply	15.8 W

Weight & dimensions

Specification	Value
Weight	765 g
Width	91 mm
Depth	231 mm
Height	193 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Battery

Specification	Value
Battery capacity	2200 mAh
Battery technology	Lithium-Ion (Li-Ion)
