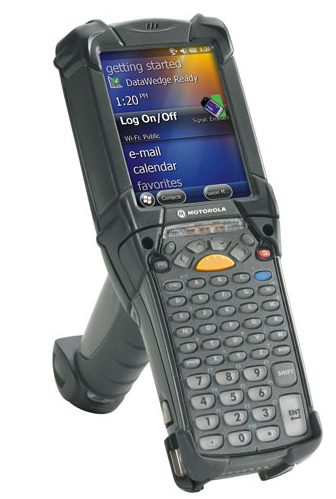

Motorola MC9190 handheld mobile computer
9.4 cm (3.7") 640 x 480 pixels Touchscreen 765 g Black
Model MC9190Part no. MC9190-GA0SWEYC6WR
32 specifications
- Display9.4 cm (3.7")
- Resolution640 x 480 pixels
- Memory0.256 GB
- Battery2200 mAh
- OSWindows Embedded CE 6.0
- Weight765 g
Overview
- Display
- 9.4 cm (3.7")
- Resolution
- 640 x 480 pixels
- Memory
- 0.256 GB
- Battery
- 2200 mAh
- OS
- Windows Embedded CE 6.0
- Weight
- 765 g
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC9190
- Part number
- MC9190-GA0SWEYC6WR
- Also known as
- Motorola MC9190 handheld mobile computer 9.4 cm (3.7") 640 x 480 pixels Touchscreen 765 g Black
Specifications
32 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 9.4 cm (3.7") |
| Display resolution | 640 x 480 pixels |
| Display | TFT |
| Touchscreen | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.256 GB |
| Internal memory type | RAM |
| Flash memory | 1 GB |
| Compatible memory cards | MMC, SD |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.806 GHz |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Security algorithms | CCX v4, EAP-TLS, FIPS 140-2, LEAP, PEAP, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | No |
| Certification | EN 60825-1, IEC 60825-1, IEC 2/FDAII; RoHS; EN 301 489-1, EN 301 489-17, EN55022 B, EN55024; EN 62311, EN50371; C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL / cUL 60950-1 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded CE 6.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 765 g |
| Width | 91 mm |
| Depth | 193 mm |
| Height | 231 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -4 - 122 °F |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2200 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
