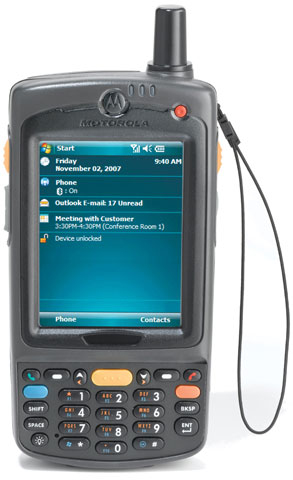

MC7596 handheld mobile computer
8.89 cm (3.5") 640 x 480 pixels 422 g Grey
Model MC7596Part no. MC7596-PZCSUQWAAWR
40 specifications
- Display8.89 cm (3.5")
- Resolution640 x 480 pixels
- Memory0.128 GB
- Camera2 MP
- Battery3600 mAh
- ConnectivityRS232, USB 1.1
Overview
- Display
- 8.89 cm (3.5")
- Resolution
- 640 x 480 pixels
- Memory
- 0.128 GB
- Camera
- 2 MP
- Battery
- 3600 mAh
- Connectivity
- RS232, USB 1.1
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC7596
- Part numbers
- MC7596-PZCSUQWAAWR, MC7596-PZCSUQWA9WR, MC7596-PYCSUQWA9WR, MC7596-PYCSURWA9WR, MC7596-PZCSURWA9WR, MC7596-PZCSURWAAWR +2 more
- Also known as
- Zebra MC7596 handheld mobile computer 8.89 cm (3.5") 640 x 480 pixels 422 g Grey
Specifications
40 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.89 cm (3.5") |
| Display resolution | 640 x 480 pixels |
| Display | TFT |
| Touchscreen | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.128 GB |
| Flash memory | 0.512 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.624 GHz |
| Built-in processor | PXA270 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Data network | 3G, GSM, HSDPA |
| Networking features | Ethernet, WLAN |
| Security algorithms | 128-bit WEP, WPA-AES, WPA-TKIP, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
| GPS receiver | SiRFstarIII |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 2 MP |
| Auto focus | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Interface | RS232, USB 1.1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | Yes |
| Keyboard layout | QWERTY |
| Certification | RoHS, FCC Part 2, FCC OET, RSS-102, EN 50360 |
Power
| Specification | Value |
|---|---|
| Standby time | 150 h |
| Talk time | 5 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 422 g |
| Width | 84 mm |
| Depth | 44 mm |
| Height | 152.4 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 14 - 122 °F |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3600 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
