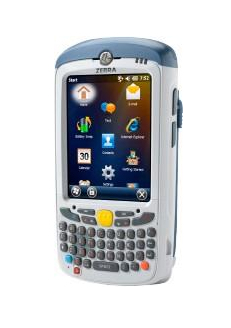

MC55E0-HM0S3QQA9US-U handheld mobile computer
8.89 cm (3.5") 640 x 480 pixels Touchscreen 365 g Blue, White
Model MC55E0-HM0S3QQA9US-U
50 specifications
- Display8.89 cm (3.5")
- Resolution640 x 480 pixels
- ProcessorOMAP 4
- Memory0.512 GB
- Camera8 MP
- Battery3600 mAh
Overview
- Display
- 8.89 cm (3.5")
- Resolution
- 640 x 480 pixels
- Processor
- OMAP 4
- Memory
- 0.512 GB
- Camera
- 8 MP
- Battery
- 3600 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC55E0-HM0S3QQA9US-U
- Part number
- MC55E0-HM0S3QQA9US-U
- Also known as
- Zebra MC55E0-HM0S3QQA9US-U handheld mobile computer 8.89 cm (3.5") 640 x 480 pixels Touchscreen 365 g Blue, White
Specifications
50 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.89 cm (3.5") |
| Display resolution | 640 x 480 pixels |
| Display | LED |
| Touchscreen | Yes |
| Touchscreen type | Resistive |
| External display | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.512 GB |
| Flash memory | 2 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.8 GHz |
| Processor family | OMAP 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Internal modem | No |
| Security algorithms | AES, CCX v4, FIPS 140-2, LEAP, PEAP, SSL/TLS, TKIP, TTLS, WEP, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 8 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Second camera | No |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Infrared data port | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Blue, White |
| Barcode reader | Yes |
| Linear (1D) barcodes supported | Code 39 |
| Vibrating alert | Yes |
| Drop proof | 180 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP64 |
| Keyboard layout | QWERTY |
| LED indicators | Yes |
| Certification | UL/cUL 60950-1, IEC/EN60950-1 |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Handheld 6.5 |
Power
| Specification | Value |
|---|---|
| Battery voltage | 3.7 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 365 g |
| Width | 78 mm |
| Depth | 37 mm |
| Height | 149 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3600 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
