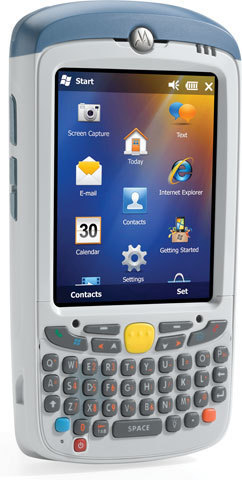

Zebra Motorola MC55A0-HC handheld mobile computer: Full Specifications

Overview

Display: 8.89 cm (3.5")
Resolution: 640 x 480 pixels
Memory: 0.256 GB
Camera: 3.2 MP
Battery: 3600 mAh
Connectivity: USB 1.1

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC55A0-HC
Part numbers: MC55A0-H80SWRQA9WR, MC55A0-H70SWQQA9WR, MC55A0-H70SWRQA9WR
EAN / UPC: 5711783912927, 682017472003, 4054318302277, 5054484332169 +2 more
Also known as: Motorola MC55A0-HC handheld mobile computer 8.89 cm (3.5") 640 x 480 pixels Touchscreen 338 g

Specifications

38 specifications in 14 groups

Display

Specification	Value
Display diagonal	8.89 cm (3.5")
Display resolution	640 x 480 pixels
Touchscreen	Yes

Memory

Specification	Value
Internal memory	0.256 GB
Internal memory type	RAM
Flash memory	1 GB
Compatible memory cards	SDHC

Processor

Specification	Value
Processor frequency	0.806 GHz

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	2.1+EDR
Networking features	WLAN, WMM
Security algorithms	CCX v4, FIPS 140-2, LEAP, PEAP, TKIP, WPA2

GPS Performance

Specification	Value
GPS (satellite)	No

Camera

Specification	Value
Built-in camera	Yes
Rear camera resolution (numeric)	3.2 MP
Auto focus	Yes

Audio

Specification	Value
Built-in microphone	Yes
Speakers	Yes
Audio included	Yes

Ports & interfaces

Specification	Value
Interface	USB 1.1

Performance

Specification	Value
Barcode reader	Yes
RFID reader	No
Phone function	No
Keyboard layout	QWERTY
Certification	FCC 15.247, 15.407, RSS-210, RSS 310, EN 300 328, EN 300 440-2, EN 301 893, ARIB STD-T33, ARIB STD-T66, ARIB STD-T70 & T71, AS/NZS 4268; FCC 15 B, ICES 003 B, EN55022 B, EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 60601-1-2; IEC 2/FDA ll IEC60825-1/EN 60825-1

Software

Specification	Value
Operating system installed	Windows Mobile 6.5

Weight & dimensions

Specification	Value
Weight	338 g
Width	77 mm
Depth	28 mm
Height	147 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	14 - 122 °F

Battery

Specification	Value
Battery capacity	3600 mAh
Battery technology	Lithium-Ion (Li-Ion)

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
