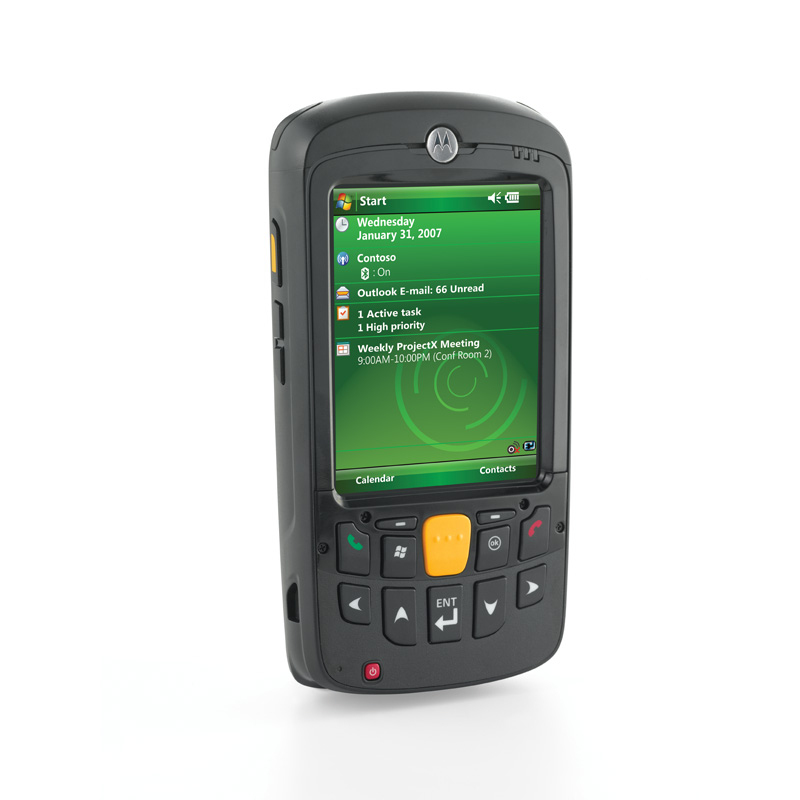

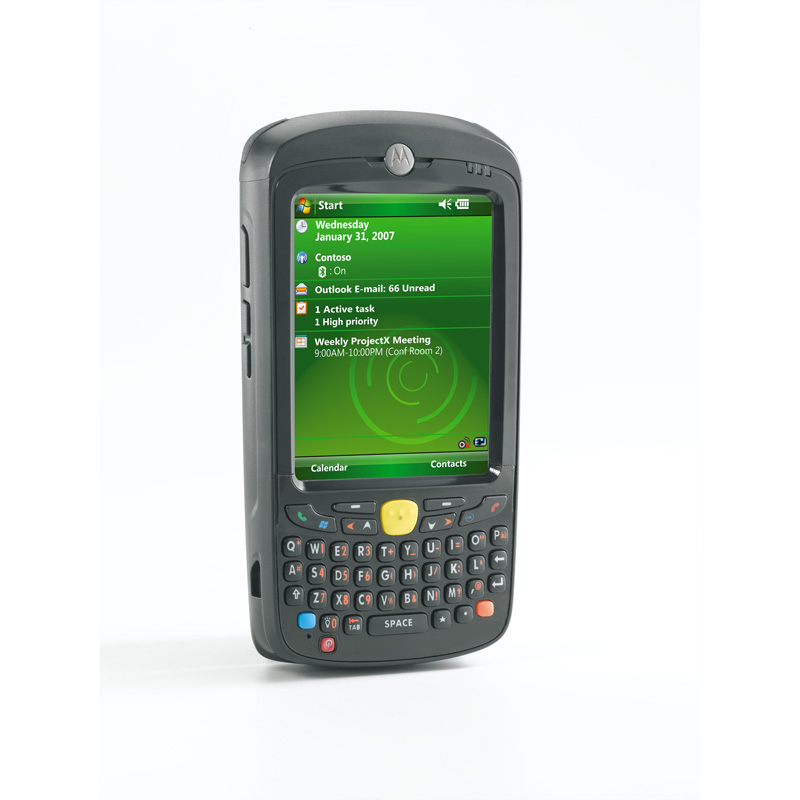

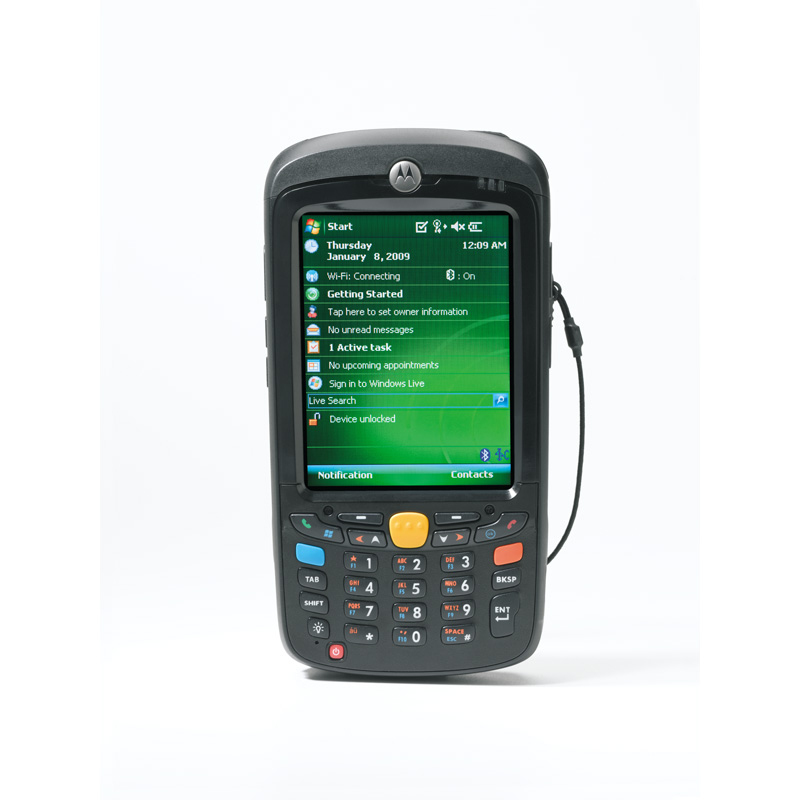

MC5590 handheld mobile computer
8.89 cm (3.5") 320 x 240 pixels Touchscreen 315 g Black
Model MC5590Part no. MC5590-P30DUNQA7WR
39 specifications
- Display8.89 cm (3.5")
- Resolution320 x 240 pixels
- Memory0.128 GB
- Camera2 MP
- Battery2400 mAh
- ConnectivityUSB 1.1
Overview
- Display
- 8.89 cm (3.5")
- Resolution
- 320 x 240 pixels
- Memory
- 0.128 GB
- Camera
- 2 MP
- Battery
- 2400 mAh
- Connectivity
- USB 1.1
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC5590
- Part numbers
- MC5590-P30DUNQA7WR, MC5590-P40DURQA7WR, MC5590-PU0DUQQA7WR, MC5590-P40DUQQA7WR, MC5590-P30DURQA9WR, MC5590-P30DURQA7WR +11 more
- Also known as
- Zebra MC5590 handheld mobile computer 8.89 cm (3.5") 320 x 240 pixels Touchscreen 315 g Black
Specifications
39 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.89 cm (3.5") |
| Display resolution | 320 x 240 pixels |
| Display | TFT |
| Touchscreen | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.128 GB |
| ROM capacity | 512 MB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.52 GHz |
| Built-in processor | PXA270 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Networking features | WLAN, WPAN |
| Security algorithms | 128-bit WEP, EAP, WPA, WPA-AES, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 2 MP |
| Auto focus | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Headphone outputs | 1 |
| Interface | USB 1.1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | No |
| Keyboard layout | Numeric |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Standby time | 100 h |
| Talk time | 6 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 315 g |
| Width | 77 mm |
| Depth | 26 mm |
| Height | 147 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 14 - 122 °F |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2400 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
