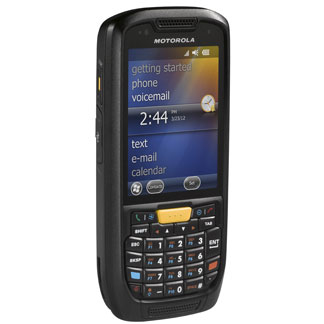

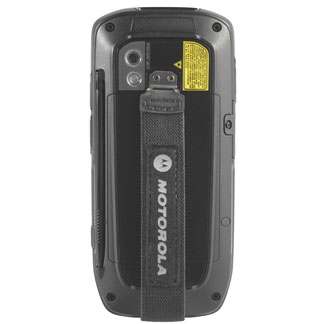

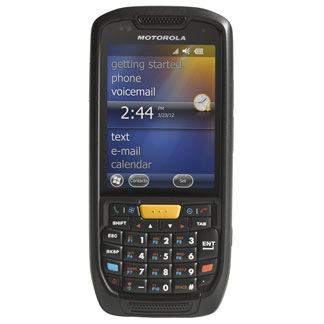

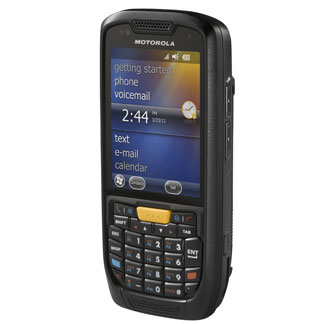

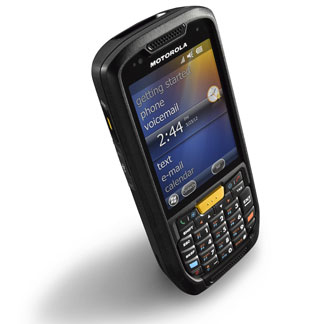

Zebra MC45 (Kit): Full Specifications

Overview

Display: 8.13 cm (3.2")
Resolution: 240 x 320 pixels
Processor: ARM11
Memory: 0.256 GB
Camera: 3.2 MP
Battery: 3080 mAh

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC45 (Kit)
Part numbers: KT-MC4597A-BSC, KT-MC4597A-TBLTP
EAN / UPC: 5711783151142
Also known as: Motorola MC45 (Kit) handheld mobile computer 8.13 cm (3.2") 240 x 320 pixels Touchscreen 247.4 g Black

Specifications

39 specifications in 14 groups

Display

Specification	Value
Display diagonal	8.13 cm (3.2")
Display resolution	240 x 320 pixels
Touchscreen	Yes

Memory

Specification	Value
Internal memory	0.256 GB
Internal memory type	RAM
Flash memory	1 GB
Compatible memory cards	MicroSD (TransFlash), SDHC
Maximum memory card size	32 GB

Processor

Specification	Value
Processor frequency	0.6 GHz
Processor family	ARM11

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	2.0+EDR
Data network	3.5G, Edge, GPRS, GSM, HSDPA
GSM bands supported	850,900,1800,1900 MHz
Security algorithms	128-bit WEP, 40-bit WEP, AES, CCX v4, FIPS 140-2, LEAP, PEAP, TKIP, WPA

GPS Performance

Specification	Value
GPS (satellite)	Yes

Camera

Specification	Value
Built-in camera	Yes
Rear camera resolution (numeric)	3.2 MP
Auto focus	Yes
Built-in flash	Yes

Audio

Specification	Value
Built-in microphone	Yes

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
RFID reader	No
Phone function	Yes

Software

Specification	Value
Operating system installed	Windows Embedded Handheld 6.5.3 PE

Weight & dimensions

Specification	Value
Weight	247.4 g
Width	66 mm
Depth	25 mm
Height	142 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Packaging content

Specification	Value
Cables included	Micro-USB

Battery

Specification	Value
Battery capacity	3080 mAh
Battery technology	Lithium-Ion (Li-Ion)

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
