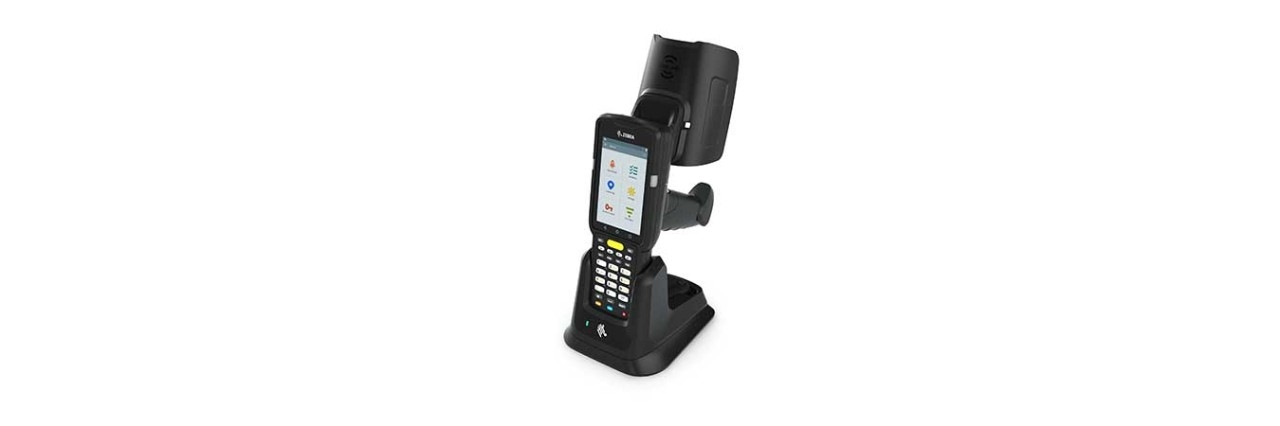

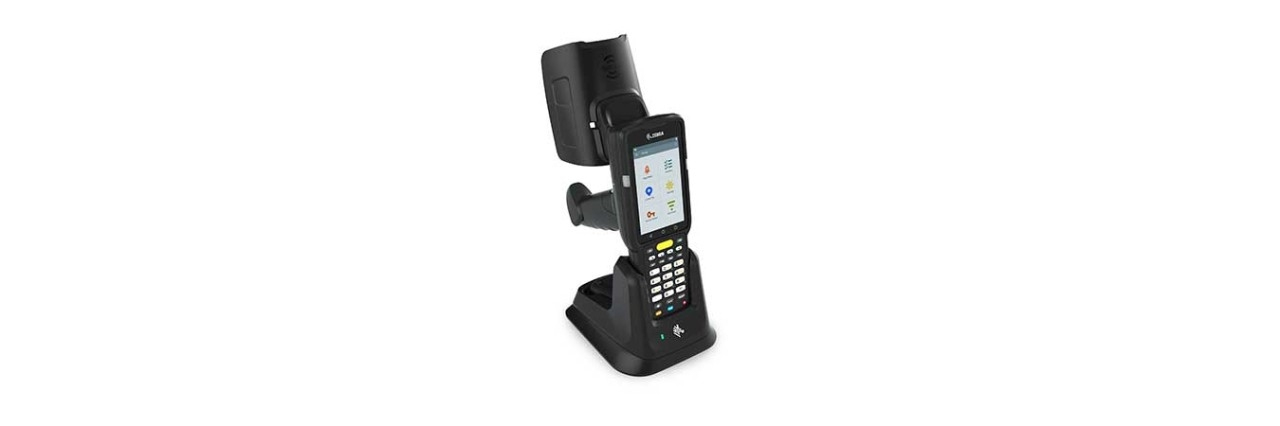

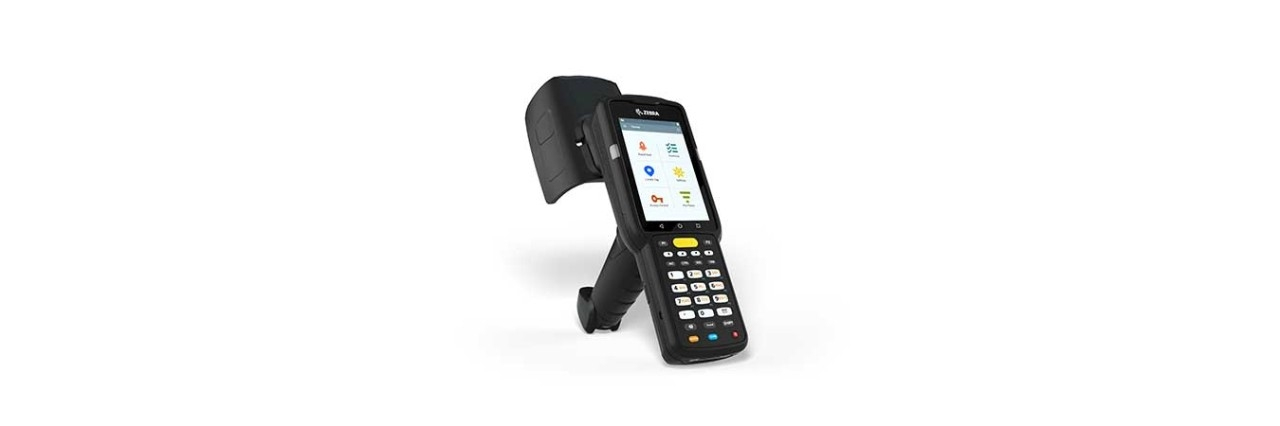

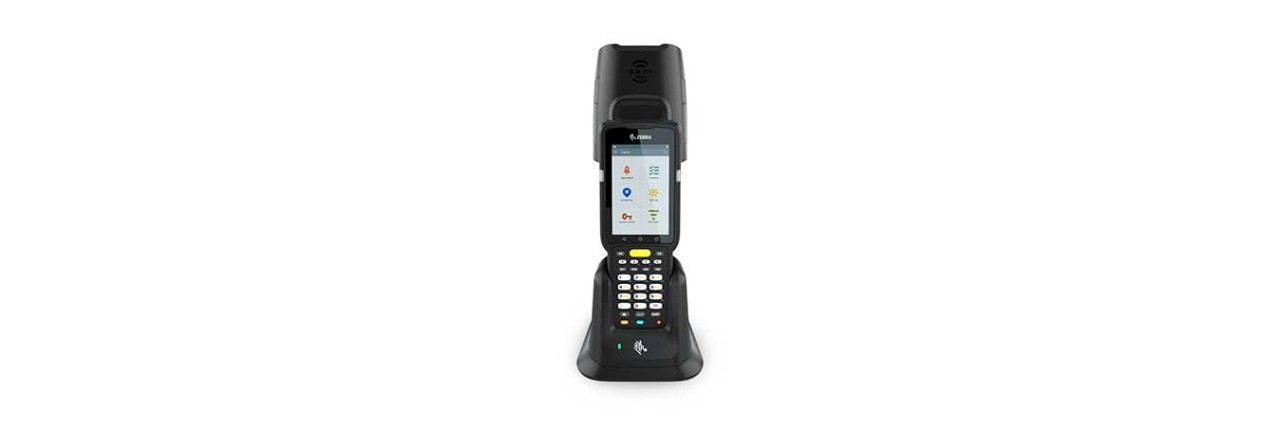

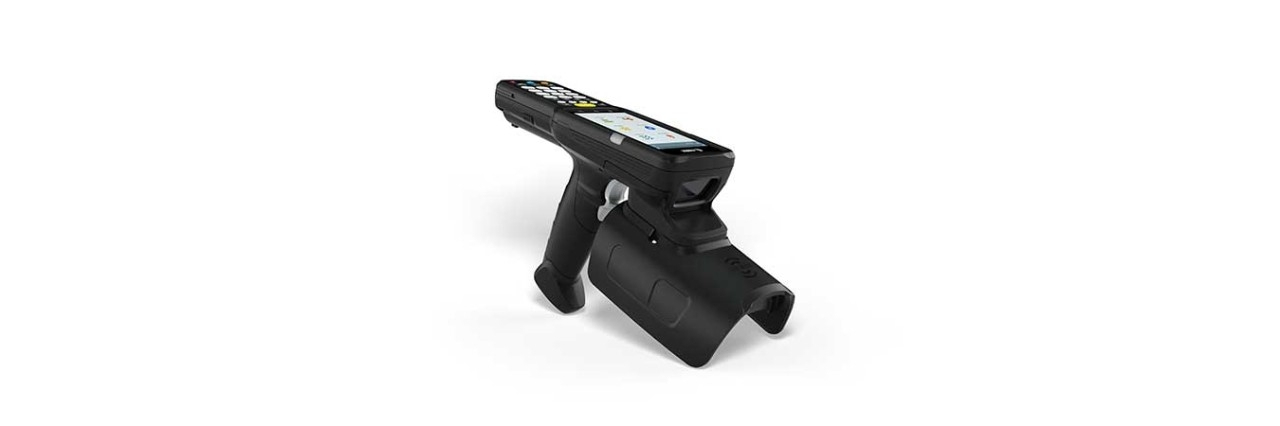

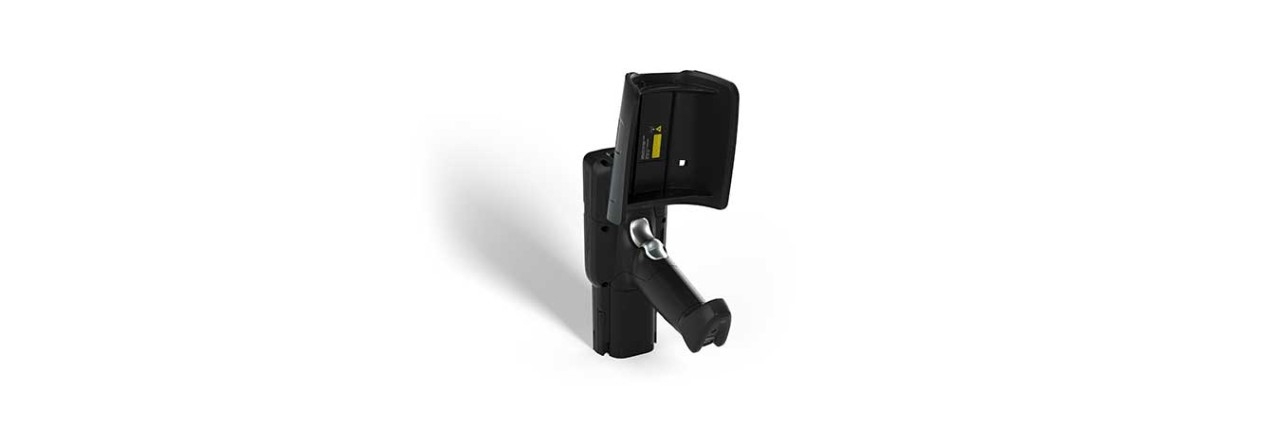

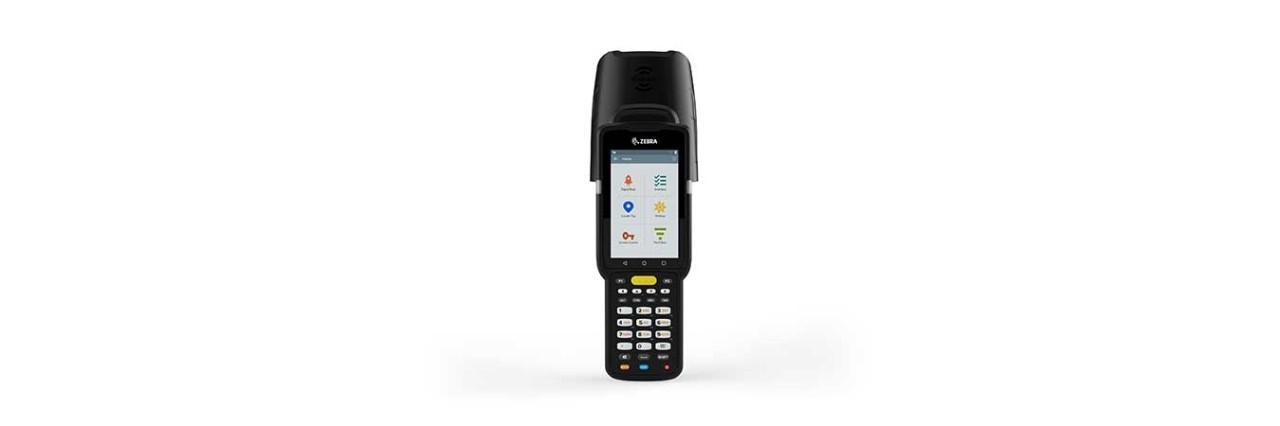

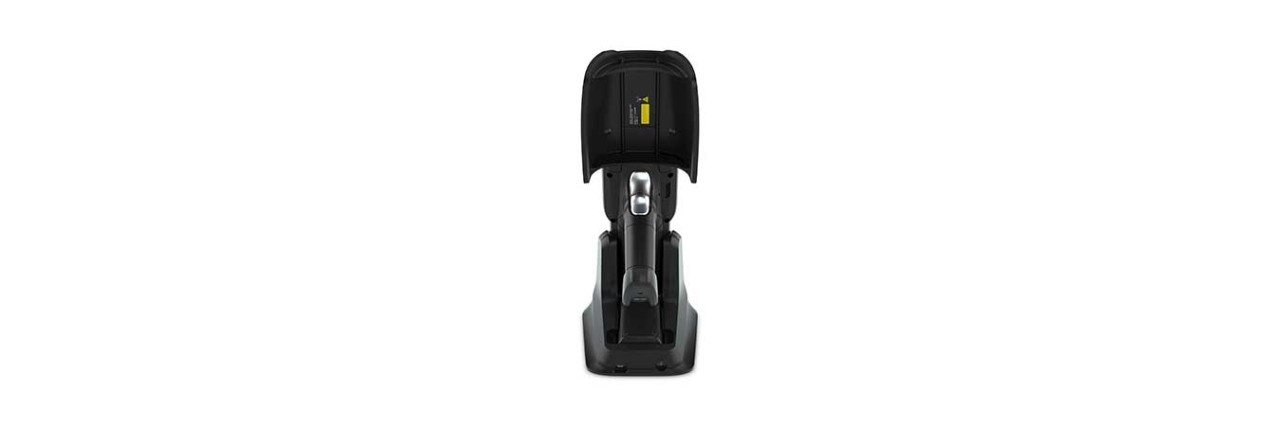

Zebra MC3390R handheld mobile computer: Full Specifications

Overview

Display: 10.2 cm (4")
Resolution: 800 x 480 pixels
Processor: Qualcomm
Memory: 4 GB
Battery: 5200 mAh
OS: Android

Brand: Zebra
Category: Handheld Mobile Computer
Model: MC3390R
Part numbers: MC339R-GE4HG4WR, MC339R-GF2HG4EU, MC339R-GF4HG4EU, MC339R-GF3HG4EU, MC339R-GE3HG4EU, MC339R-GE2HG4EU +2 more
EAN / UPC: 8596375203570, 8596375203624
Also known as: Zebra MC3390R handheld mobile computer 10.2 cm (4") 800 x 480 pixels Touchscreen 740 g Black

Specifications

41 specifications in 13 groups

Display

Specification	Value
Display diagonal	10.2 cm (4")
Display resolution	800 x 480 pixels
Touchscreen	Yes

Memory

Specification	Value
Internal memory	4 GB
Flash memory	32 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Processor

Specification	Value
Processor frequency	1.8 GHz
Processor family	Qualcomm
Processor manufacturer	Qualcomm
Built-in processor	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.1

Camera

Specification	Value
Built-in camera	No

Audio

Specification	Value
Speakers	stereo
Voice recording	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
RFID reader	Yes
Drop proof	150 cm
Drop proof	Yes
International Protection (IP) code	IP54
Keyboard layout	Alphanumeric
LED indicators	Yes
Push-to-Talk (PTT)	Yes

Sensors

Specification	Value
Accelerometer	Yes
Gyroscope	Yes

Software

Specification	Value
Operating system installed	Android
Operating system version	7.0

Weight & dimensions

Specification	Value
Weight	740 g
Width	96 mm
Depth	271 mm
Height	164 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Battery

Specification	Value
Battery capacity	5200 mAh
Battery technology	Lithium-Ion (Li-Ion)
