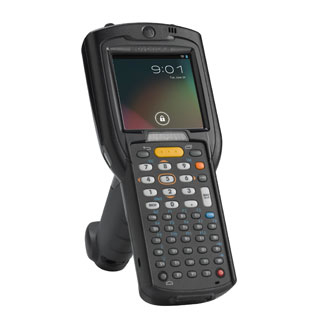

Motorola MC3200 handheld mobile computer
7.62 cm (3") 320 x 320 pixels Touchscreen 509 g Black
Model MC3200Part no. MC32N0-SI3HAHEIAEAN 311646491542
40 specifications
- Display7.62 cm (3")
- Resolution320 x 320 pixels
- ProcessorInstruments OMAP
- Memory0.512 GB
- Battery4800 mAh
- OSWindows Embedded Compact 7.0
Overview
- Display
- 7.62 cm (3")
- Resolution
- 320 x 320 pixels
- Processor
- Instruments OMAP
- Memory
- 0.512 GB
- Battery
- 4800 mAh
- OS
- Windows Embedded Compact 7.0
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC3200
- Part numbers
- MC32N0-SI3HAHEIA, MC32N0-GL4HCLE0A, MC32N0-SL4HCLE0A, MC32N0-RL3HCHEIA, MC32N0-GL3HCHEIA, MC32N0-GL3HCLE0A +34 more
- EAN / UPC
- 311646491542, 751492910598, 5712505506738, 5712505743096 +43 more
- Also known as
- Motorola MC3200 handheld mobile computer 7.62 cm (3") 320 x 320 pixels Touchscreen 509 g Black
Specifications
40 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Display resolution | 320 x 320 pixels |
| Display | TFT |
| Touchscreen | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.512 GB |
| Internal memory type | RAM |
| Flash memory | 2 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.8 GHz |
| Processor family | Instruments OMAP |
| Processor manufacturer | Texas Instruments |
| Built-in processor | OMAP4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Data network | Not supported |
| Security algorithms | 802.1x RADIUS, CCX v4, LEAP, MD5, PEAP, SSL/TLS, TKIP, WEP, WPA, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Headphone connectivity | 2.5 mm |
| RS-232 input ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | No |
| Keyboard layout | Alphanumeric |
| Certification | MIL-STD 810G, RoHS |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Compact 7.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 509 g |
| Width | 80.8 mm |
| Depth | 166 mm |
| Height | 192.7 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4800 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
