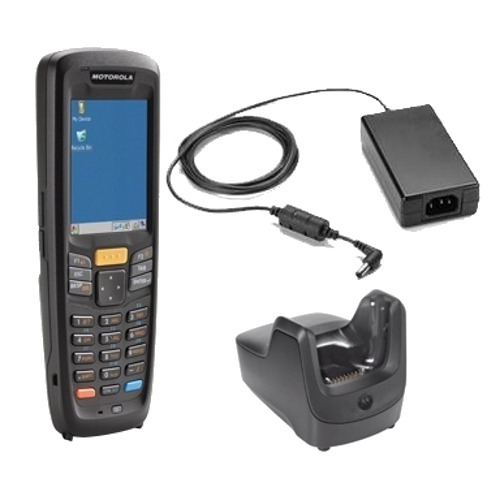

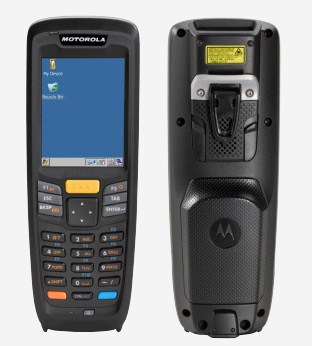

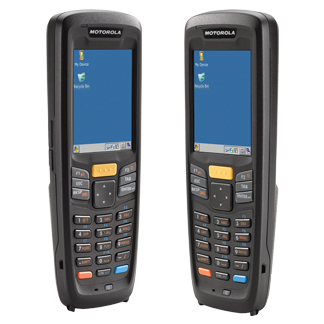

MC2100 Kit
Model MC2100 KitPart no. K-MC2100-CS01E-CRDEAN 4054842367766
39 specifications
- Display7.11 cm (2.8")
- Resolution320 x 240 pixels
- ProcessorPXA 320
- Memory0.128 GB
- Battery2400 mAh
- OSWindows Embedded CE 6.0 Core
Overview
- Display
- 7.11 cm (2.8")
- Resolution
- 320 x 240 pixels
- Processor
- PXA 320
- Memory
- 0.128 GB
- Battery
- 2400 mAh
- OS
- Windows Embedded CE 6.0 Core
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- MC2100 Kit
- Part number
- K-MC2100-CS01E-CRD
- EAN / UPC
- 4054842367766, 5712505471463
- Also known as
- Motorola MC2100 Kit handheld mobile computer 7.11 cm (2.8") 320 x 240 pixels 237.7 g Black
Specifications
39 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.11 cm (2.8") |
| Display resolution | 320 x 240 pixels |
| Display | LCD |
| Touchscreen | No |
| Display number of colours | 65536 colours |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.128 GB |
| Internal memory type | RAM |
| Flash memory | 0.256 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.624 GHz |
| Processor family | PXA 320 |
| Processor manufacturer | Marvell |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Data network | Not supported |
| Security algorithms | CCX v4, EAP, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Mono |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | No |
| International Protection (IP) code | IP54 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded CE 6.0 Core |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 237.7 g |
| Width | 60.9 mm |
| Depth | 34.1 mm |
| Height | 171.7 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2400 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
