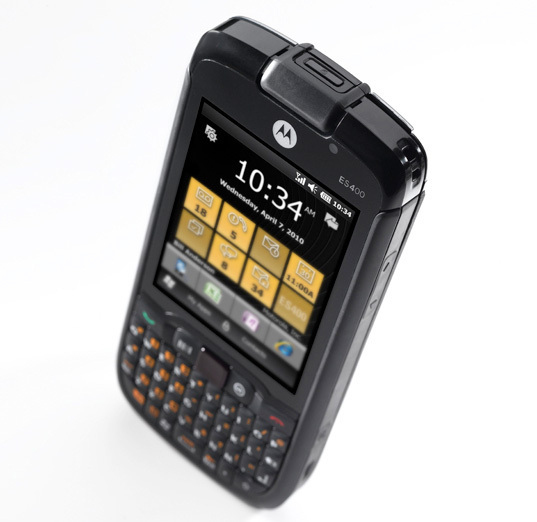

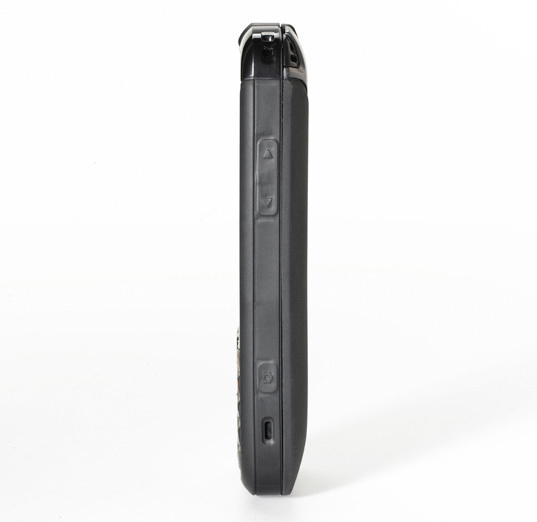

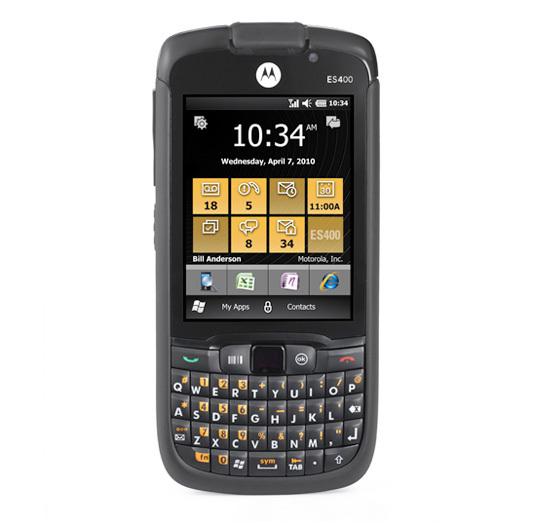

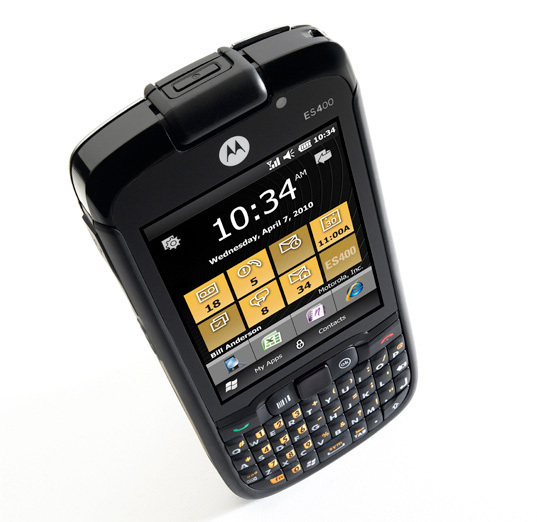

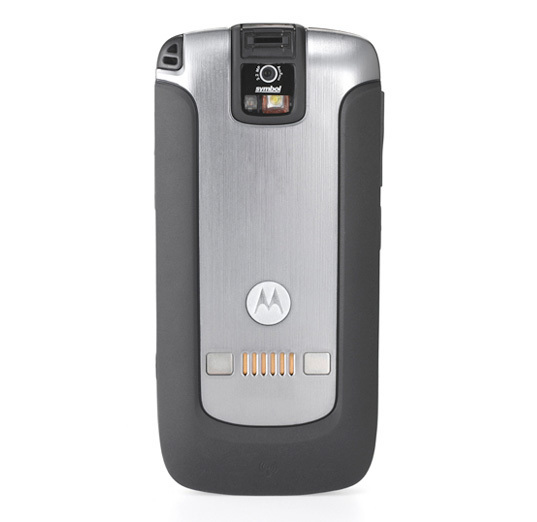

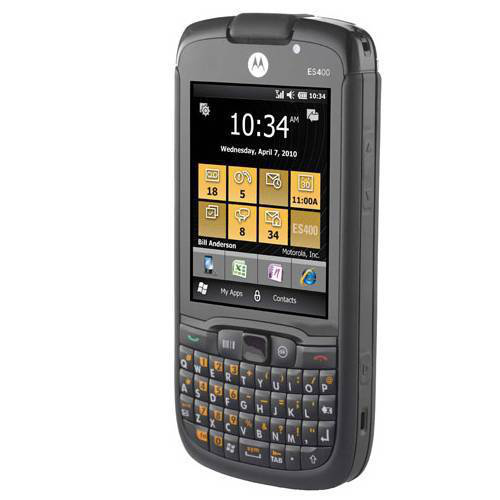

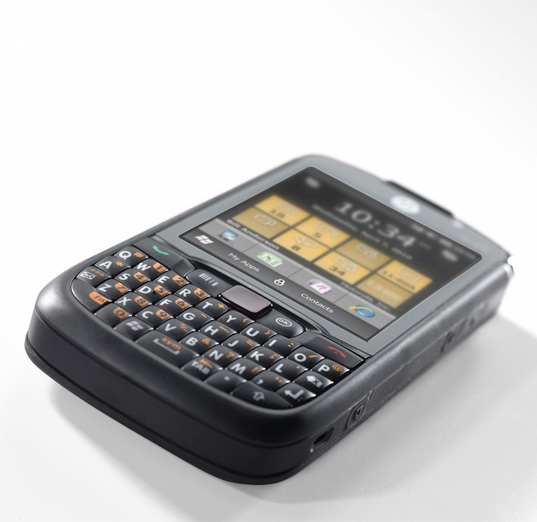

Motorola ES405B-0AS2 handheld mobile computer
7.62 cm (3") 640 x 480 pixels Touchscreen 156 g Black
Model ES405B-0AS2
48 specifications
- Display7.62 cm (3")
- Resolution640 x 480 pixels
- ProcessorARM11
- Memory0.256 GB
- Camera3.2 MP
- Battery1540 mAh
Overview
- Display
- 7.62 cm (3")
- Resolution
- 640 x 480 pixels
- Processor
- ARM11
- Memory
- 0.256 GB
- Camera
- 3.2 MP
- Battery
- 1540 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- ES405B-0AS2
- Part number
- ES405B-0AS2
- Also known as
- Motorola ES405B-0AS2 handheld mobile computer 7.62 cm (3") 640 x 480 pixels Touchscreen 156 g Black
Specifications
48 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Display resolution | 640 x 480 pixels |
| Display | TFT |
| Touchscreen | Yes |
| Display number of colours | 16.78 million colours |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.256 GB |
| Internal memory type | RAM |
| Flash memory | 1 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 0.6 GHz |
| Processor family | ARM11 |
| Built-in processor | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Data network | 3.5G, CDMA, Edge, GSM, HSDPA, HSUPA |
| WCDMA bands supported | 850,1900,2100 MHz |
| GSM bands supported | 850,900,1800,1900 MHz |
| Networking features | 2G, 3.5G |
| Security algorithms | 802.1x RADIUS, EAP-TLS, MD5, PEAP, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 3.2 MP |
| Auto focus | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Interface | micro USB 2.0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Barcode reader | Yes |
| RFID reader | No |
| Phone function | Yes |
| Multimedia Messaging Service (MMS) | Yes |
| Certification | IEC, UL, CSA, EN, RoHS, WEEE, FCC, RSS, AS/NZS, 3GPP TS, GFC, PTCRB, AS/ACIF, HAC, ICES, ASIB STD |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Mobile 6.5.3 |
Power
| Specification | Value |
|---|---|
| Standby time | 250 h |
| Talk time | 6 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 156 g |
| Width | 60.4 mm |
| Depth | 129 mm |
| Height | 16.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 40% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Relative humidity | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Input type | Stylus |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 1540 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
