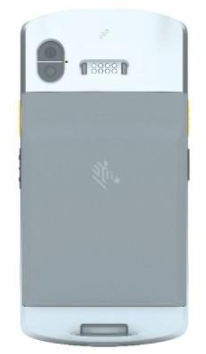

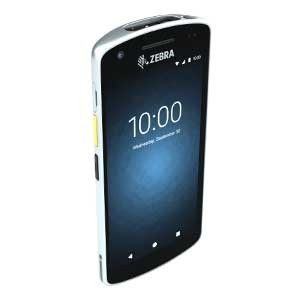

EC55 handheld mobile computer
12.7 cm (5") 720 x 1280 pixels Touchscreen 183 g Black, Grey, White
Model EC55Part no. EC55AK-21D141-NAEAN 8596375242876
53 specifications
- Display12.7 cm (5")
- Resolution720 x 1280 pixels
- ProcessorQualcomm
- Memory3 GB
- Camera13 MP
- Battery4180 mAh
Overview
- Display
- 12.7 cm (5")
- Resolution
- 720 x 1280 pixels
- Processor
- Qualcomm
- Memory
- 3 GB
- Camera
- 13 MP
- Battery
- 4180 mAh
- Brand
- Zebra
- Category
- Handheld Mobile Computer
- Model
- EC55
- Part numbers
- EC55AK-21D141-NA, EC55AK-11B112-NA, EC55AK-21D121-NA, EC55AK-21B222-NA, KT-EC551SCRD-A6, EC55BK-11B132-A6 +11 more
- EAN / UPC
- 8596375242876, 8596375242883, 8596375245723, 8596375245686 +9 more
- Also known as
- Zebra EC55 handheld mobile computer 12.7 cm (5") 720 x 1280 pixels Touchscreen 183 g Black, Grey, White
Specifications
53 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 12.7 cm (5") |
| Display resolution | 720 x 1280 pixels |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Flash memory | 32 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2.2 GHz |
| Processor family | Qualcomm |
| Processor model | SD660 |
| Number of cores | 8 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | GSM, LTE, UMTS |
| Near Field Communication (NFC) | Yes |
| Security algorithms | AES, EAP, EAP-TTLS, WPA, WPA2 |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
| GLONASS | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Built-in flash | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Speakers | Mono |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Headphone connectivity | USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey, White |
| RFID reader | Yes |
| Drop proof | 120 cm |
| Drop proof | Yes |
| International Protection (IP) code | IP67 |
| Push-to-Talk (PTT) | Yes |
Sensors
| Specification | Value |
|---|---|
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Magnetometer | Yes |
| Proximity sensor | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 10 |
| Operating system upgradeable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 183 g |
| Width | 76 mm |
| Depth | 11.8 mm |
| Height | 154.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4180 mAh |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
