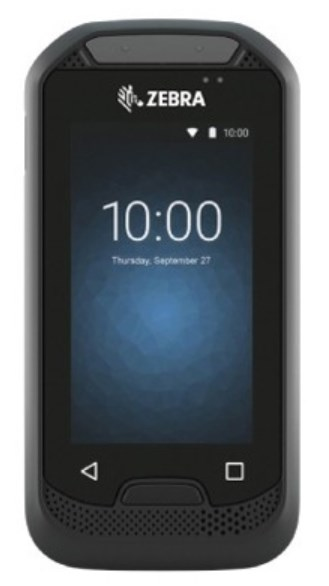

Zebra EC30 handheld mobile computer: Full Specifications

Overview

Display: 7.62 cm (3")
Resolution: 854 x 480 pixels
Processor: Snapdragon
Memory: 4 GB
Storage: 32 GB
Battery: 1200 mAh

Brand: Zebra
Category: Handheld Mobile Computer
Model: EC30
Part numbers: EC300K-1SA2AA6, EC30
EAN / UPC: 5706998911537, 8596375201439
Also known as: Zebra EC30 handheld mobile computer 7.62 cm (3") 854 x 480 pixels Touchscreen 110 g Black

Specifications

53 specifications in 16 groups

Display

Specification	Value
Display diagonal	7.62 cm (3")
Display resolution	854 x 480 pixels
Display	TFT
Touch technology	Dual-touch
Touchscreen	Yes
Touchscreen type	Capacitive

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR4
Compatible memory cards	Not supported
Total storage capacity	32 GB

Processor

Specification	Value
Processor frequency	2.2 GHz
Processor family	Snapdragon
Processor model	660
Processor manufacturer	Qualcomm
Number of cores	8
Built-in processor	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Security algorithms	AES, EAP-TLS, EAP-TTLS, PEAP, TKIP, WPA, WPA2

GPS Performance

Specification	Value
GPS (satellite)	No
Channels quantity	13 channels

Camera

Specification	Value
Built-in camera	No

Audio

Specification	Value
Speakers	Mono

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
Ethernet LAN (RJ-45) ports	1

Performance

Specification	Value
Product colour	Black
Barcode reader	Yes
RFID reader	No
Phone function	No
Drop proof	120 cm
Drop proof	Yes
International Protection (IP) code	IP54
Push-to-Talk (PTT)	Yes
Certification	WFA

Sensors

Specification	Value
Accelerometer	Yes
Gyroscope	Yes
Magnetometer	Yes

Software

Specification	Value
Operating system installed	Android
Operating system version	8.1

Power

Specification	Value
Battery type	Li-ion

Weight & dimensions

Specification	Value
Weight	110 g
Width	114 mm
Depth	14 mm
Height	57 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Battery

Specification	Value
Battery capacity	1200 mAh

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
