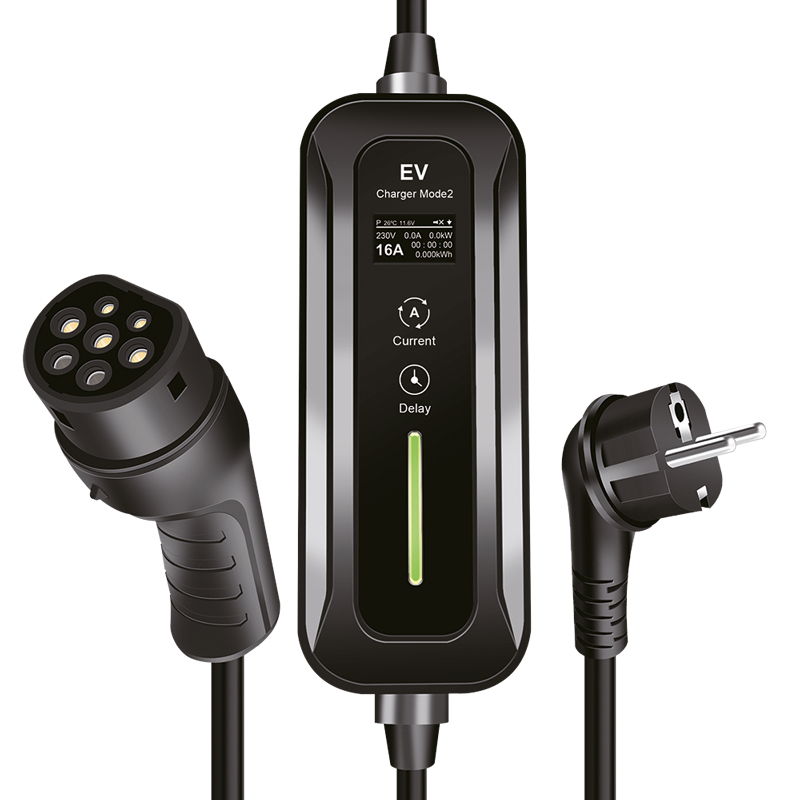

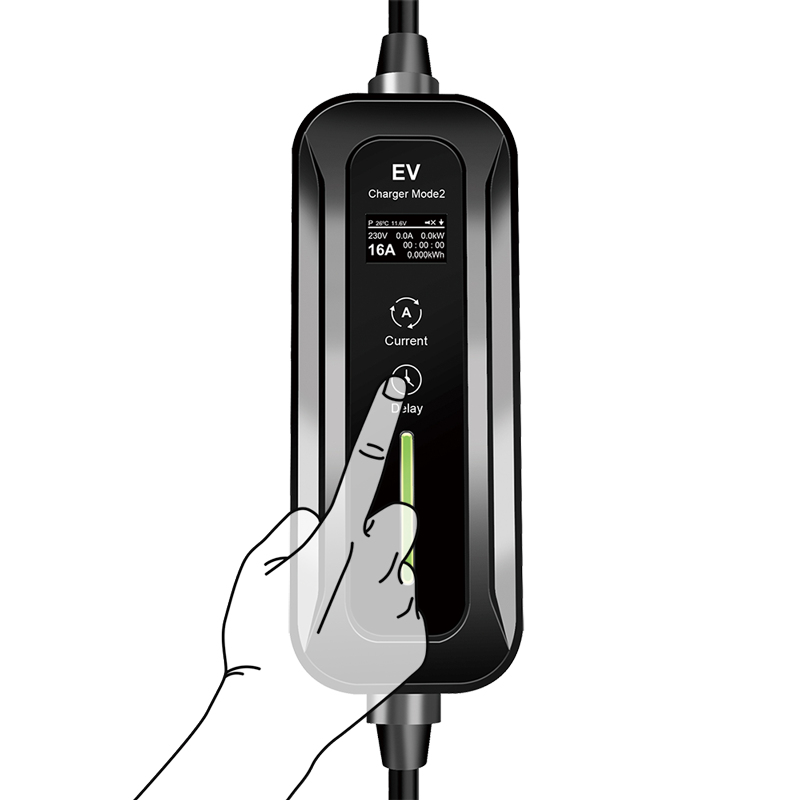

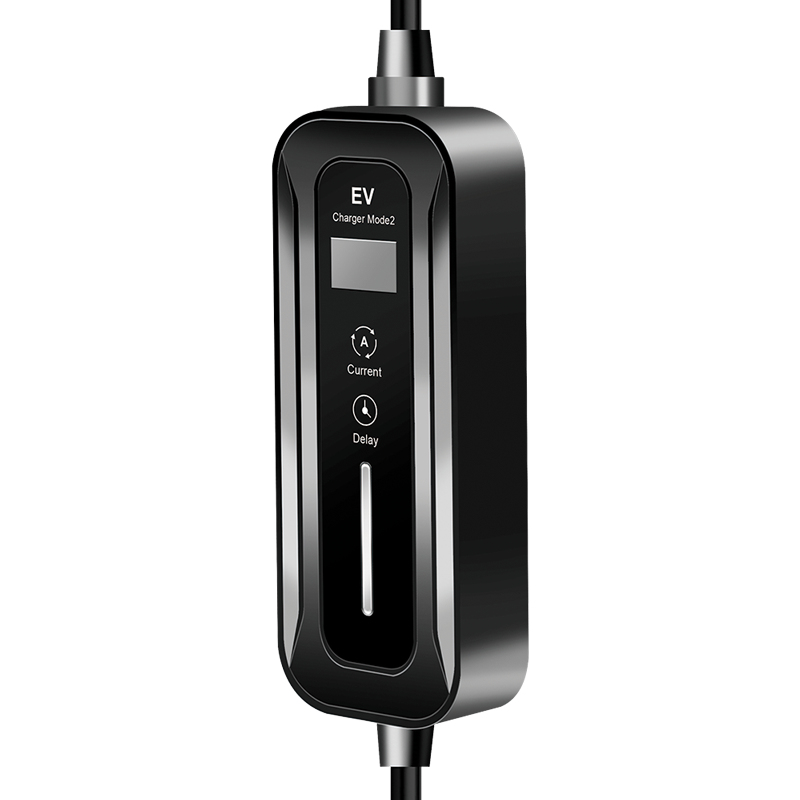

EVL0100A electric vehicle charging station Black Plastic Wall 1
Model EVL0100AEAN 4052792070682
21 specifications
- Weight1.9 kg
- ColourBlack
- Socket typeType E/F (CEE 7/7)
- Number of phases1
- Compliance certificatesCE
- Operating temperature (T-T)-30 - 50 °C
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Socket type
- Type E/F (CEE 7/7)
- Number of phases
- 1
- Compliance certificates
- CE
- Operating temperature (T-T)
- -30 - 50 °C
- Brand
- LogiLink
- Model
- EVL0100A
- Part number
- EVL0100A
- EAN / UPC
- 4052792070682
- Also known as
- LogiLink EVL0100A electric vehicle charging station Black Plastic Wall 1
Specifications
21 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Wall |
| Housing material | Plastic |
| Built-in display | No |
| Cable colour | Black |
Features
| Specification | Value |
|---|---|
| Socket type | Type E/F (CEE 7/7) |
| International Protection (IP) code | IP67 |
| Cross-section connection | 3 x 2.5 mm² |
| Vehicle connection plug | Type 2 |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Number of phases | 1 |
| Power source type | AC |
| Maximum charging power | 3700 W |
| Single-phase output voltage supported | 230 V |
| Minimum operating power (single-phase) | 3.7 kW |
| Maximum operating current per phase | 16 A |
| Power plug type | Type F |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Charging cable length | 5 m |
| Weight | 1.9 kg |
